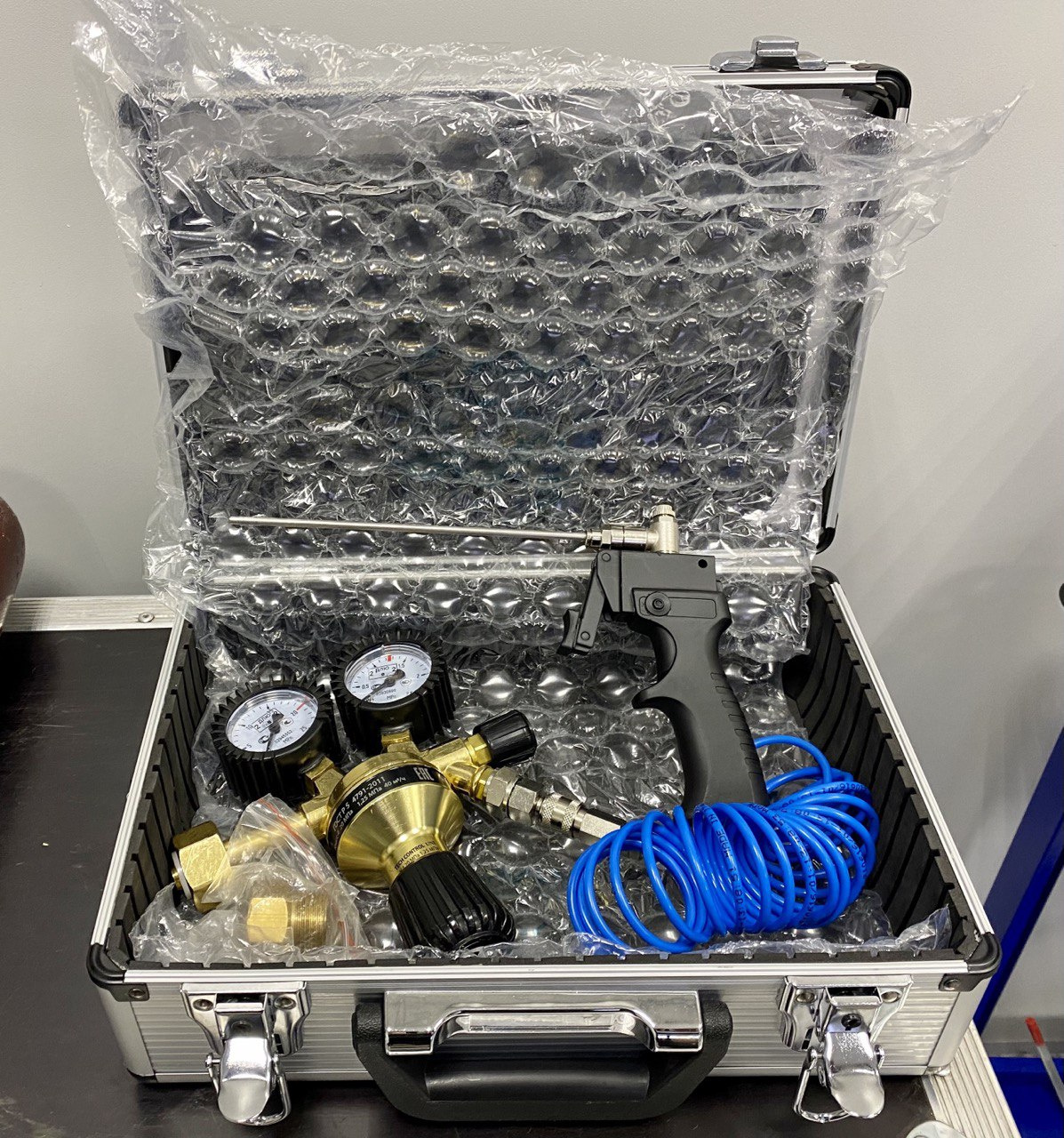

Portable helium spray-gun kit for local vacuum-method leak testing. A manually adjustable applicator, helium regulator, supply hose, quick connection and case can be configured for the cylinder and work instruction.
Description
LeakLab-OG Controlled Helium Spray-Gun Kit
The LeakLab-OG applies a fine, controllable helium flow to suspected leak locations while a mass-spectrometer detector monitors the evacuated test object.
Typical package
- Hand-operated spray gun with fine-flow adjustment
- Helium regulator selected for the supply-cylinder connection and pressure
- Flexible hose, quick connector and protective case
Before each use, check the regulator, hose and fittings for damage and verify that the kit does not introduce an unacceptable helium background. Start with minimal flow, move systematically and allow detector recovery between areas.
The kit itself does not establish compliance with a particular test standard. Tracer purity, pressure, application sequence, dwell time, detector calibration, acceptance limit and personnel competence must be defined by the governing procedure.
Specifications
| Product Label | New |
