Flexible sniffer probe for local leak detection in confined areas. Intended for compatible helium mass-spectrometer leak detectors, including selected TI, PTI, Pfeiffer, Alcatel Adixen, Agilent Varian, Leybold, Edwards, VEECO/VIC, ULVAC, Shimadzu and KYKY configurations. Connection adapters and flow requirements must be confirmed for the specific instrument.
Description

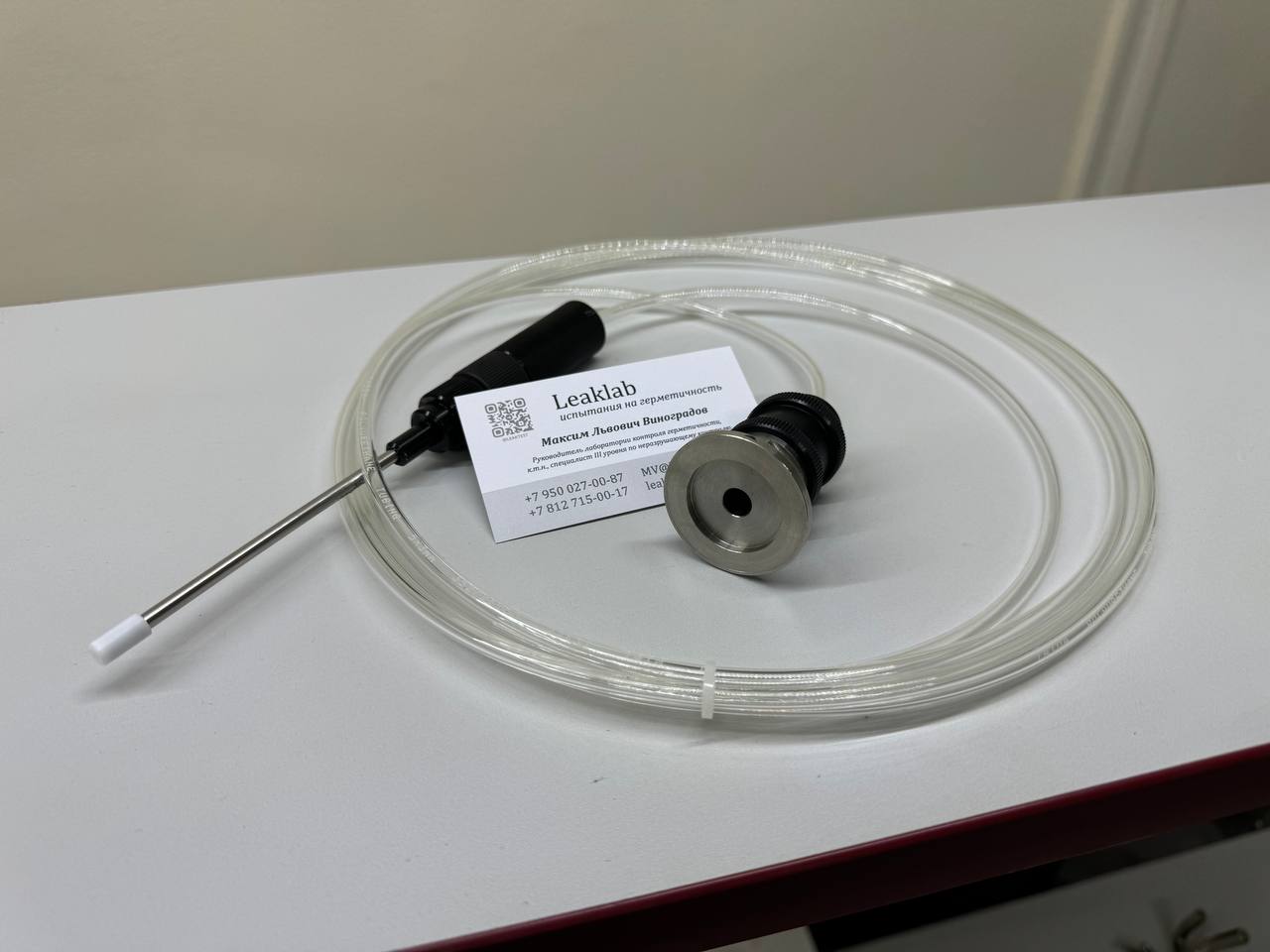

Sniffer Probe for Mass-Spectrometer Leak Detectors
- Flexible probe body and replaceable needle tip for access to confined areas.
- Low internal volume designed to reduce signal delay.
- Replaceable disc filters help protect the flow path from contamination.
- Up to three filters can be fitted in the tip for heavily contaminated environments.
- Filters can be replaced without special tools.
- A sintered-metal flow restrictor maintains the specified sampling flow.
Technical Data
| Nominal air flow | 20 cm3/min |
|---|---|
| Other stated flow options | Up to 100 cm3/min, or from 0.5 cm3/min for specific applications |
| Tubing length | 4 to 30 m; custom versions up to 35 m are stated as possible |
| Connections | ISO-KF16, ISO-KF25 or M5 thread; other versions may be possible |
| Flexible handpiece length | 130 mm |
| Tubing volume per unit length | 0.79 cm3/m |
Scope of Supply
- Probe with the agreed connection fitting.
- Replaceable fine-leak needle with protective cap.
The probe is intended for compatible instruments including selected TI1-50, TI1-30, PTI-10, Pfeiffer, Alcatel Adixen, Agilent Varian, Leybold, Edwards, VEECO/VIC, ULVAC, Shimadzu and KYKY leak detectors. This list does not guarantee direct connection. Confirm the detector inlet, required sampling flow, response time, hose length and adapter before ordering.
Availability and manufacturing lead time depend on the selected flow, length and connection and must be confirmed for each order.
