Replacement ion source for ULVAC HELIOT 900, 710, 700, 100 and ZERO helium mass-spectrometer leak detectors. The source product record states 1 W power consumption, 0.12 kg weight and manufacture by ULVAC in Chigasaki, Japan. Confirm the exact instrument version and part identification before ordering. LeakLab can provide installation and service subject to an agreed scope.
Description

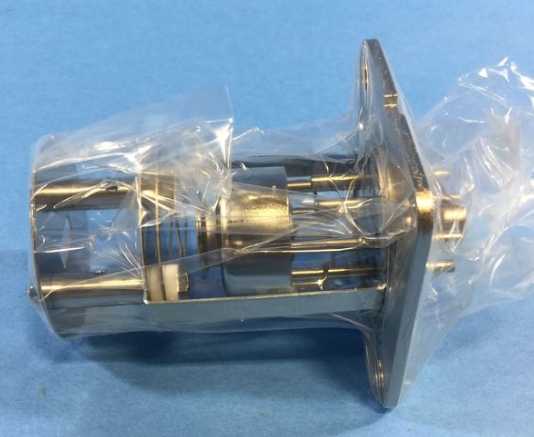

Ion Source for ULVAC HELIOT Helium Leak Detectors
| Intended compatibility | ULVAC HELIOT 900, 710, 700, 100 and ZERO configurations identified in the applicable service documentation |
|---|---|
| Manufacturer stated in source record | ULVAC, Chigasaki, Japan |
| Power consumption stated in source record | 1 W |
| Weight stated in source record | 0.12 kg |
The ion source generates helium ions in the mass-spectrometer analyzer of a HELIOT leak detector. A correctly operating source supports stable sensitivity and quantitative response during leak-tightness testing.
Replacement may be required when sensitivity falls, the signal becomes unstable or the applicable maintenance procedure specifies it. After installation, the analyzer and leak detector must be checked and calibrated in accordance with the instrument service documentation.
Compatibility must be confirmed using the complete detector model, serial number, existing ion-source identification and connection. The model list above does not by itself guarantee fit.
LeakLab can supply, install and test the ion source and provide broader service for ULVAC HELIOT leak detectors, subject to confirmation of the component, documentation, availability and service scope.
