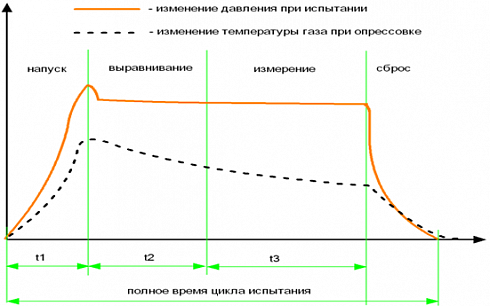

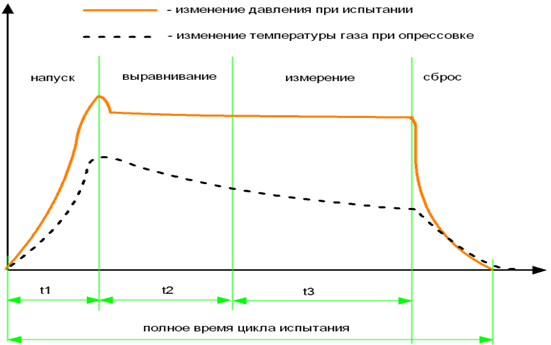

Programmable pressure-decay and differential-pressure leak-test instrument for production and laboratory stations. It manages fill, stabilization, measurement and vent stages and stores product-specific test programs.
Description

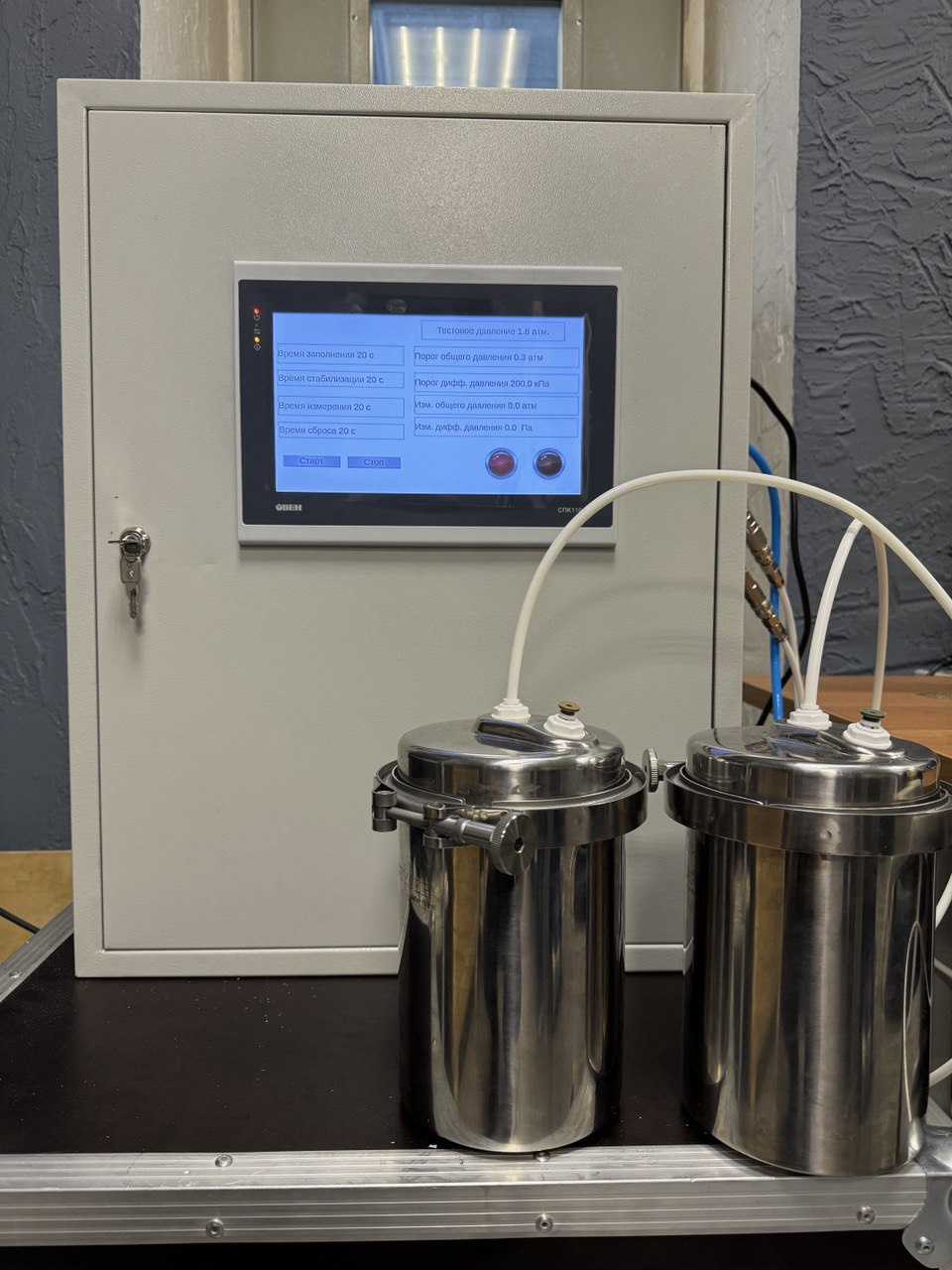

LeakLab ManoTest Pneumatic Leak-Test Instrument
ManoTest performs automated leak testing by monitoring pressure change in a sealed product or by comparing it with a reference volume. It supports production recipes, timed process stages and pass/fail evaluation.
| Differential measurement span stated in the source configuration | −250 to +250 Pa |
|---|---|
| Vacuum supply range stated in the source configuration | −100 to −5 kPa gauge |
| Low positive-pressure range | 5–100 kPa gauge |
| Standard positive-pressure range | 25–600 kPa gauge |
| Displayed units | Pa, Pa/s, sccm, mm³/s, kPa, bar and psi, configuration-dependent |
| Instrument supply | 24 V DC |
| Compressed-air supply | 5.5–6 bar in the source configuration |
| Operating temperature | 5–40 °C |
Test pressure, stabilization time, volume, temperature drift and fixture leakage determine the practical detection limit. The selected pressure module, valve block, flow conversion, port size, communication interface and safety circuit must be documented in the final configuration.
Pressure-decay testing measures total system behavior; reference parts, periodic challenge tests and a validated correlation to the reject leak are required for production use.
