Compact Roots-type booster with 50 m³/h actual pumping speed, 4 × 10⁻² Pa stated ultimate pressure, brushless DC drive and magnetic coupling. It must be used with a suitable backing pump.
Description

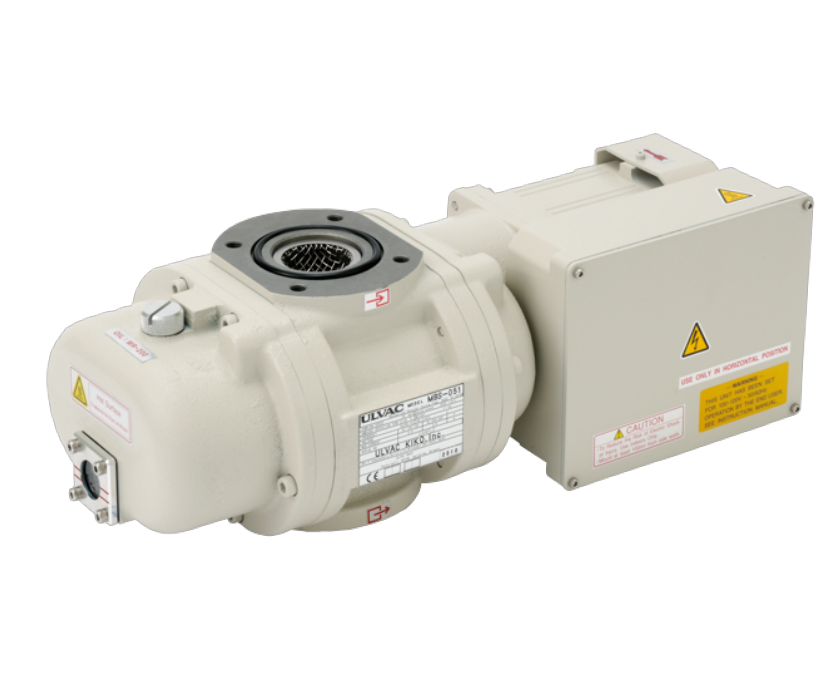

ULVAC MBS-053 Mechanical Booster Pump
The MBS-053 increases pumping speed where a backing pump's performance falls in the medium-vacuum range. Its load-dependent brushless drive permits startup from atmospheric inlet pressure, although near atmosphere the effective speed remains limited by the backing pump.
| Actual pumping speed | 50 m³/h, backing-pump dependent |
|---|---|
| Ultimate pressure | 4 × 10−2 Pa under ULVAC's stated backing conditions |
| Motor | 200 W brushless DC, 3,500 rpm nominal |
| Power | Single-phase 100–120 or 200–240 V AC, 50/60 Hz |
| Maximum consumption | 250 W |
| Inlet / outlet | JIS VG-40 / JIS VF-40 |
| Recommended backing pump | 130–240 L/min two-stage oil-sealed rotary pump in the ULVAC specification |
| Oil | 70 mL SMR-200 |
| Ambient / weight | 0–40 °C / 11 kg |
| Dimensions | 167 × 410 × 130 mm |
The booster cannot operate as a stand-alone pump. Verify gas compatibility, backing pump, flange adapters, mounting support, inlet valve sequence, voltage setting, power cable and exhaust arrangement. Standard MBS-053 service is specified for dry air or dry nitrogen; other gases require manufacturer approval.
