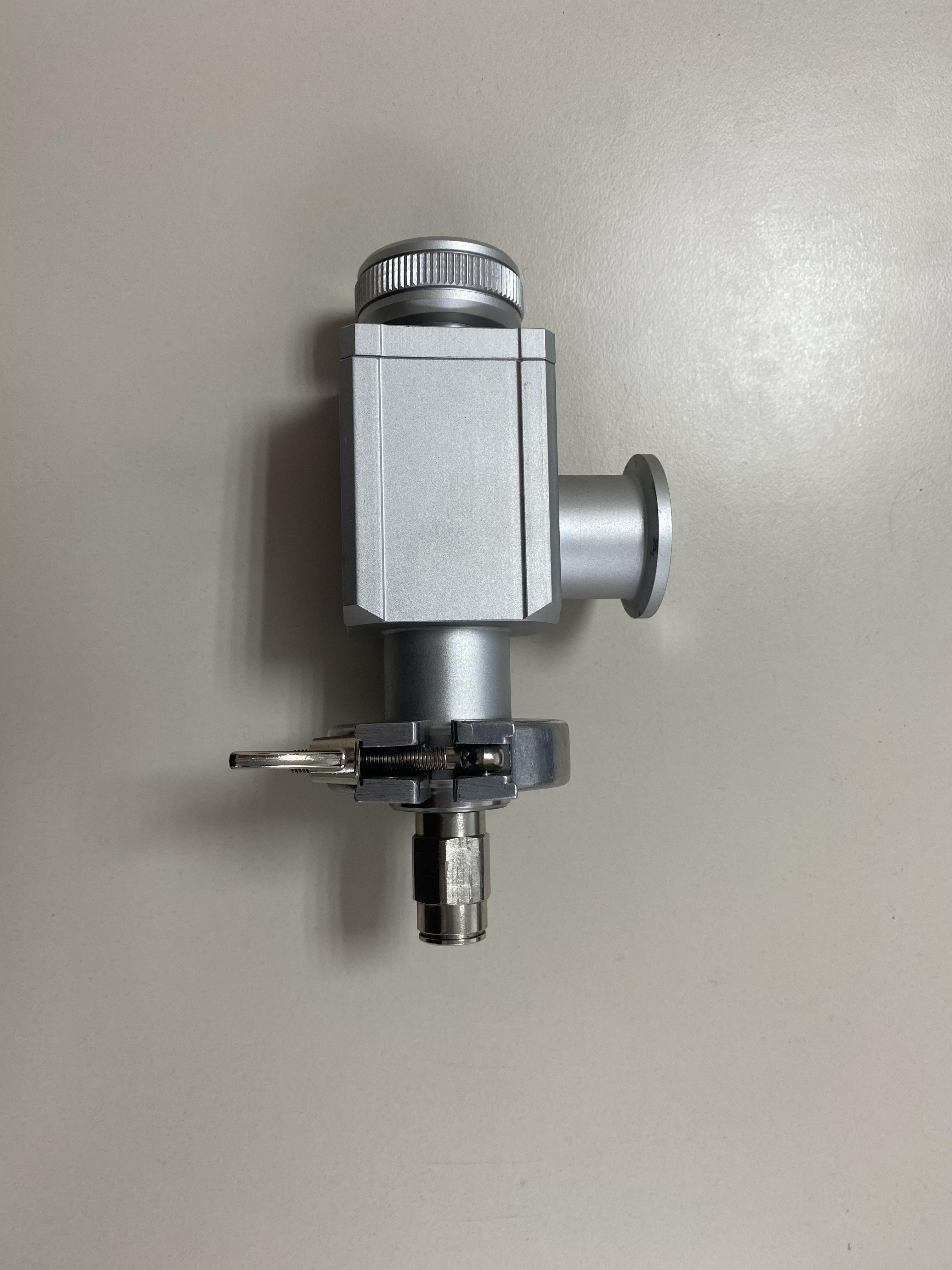

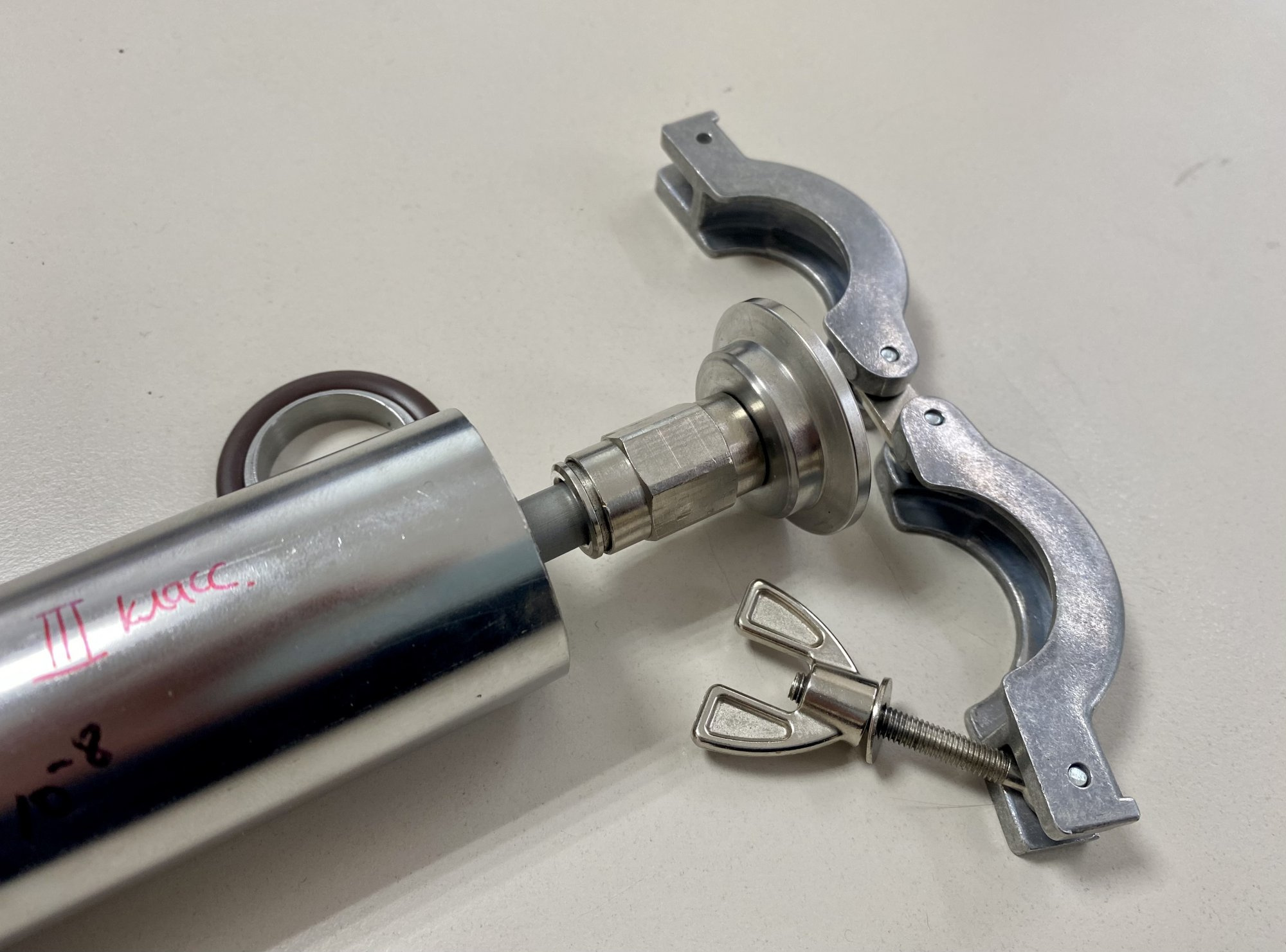

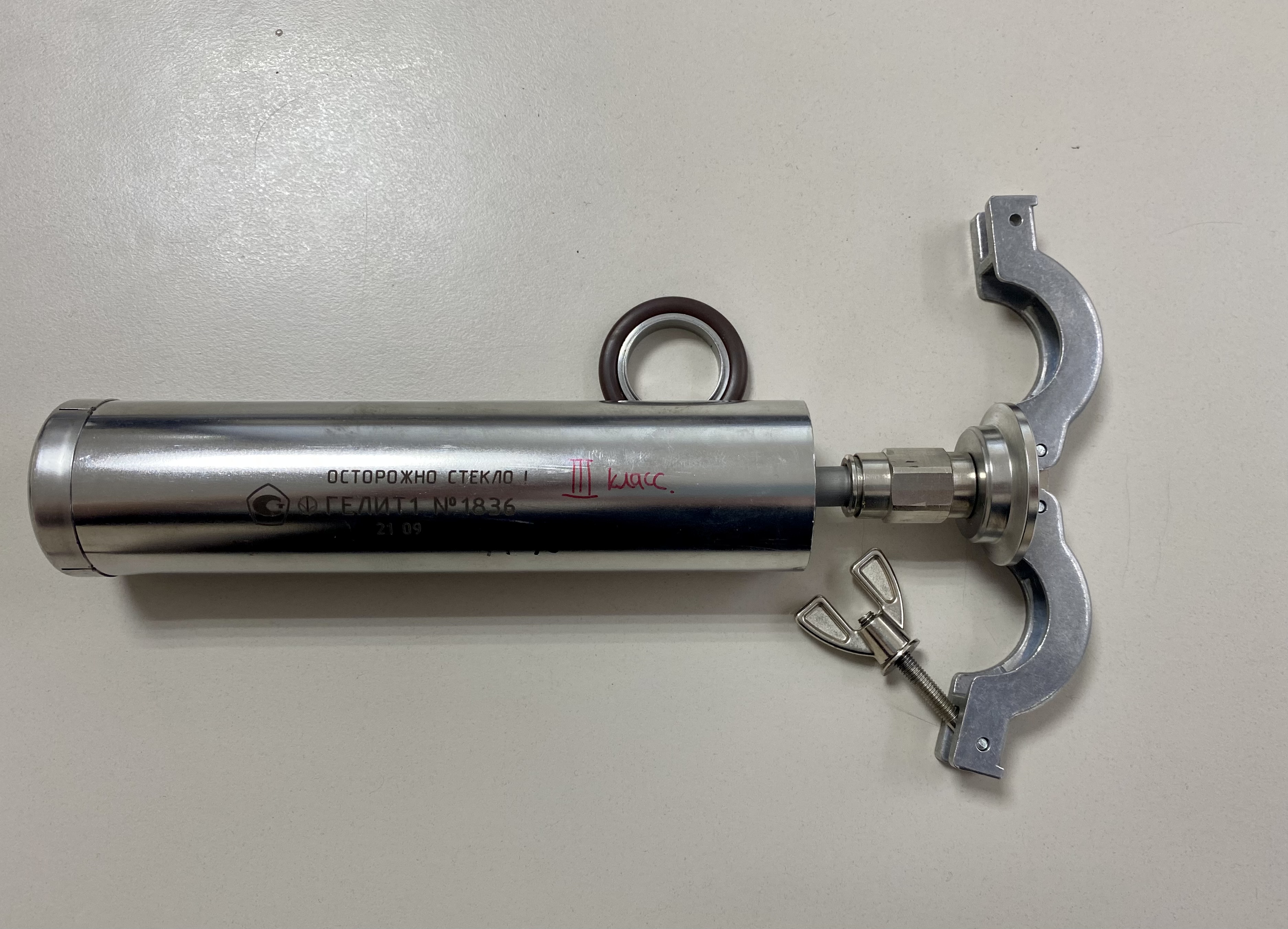

The GELIT-25 adapter provides a leak-tight KF25 connection between a GELIT calibrated helium leak and a helium leak detector.
Description
The GELIT-25 adapter provides a leak-tight KF25 connection between a GELIT calibrated helium leak and a helium leak detector.
It enables correct calibration of modern helium leak detectors, including imported instruments, using an external calibrated leak.

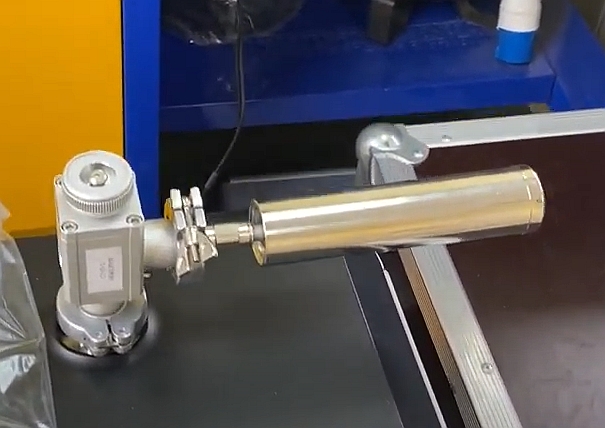

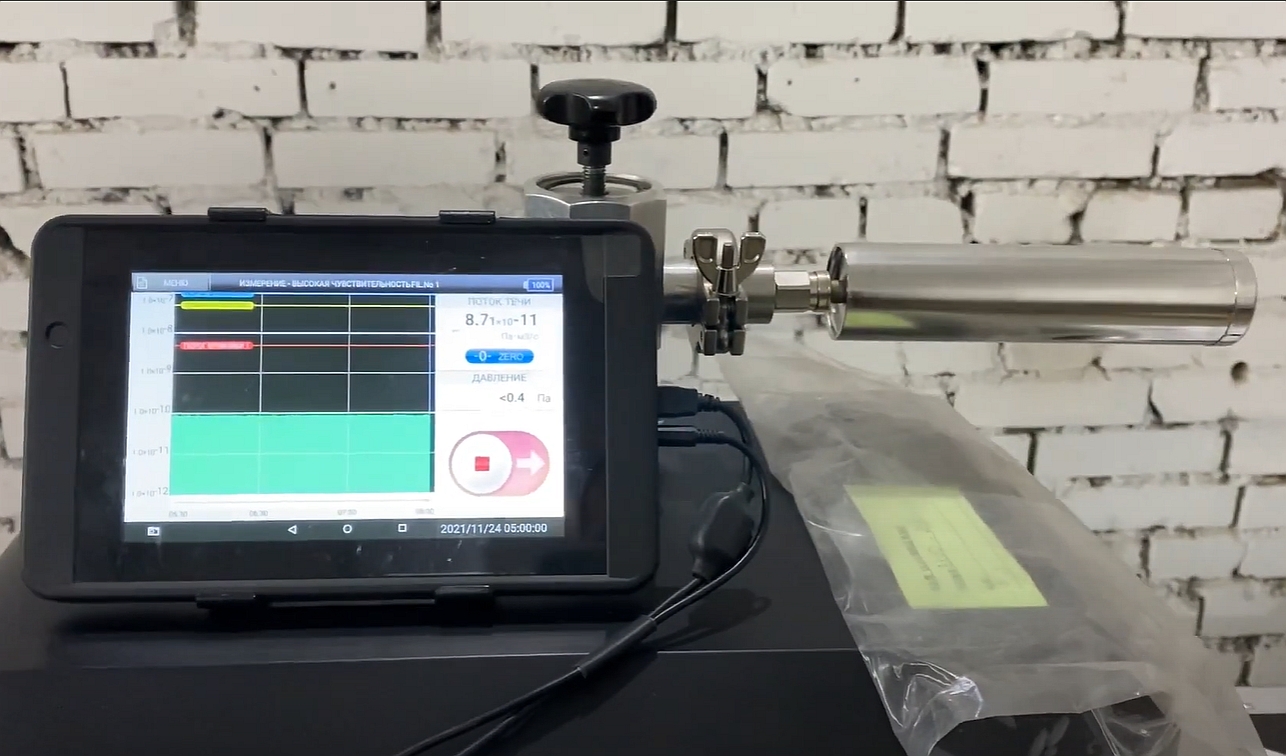

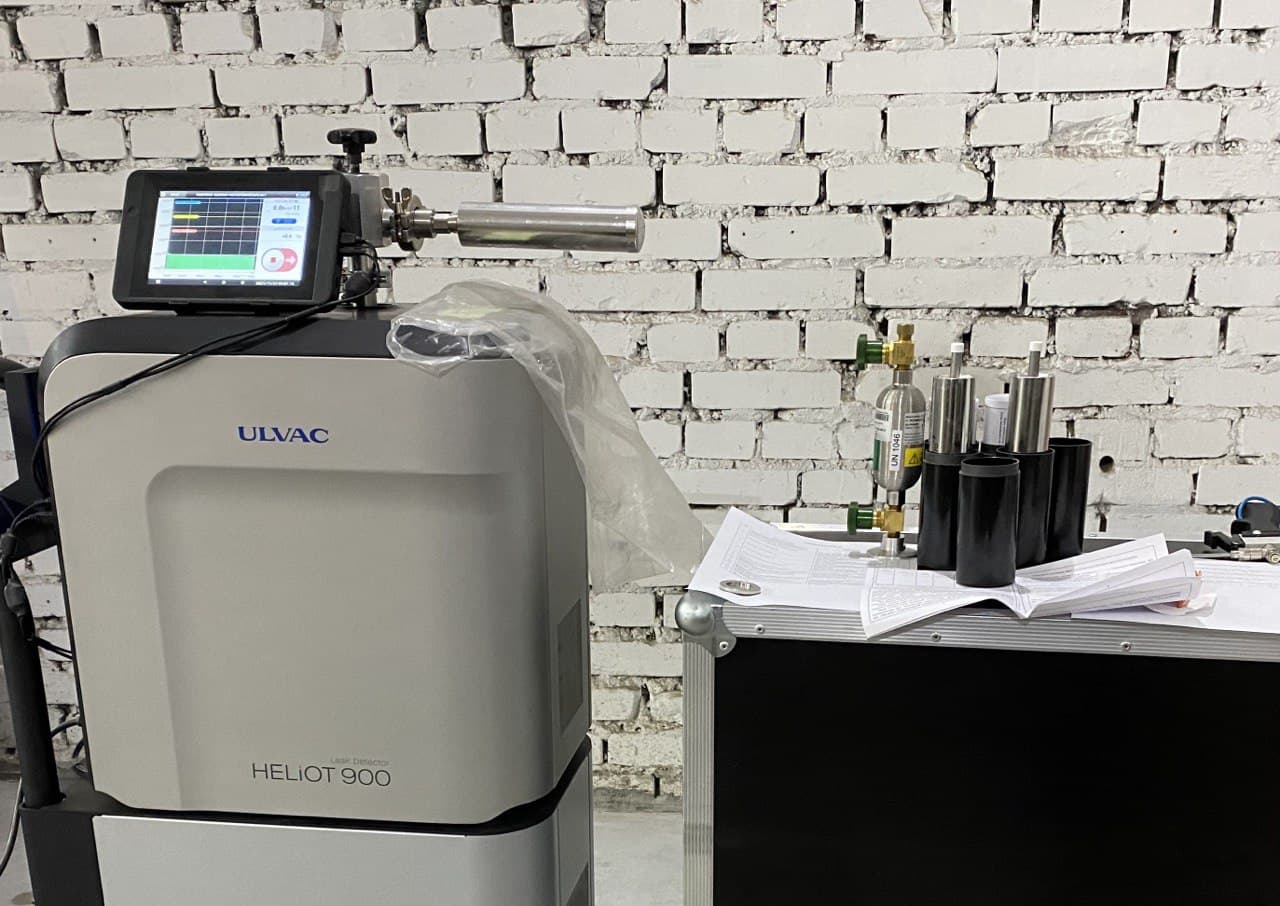

The adapter connects the reference leak to a leak detector vacuum system or to the object under test.
Compared with a reference leak installed inside an instrument, the external connection helps prevent heat generated by the leak detector from affecting calibration accuracy.
GELIT-1 and GELIT-2 gas-flow measures (helium leaks) are included in the Russian Federation State Register of Measuring Instruments and are supplied with valid verification.
Custom dimensions can be produced on request to suit a specific vacuum system.
Every adapter is tested for leak tightness with a helium leak detector using the spray method.
