Compact MEMS-based AMC2000 mass flow controller for configured clean, dry, non-corrosive gases. Full-scale options stated in the source record: 100, 300, 500 and 1000 mL/min. RS-485 Modbus RTU and an analog-output option support system integration. Confirm gas compatibility, calibration, fittings and electrical interface before ordering.
Description

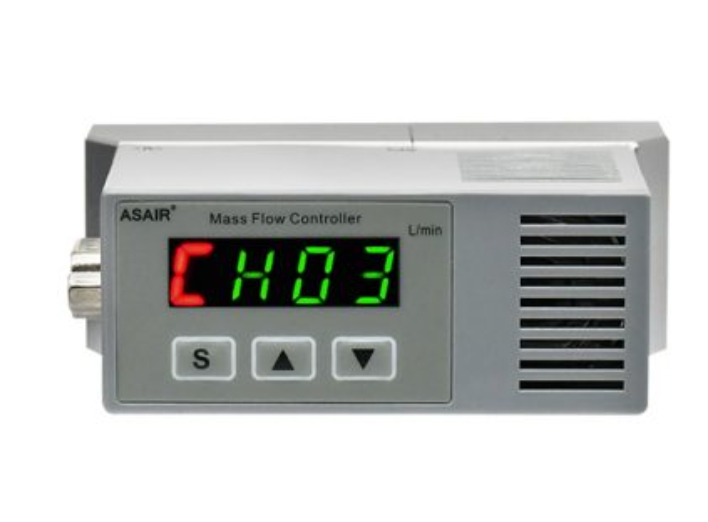

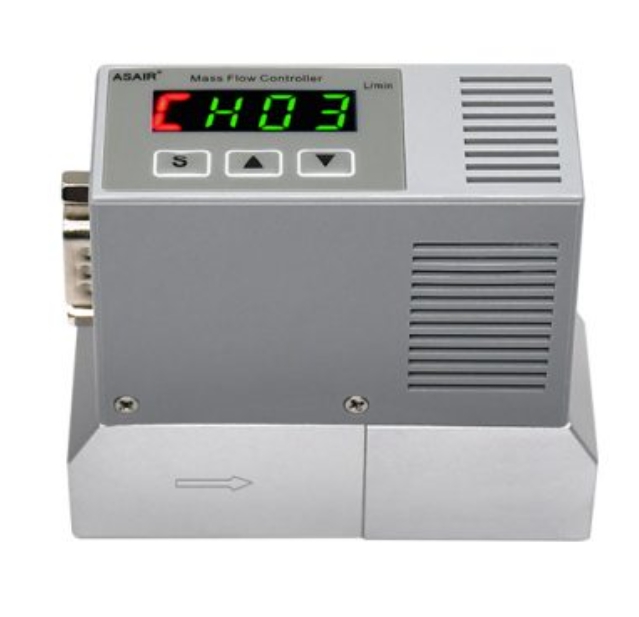

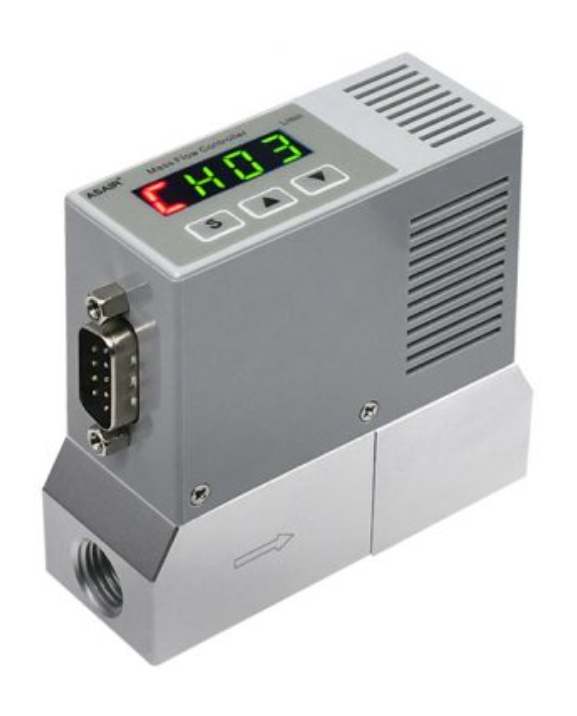

AMC2000 Digital Gas Mass Flow Controller
The AMC2000 measures and controls the mass flow of a configured clean, dry and non-corrosive gas. A MEMS flow sensor, control electronics and valve are integrated in a compact stainless-steel body.
| Full-scale ranges stated in source record | 100, 300, 500 and 1000 mL/min |
|---|---|
| Configured-gas options | Air, N2, O2, CO2 and Ar |
| Measurement | Mass-flow measurement referenced to the configured calibration conditions |
| Digital interface | RS-485 with Modbus RTU |
| Analog output | Option stated in source record; confirm signal range |
| Supply | 24 V DC |
| Typical power consumption | 2 W |
| Body material | 304 stainless steel |
| Calibration | Factory calibration stated for flow, accuracy and response time |
Typical applications include laboratory gas delivery, environmental instruments, pharmaceutical and food-process equipment, controlled-atmosphere systems and automated gas dosing. Suitability for oxygen, medical, food, fire-protection or other regulated applications must be established for the exact configuration.
Confirm the gas, calibration reference conditions, full-scale range, allowable inlet pressure and pressure differential, accuracy, response time, valve type, fittings, wetted materials, elastomers, analog signal, Modbus register map, connector and calibration documentation before ordering.
