AGP11 absolute-pressure gauge for 0–1000 Torr with an oil-isolated piezoresistive silicon sensor. Stated accuracy: ±0.5% full scale; output options: 0–10 V or 4–20 mA; response time: ≤50 ms; supply: 9–24 V DC; KF16 connection. A display is configuration-dependent and must be confirmed in the quotation.
Description
AGP11 Piezoresistive Absolute Pressure Gauge, 0–1000 Torr
This AGP11 configuration measures absolute pressure from 0 to 1000 Torr using an oil-isolated piezoresistive silicon sensor. It is intended for technical-vacuum and near-atmospheric pressure monitoring, with voltage, current and display variants described in the source record.
| Measurement range | 0 to 1000 Torr absolute |
|---|---|
| Accuracy | ±0.5% full scale |
| Output options | 0–10 V or 4–20 mA |
| Supply | 9–24 V DC |
| Response time | ≤50 ms |
| Maximum pressure stated in source record | 300 kPa |
| Electrical connector | Hirschmann-type, four contacts stated in source record |
| Vacuum connection | KF16 |
| Body materials | 304 and 316L stainless steel stated in source record |
| Operating temperature | +5 to +45 °C |
| Weight | 180 g |

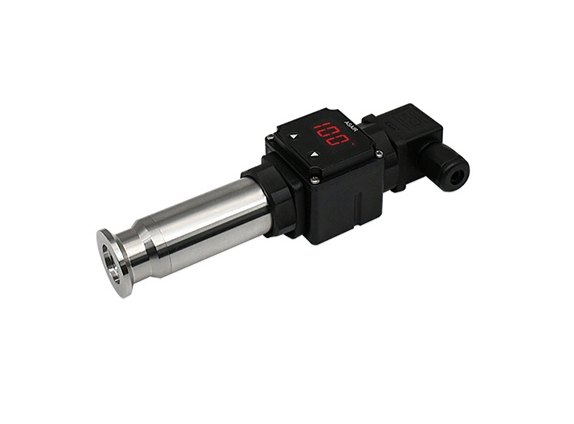

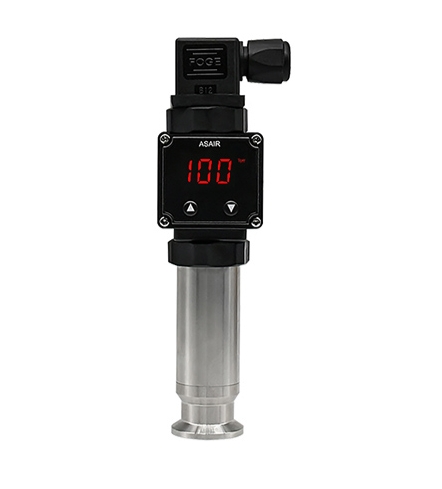

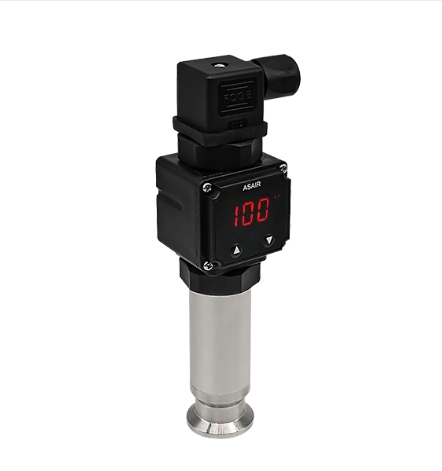

Stated variants include AGP11-V with 0–10 V output, AGP11-A with 4–20 mA output and AGP11-D with a digital display. Confirm which version is actually supplied.
Typical applications include vacuum furnaces, drying chambers, degassing, vacuum packaging, coating equipment and industrial pump systems. Media compatibility depends on the complete wetted-material system.
Each unit is stated to receive a factory performance check. Additional calibration can be agreed where required. Confirm the exact range, output, display, pinout, overpressure rating, media compatibility, fitting, calibration certificate and destination-country acceptance before ordering.
