Metal-bodied thermal vacuum sensor for dry air or nitrogen. The SK-TP4 operates from 1.3 × 10−2 to 2.7 × 10¹ Pa, with a stated measurement range of 1.3 × 10−1 to 2.7 × 10¹ Pa, and connects through a KF10/16 clamp fitting.
Description
Meradat SK-TP4 Thermal Vacuum Sensor

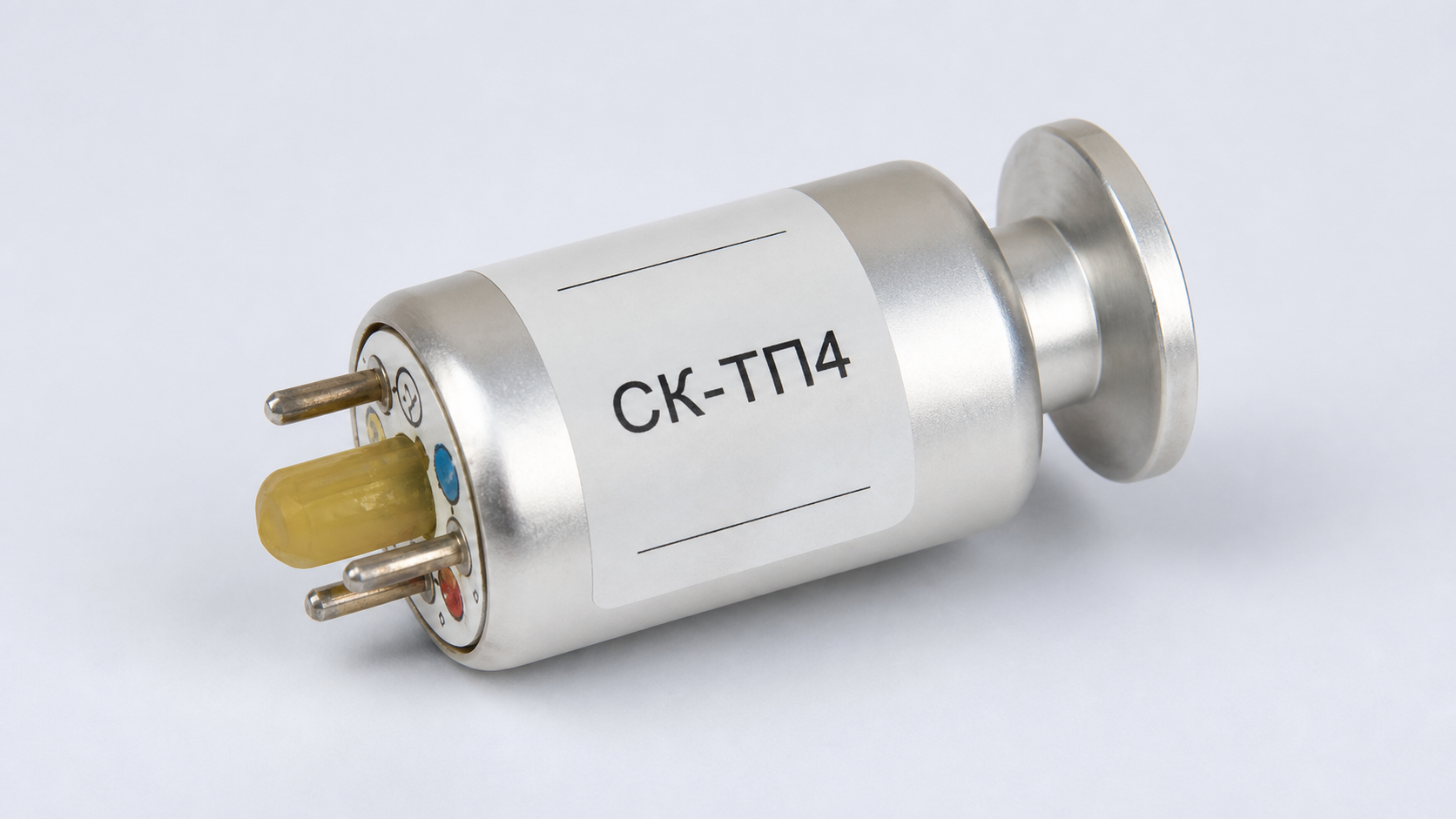

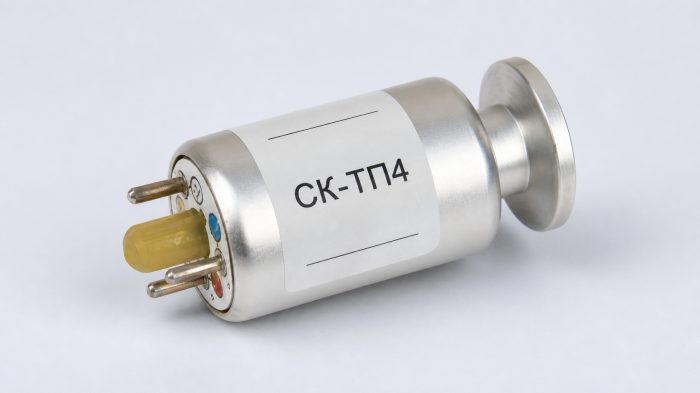

The SK-TP4 is a primary thermal vacuum transducer for dry-air or nitrogen pressure measurement. Heat loss from the sensing element changes with gas density; a compatible Meradat-VIT controller converts that electrical response into a pressure reading.
| Measurement principle | Thermal conductivity |
|---|---|
| Operating range | 1.3 × 10−2 to 2.7 × 101 Pa |
| Measurement range | 1.3 × 10−1 to 2.7 × 101 Pa |
| Permissible system error stated in source record | ±30% from 0.133 to 13.33 Pa |
| Compatible instruments | Meradat-VIT12T6, VIT16T5, VIT16T6 and VIT19IT2 |
| Vacuum connection | KF10/16 clamp connection |
| Sensor body | Metal |
| Connection cable | KS-TP cable for PMT-2 / SK-TP4, typically 2 m or 5 m; confirm supply scope |
| Calibration gas | Dry air or nitrogen |
Thermal-gauge response is gas-dependent. Correction or process-specific calibration is required for gases other than dry air or nitrogen. Mount the sensor where it is protected from condensate, particles, oil mist and direct process flow.
The technical infographic, video and slide deck from the source page are intentionally omitted. Confirm controller compatibility, cable length, fitting, calibration and destination-country metrology requirements before ordering.
