Single-channel thermal vacuum-gauge controller for compatible thermocouple or thermal-conductivity heads. Pressure range depends on the selected head; relay outputs and optional analog, RS-485 and logging functions support equipment integration.
Description

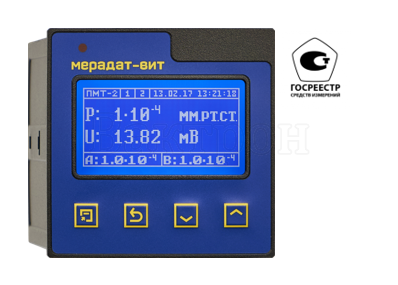

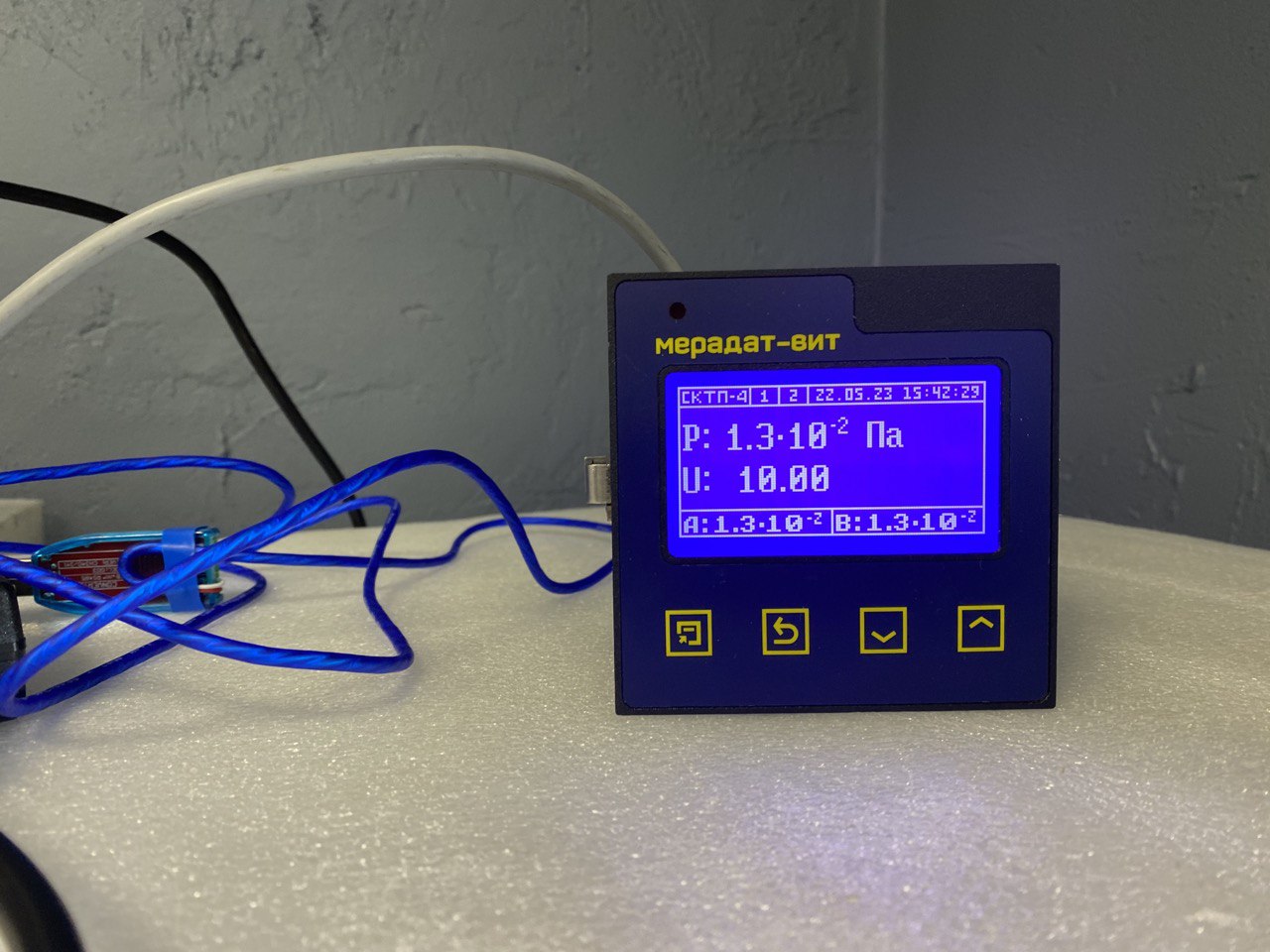

VIT16 Thermal Vacuum Gauge Controller
The VIT16 measures and displays vacuum pressure using a compatible thermal gauge head. It is intended for research and industrial vacuum equipment where local indication and pressure-dependent control are required.
| Compatible head families listed in the source record | SK-TP4, PMT-2, PMT-4M and PMT-6-3 / PMT-6-3M-1 |
|---|---|
| Pressure range | Depends on the connected head and controller version |
| Control | Two programmable relay outputs |
| Options | Current analog output, RS-485 interface and archive memory |
The former title quoted a lower working limit of approximately 0.013 Pa, but the detailed measurement interval varies by head and may begin above the head's wider working limit. Select the controller suffix, head, cable and adapter as a matched set.
For international supply, calibration or verification must be specified separately with the required range, uncertainty, laboratory and reporting standard. A domestic register reference from the source page is not treated as universal approval.
