Absolute-pressure sensor kit for the 5–10,000 Pa range with KF16 process connection, RS-485 Modbus RTU output and programmable display. The catalog configuration specifies ±5 Pa maximum error and 0.03 Pa resolution.
Learn More
Description

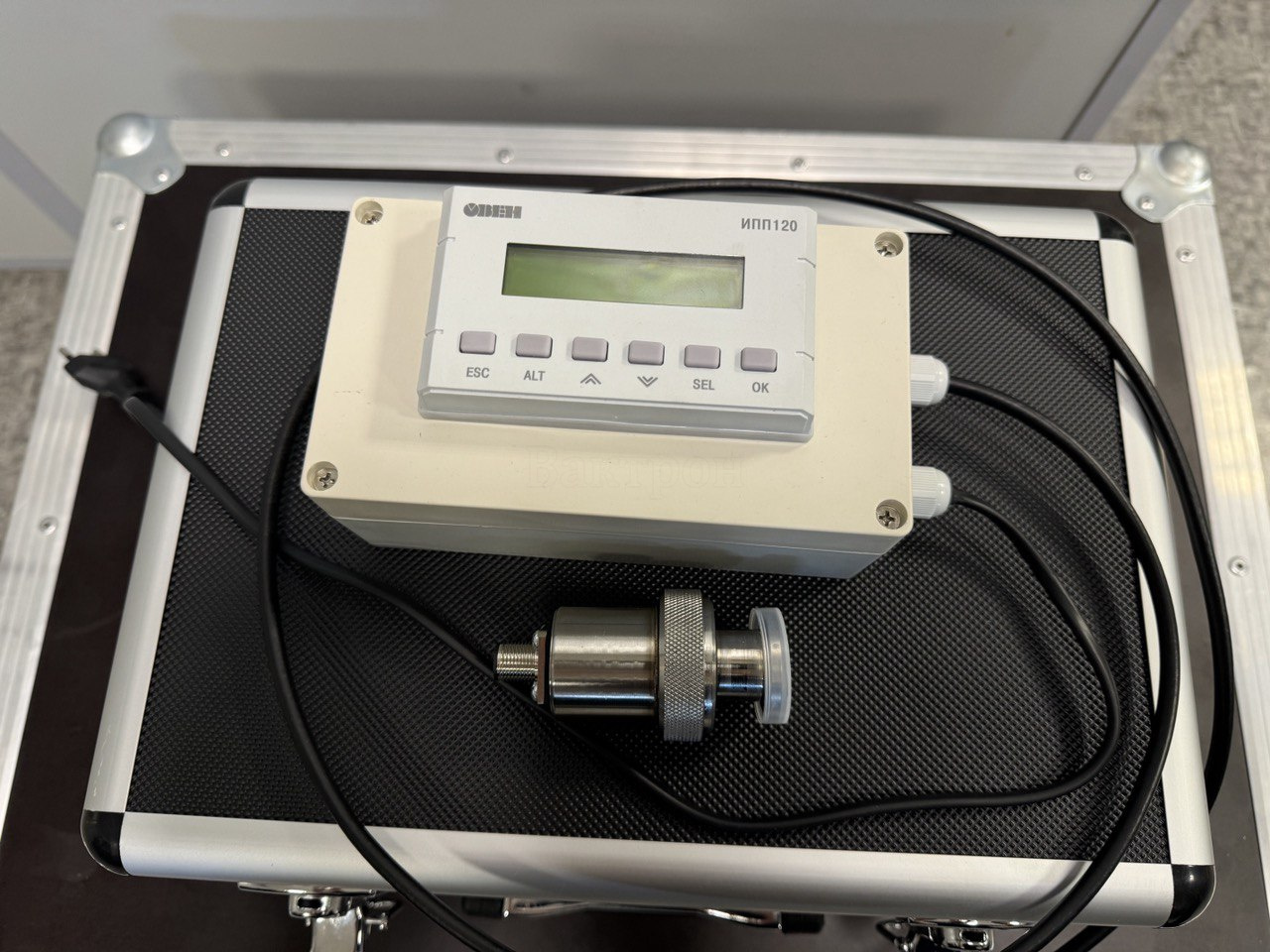

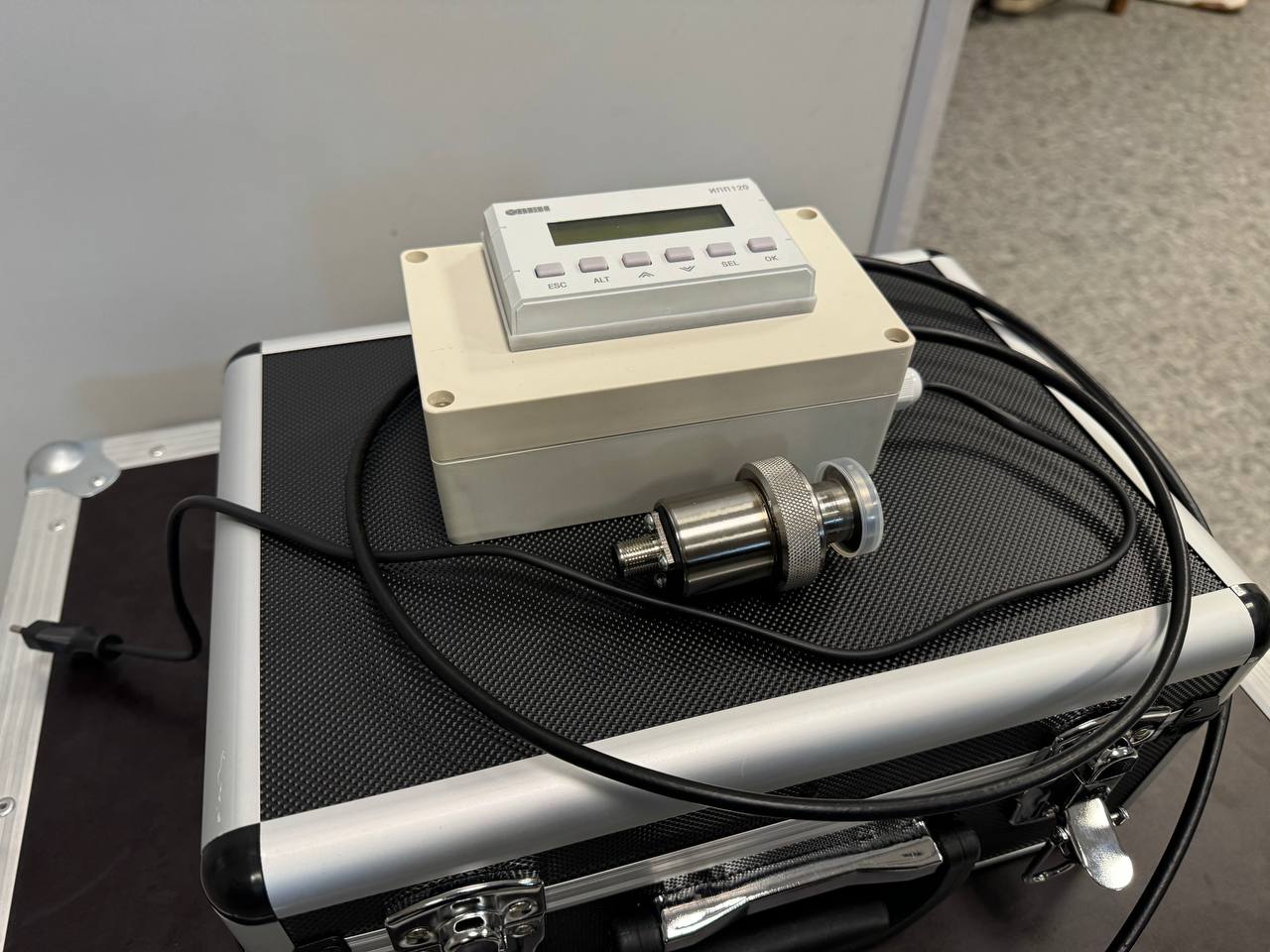

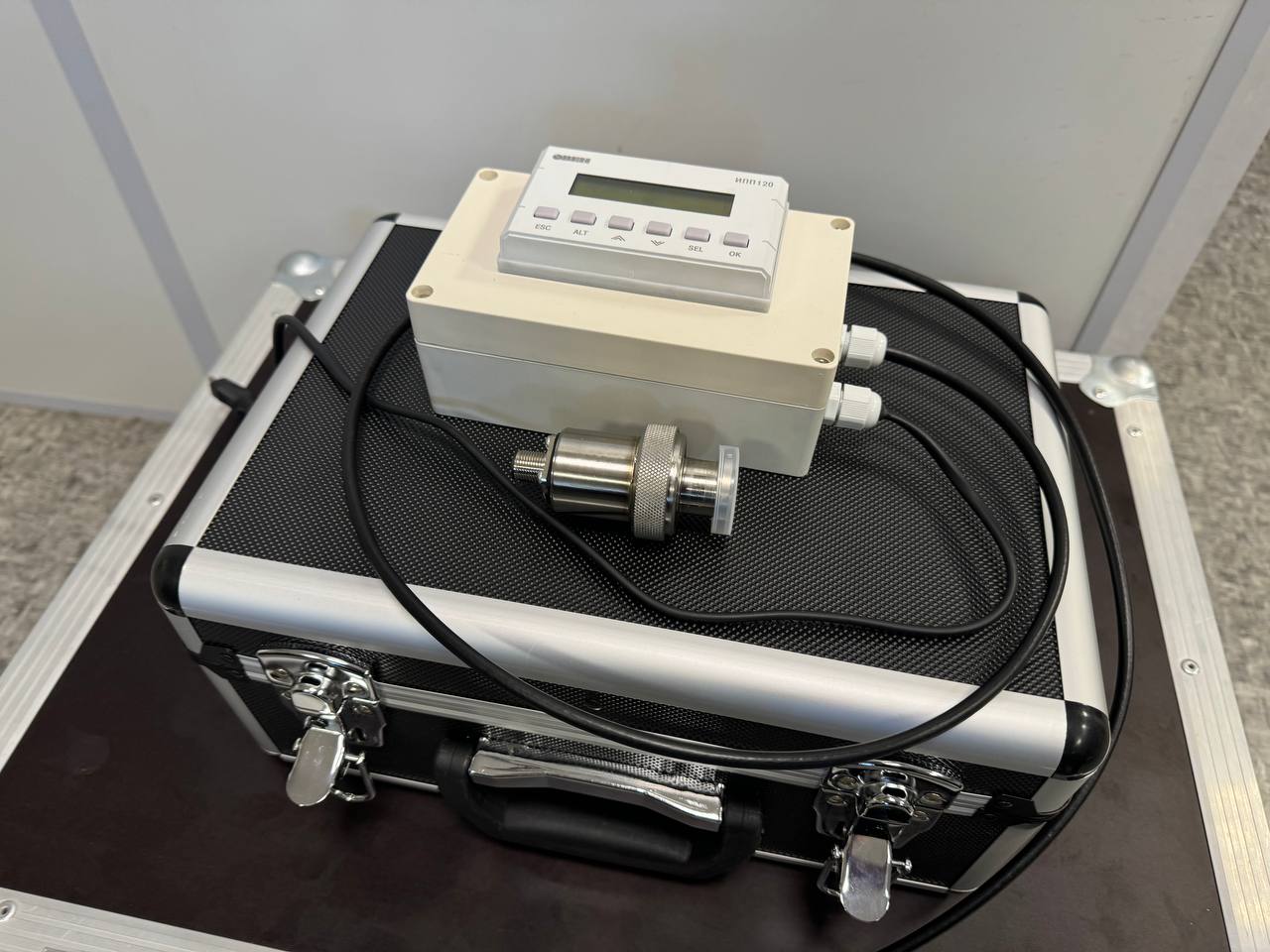

DA Capacitance Vacuum Sensor Kit, 5–10,000 Pa
This assembled kit is intended for absolute-pressure measurement in laboratory and industrial vacuum systems. It combines a diaphragm sensor, power supply, local display and KF16 connection hardware.
| Nominal pressure range | 5–10,000 Pa |
|---|---|
| Resolution stated in the source configuration | 0.03 Pa |
| Maximum error stated in the source configuration | ±5 Pa |
| Process connection | KF16 |
| Digital output | RS-485, Modbus RTU |
| Supply | 3–12 V DC for the sensor; supplied system electronics may require a separate input |
| Operating temperature | 10–35 °C |
| Wetted materials listed in the source record | Ceramic diaphragm and titanium alloy |

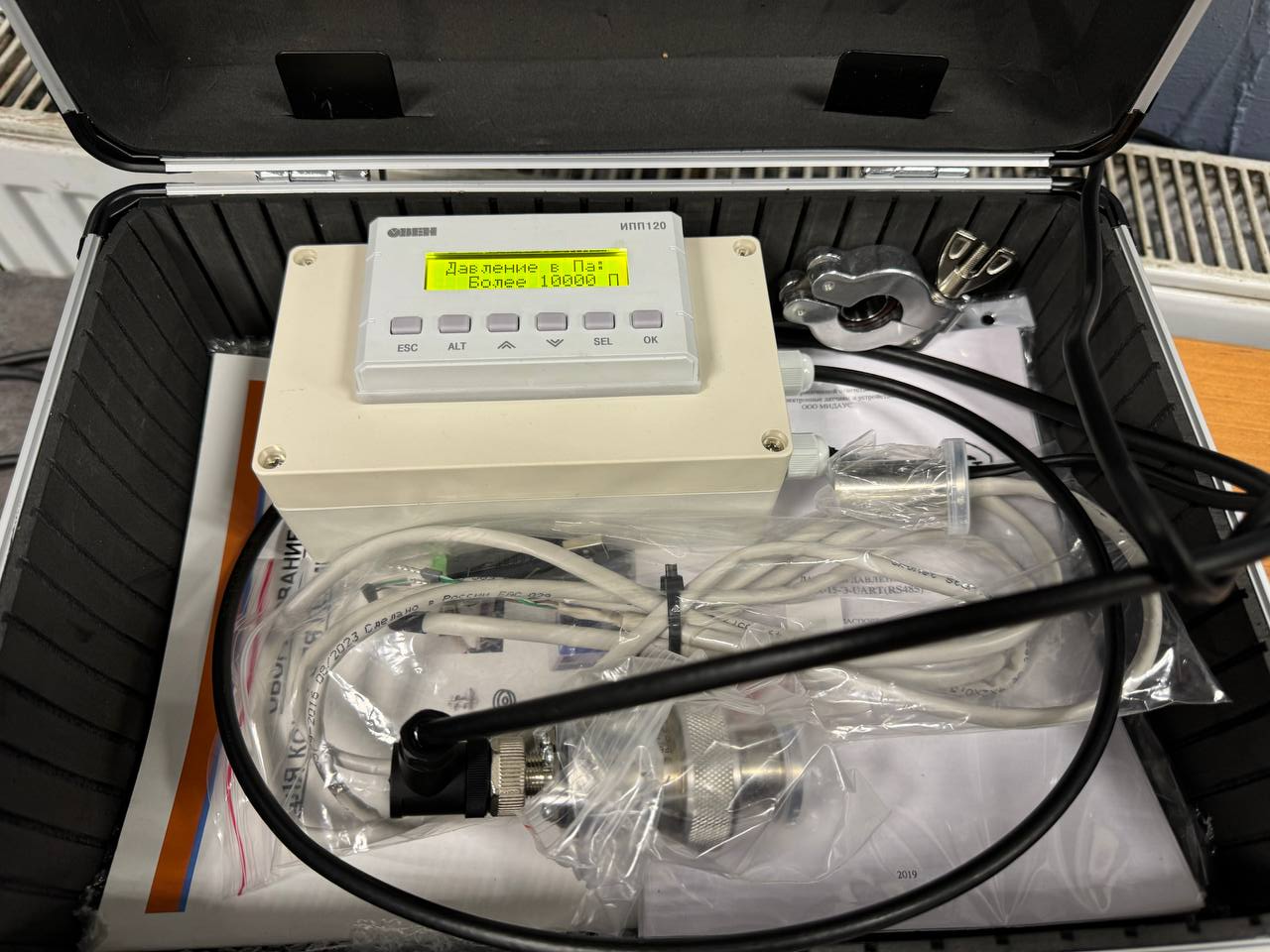

The typical package includes the sensor, KF16 clamp and centering ring, power supply, programmable display and configuration interface. Final contents, cable length, enclosure and power input must be confirmed in the quotation.
Calibration or verification is available only when explicitly ordered. The range, uncertainty, laboratory, traceability statement and destination-country acceptance requirements must be stated in the contract.
