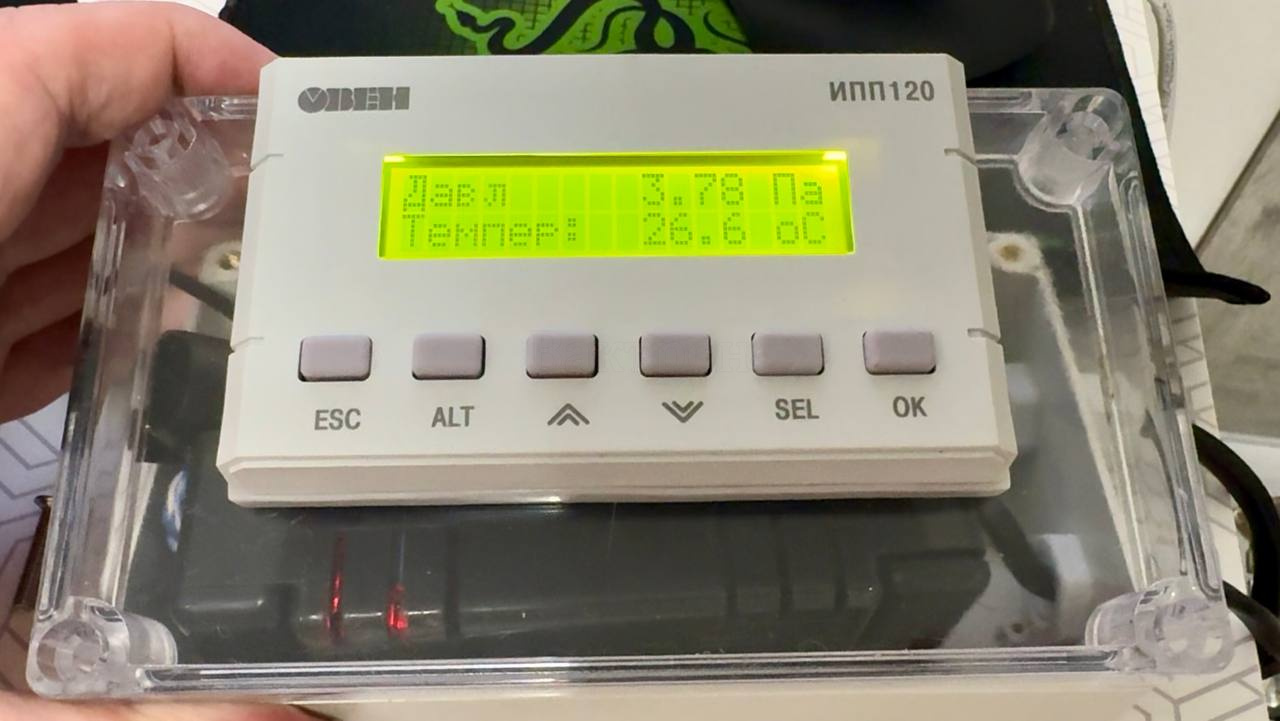

Low differential-pressure measurement package with sensor, safe manifold connection, power supply and programmable display. The catalog configuration specifies a 5–1,000 Pa working range and ±1 Pa maximum error.
Learn More
Description
DD Differential-Pressure Sensor Kit, 5–1,000 Pa
This package measures the pressure difference between two gas lines for process monitoring, flow-related measurements and low-pressure control. It is supplied as a system rather than as an unspecified bare transmitter.
| Catalog working range | 5–1,000 Pa differential |
|---|---|
| Maximum error stated for this configuration | ±1 Pa |
| Typical package | Differential sensor, connection or manifold device, power supply, programmable display and configuration interface |
| Compatible media | Dry, non-aggressive gases compatible with the delivered wetted materials |
| Output | Version-dependent; RS-485 Modbus is available in the source product family |
Do not confuse the 1,000 Pa kit with the wider-range transmitter variants mentioned in the former page. Static-line pressure, overload limit, port thread, response time, temperature error, power and protocol must be fixed by the exact ordering code.
A three-valve manifold is recommended where zeroing and safe equalization are required. Calibration or verification is optional and must be ordered for the required range, uncertainty and destination-country framework.
