Absolute-pressure diaphragm sensor kit for measurements from 50 Pa to near atmospheric pressure. The catalog configuration uses KF16, RS-485 Modbus RTU and a programmable local display, with ±50 Pa maximum error.
Learn More
Description

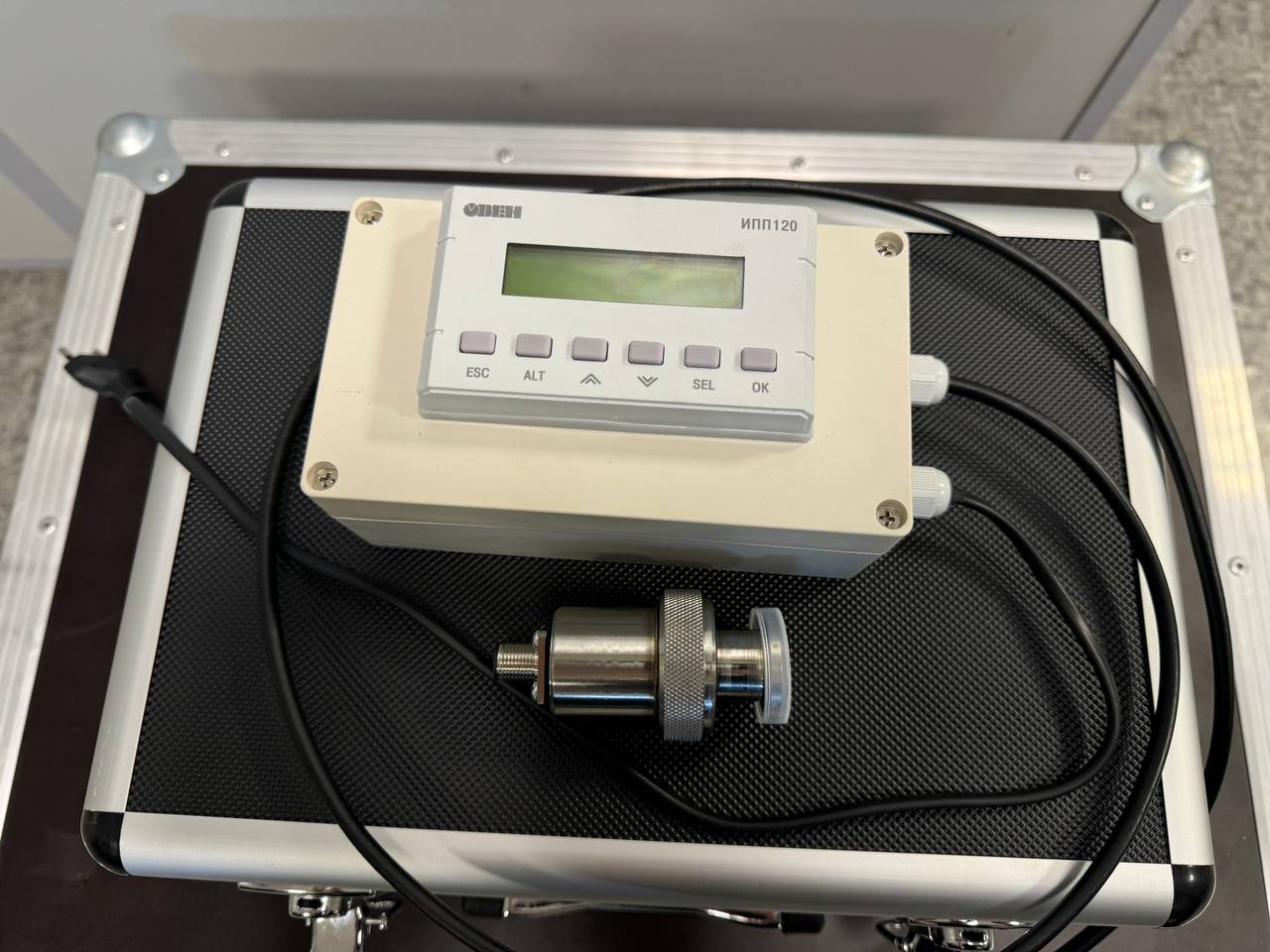

DA Absolute Vacuum Sensor Kit, 50–101,000 Pa
This kit covers rough vacuum through near-atmospheric absolute pressure. It is suitable for pump-down monitoring, chamber pressure logging and process-control integration where gas-independent diaphragm measurement is preferred.
| Nominal pressure range | 50–101,000 Pa |
|---|---|
| Maximum error stated for the catalog configuration | ±50 Pa |
| Resolution stated in the source record | 0.3 Pa |
| Process connection | KF16 |
| Digital output | RS-485, Modbus RTU |
| Sensor supply | 3–12 V DC |
| Operating temperature | 10–35 °C |
| Wetted material listed in the source record | Titanium alloy |

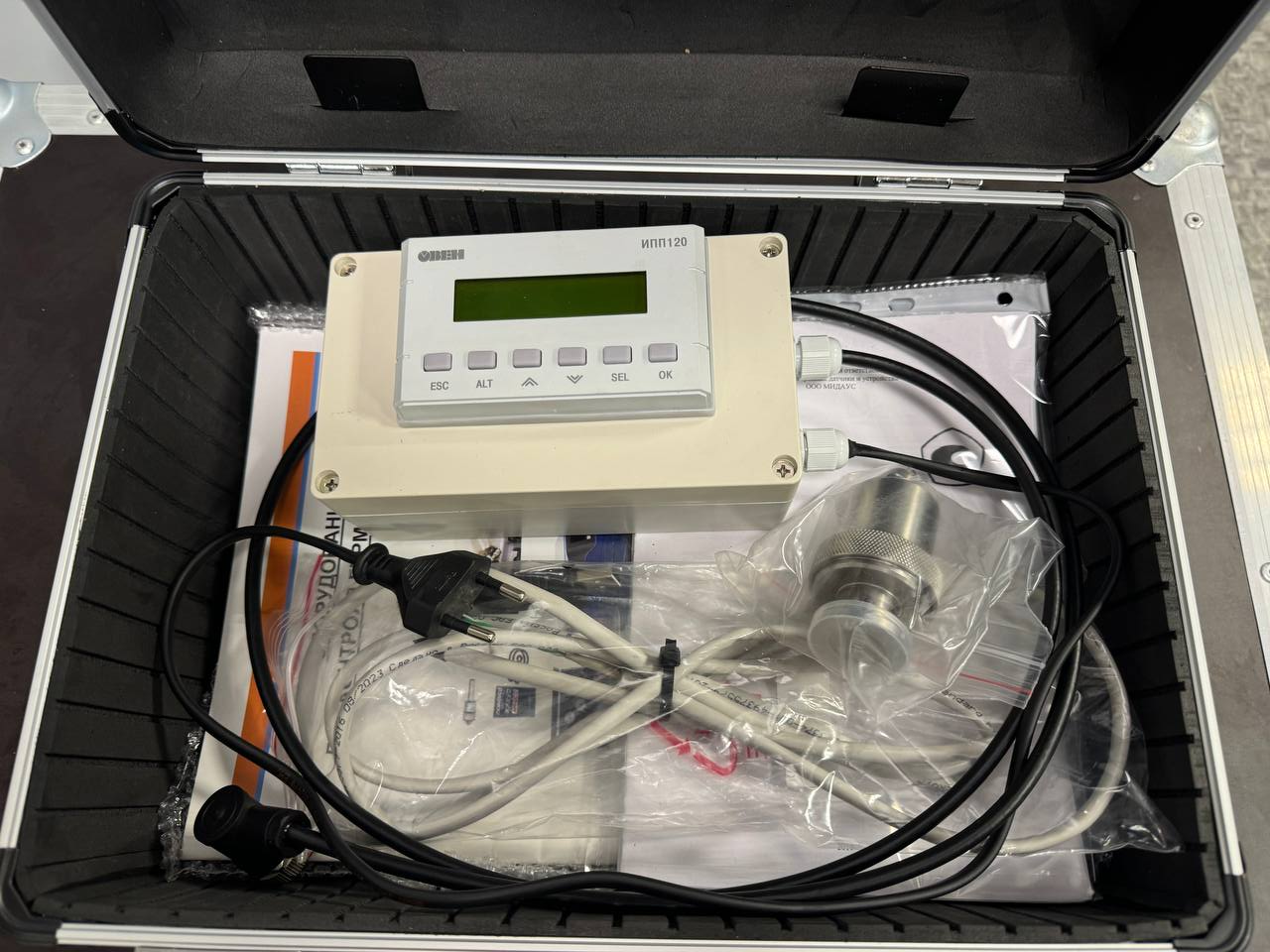

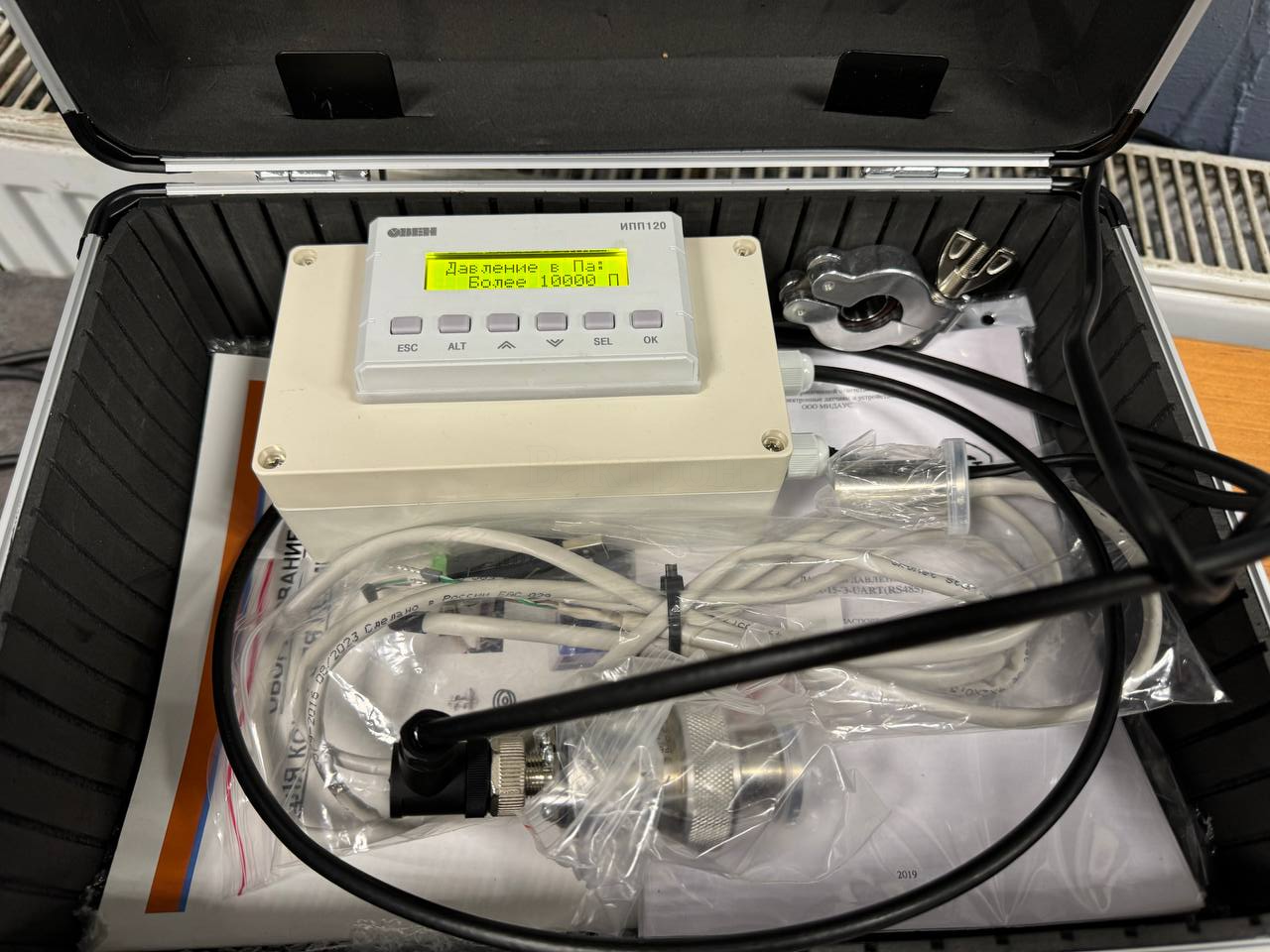

The assembled package can include a KF16 clamp and centering ring, regulated power supply, programmable display and configuration interface. Verify the exact sensor suffix, pressure reference, proof pressure, response time, enclosure and electrical pinout before integration.
Calibration or verification documents are optional and jurisdiction-specific. They must name the range, method, uncertainty, laboratory and acceptance framework required by the end user.
