Wide-range thermal vacuum sensor with a CF16 bolted connection for dry air or nitrogen from 1.3 × 10−1 to 1.0 × 10⁵ Pa. It is compatible with selected Meradat-VIT controllers and uses a KS-TS connection cable.
Description

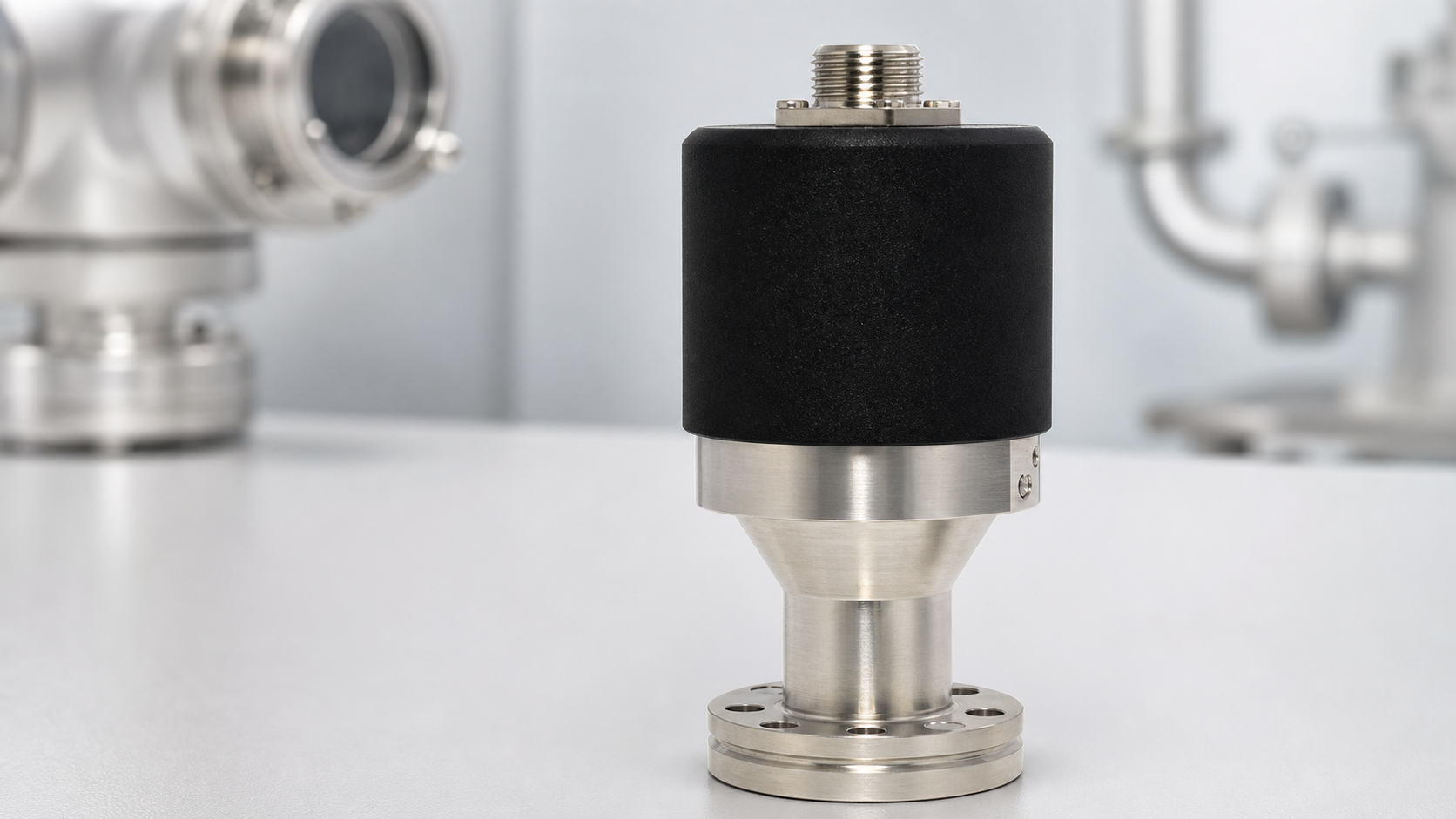

Meradat SK-TS6/K/CF16 Thermal Vacuum Sensor
The SK-TS6/K/CF16 is a wide-range thermal vacuum transducer for dry air or nitrogen. The bolted CF16 connection is intended for rigid vacuum assemblies where a metal-sealed flange is required.
| Measurement principle | Thermal conductivity |
|---|---|
| Measurement range | 1.3 × 10−1 to 1.0 × 105 Pa |
| Permissible error stated in source record | ±30% from 1.33 to 1.0 × 104 Pa; ±50% in the remaining stated regions |
| Compatible instruments | Meradat-VIT12T6, VIT16T5, VIT16T6 and VIT19IT2 |
| Vacuum connection | CF16 |
| Connection cable | KS-TS, typically 2 m or 5 m; confirm supply scope |
| Calibration gas | Dry air or nitrogen |
Prepare the CF sealing surfaces correctly, tighten fasteners evenly and avoid bending load on the sensor body. Protect the sensing element from contamination and sudden pressure changes. Thermal response is gas-dependent.
The technical infographic, video and slide deck from the source page are intentionally omitted. Confirm the controller revision, cable, flange hardware, gas correction and calibration documentation before ordering.
