Wide-range thermal vacuum sensor with a KF25 clamp connection for dry air or nitrogen from 1.3 × 10−1 to 1.0 × 10⁵ Pa. It is compatible with selected Meradat-VIT controllers and uses a KS-TS connection cable.
Description

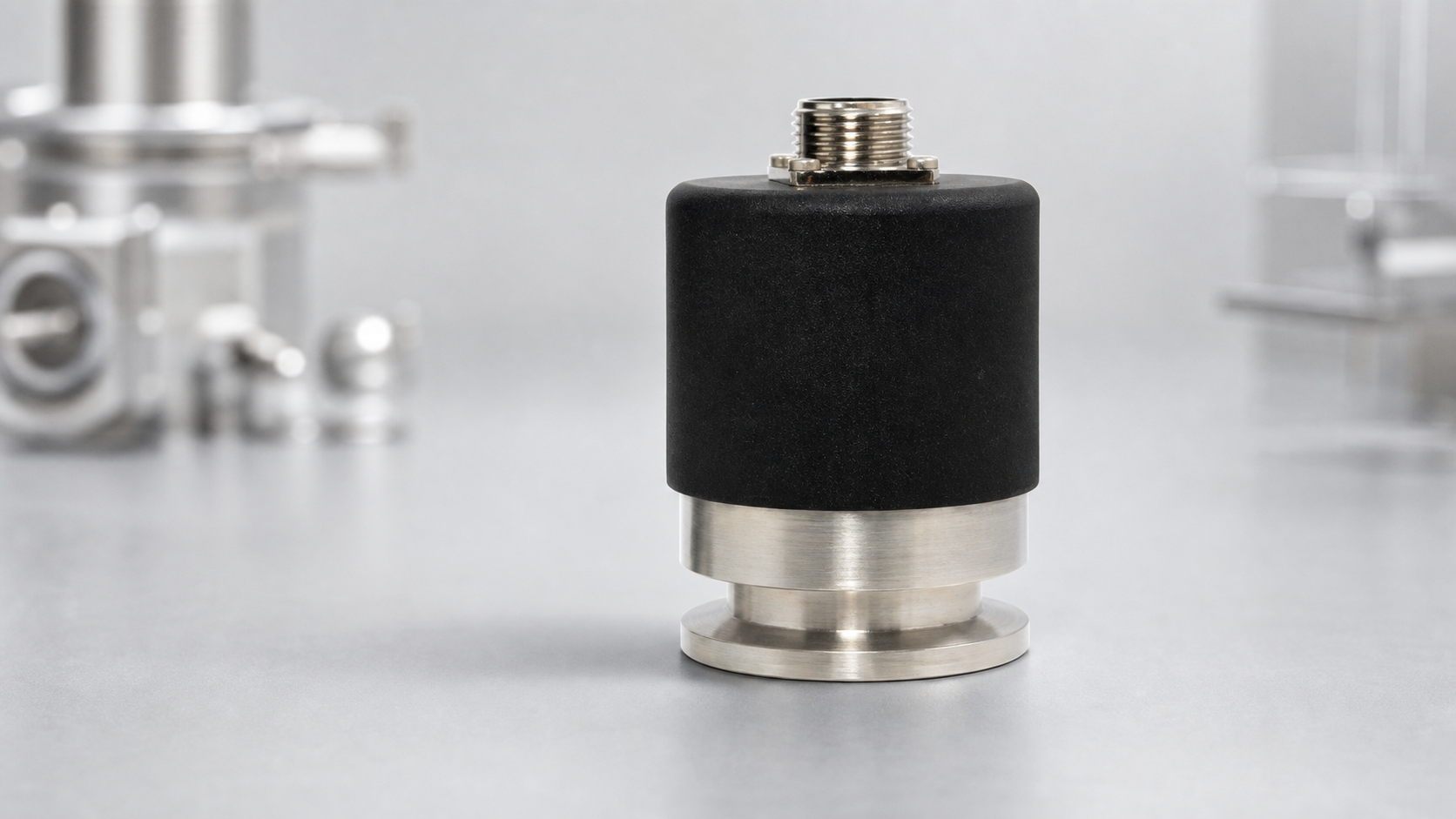

Meradat SK-TS6/K/KF25 Thermal Vacuum Sensor
The SK-TS6/K/KF25 is a thermal vacuum transducer for continuous monitoring from rough vacuum to the atmospheric region. Its KF25 clamp connection supports rapid installation and service on compatible vacuum lines.
| Measurement principle | Thermal conductivity |
|---|---|
| Measurement range | 1.3 × 10−1 to 1.0 × 105 Pa |
| Permissible error stated in source record | ±30% from 1.33 to 1.0 × 104 Pa; ±50% in the remaining stated regions |
| Compatible instruments | Meradat-VIT12T6, VIT16T5, VIT16T6 and VIT19IT2 |
| Vacuum connection | KF25 |
| Connection cable | KS-TS, typically 2 m or 5 m; confirm supply scope |
| Calibration gas | Dry air or nitrogen |
Use a clean centering ring and an undamaged clamp, and do not transfer piping load to the sensor. Protect the sensing element from condensate, oil aerosol, particles and sudden venting. Thermal response is gas-dependent.
The technical infographic, video and slide deck from the source page are intentionally omitted. Confirm the controller revision, cable, measurement range, gas correction, fitting and calibration documentation before ordering.
