Meradat-VIT16T5 Thermal Vacuum Gauge

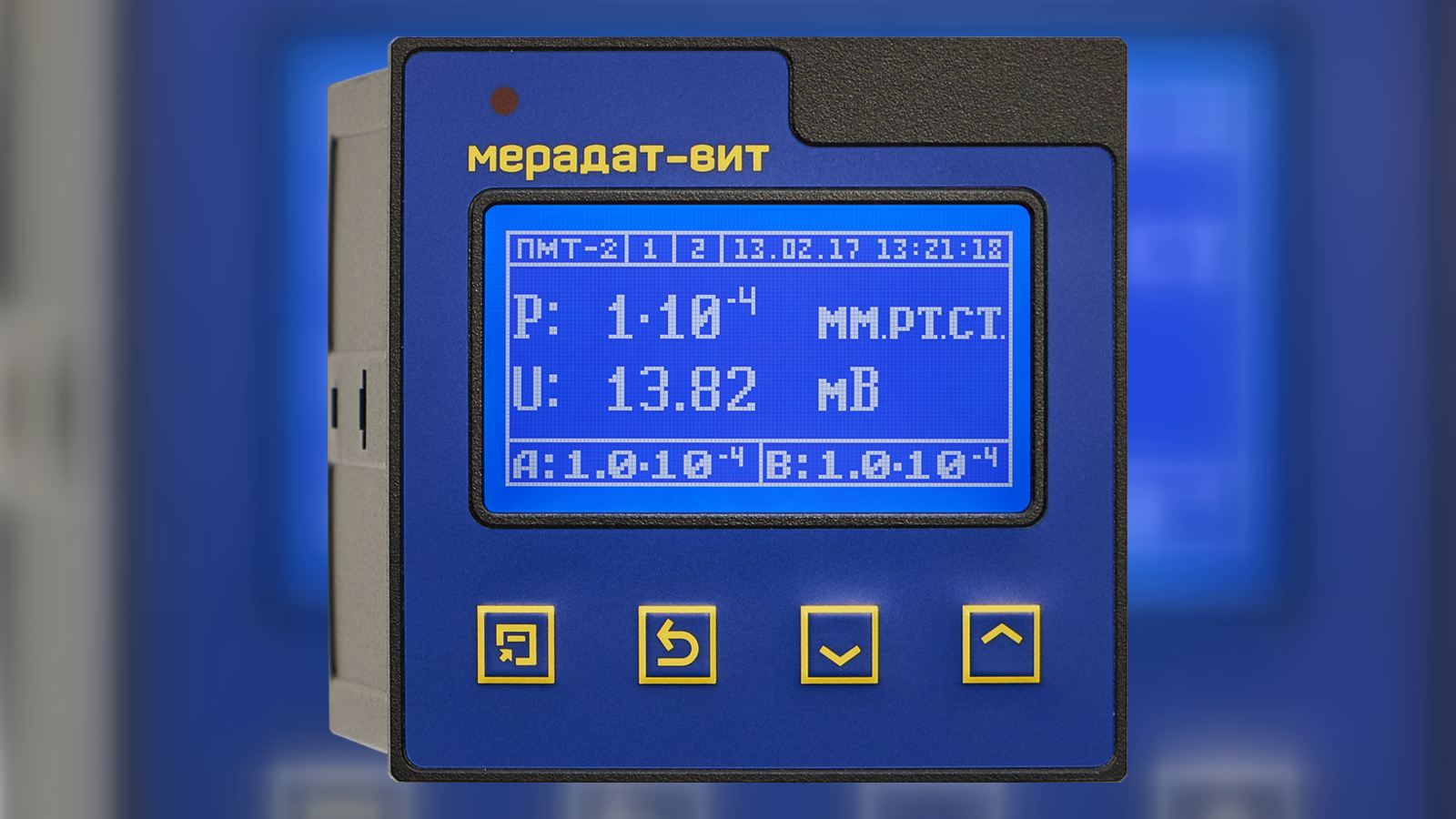

The Meradat-VIT16T5 is a single-channel thermal vacuum-gauge controller with a graphical LCD. It measures dry-air and nitrogen pressure using a compatible PMT-6-3 / PMT-6-3M-1, PMT-2, PMT-4M or SK-TP4 primary sensor. It is not the SK-TS6 version; use the VIT16T6 for that sensor.
| Supported sensors | PMT-2, PMT-4M, SK-TP4 and PMT-6-3 / PMT-6-3M-1 |
|---|---|
| PMT-2 / PMT-4M / SK-TP4 operating range | 1.3 × 10−2 to 2.7 × 101 Pa |
| PMT-2 / PMT-4M / SK-TP4 measurement range | 1.3 × 10−1 to 2.7 × 101 Pa |
| PMT-6 range | 1.3 × 10−1 to 1.0 × 105 Pa |
| Accuracy limits | ±30% for PMT-2, PMT-4M and SK-TP4 from 0.133 to 13.33 Pa; for PMT-6, ±30% from 1.33 to 1.0 × 104 Pa and ±50% in the remaining stated regions |
| Display | 128 × 64 graphical LCD with numeric, trend and pressure screens |
| Relay outputs | 2 changeover relays |
| Analog output | 0–20 mA; load ≤500 Ω |
| Communications | RS-485, Modbus ASCII/RTU |
| Archive | Archive memory; confirm whether the supplied modification has 2 MB or 4 MB |
| Power | 230 V, 50 Hz; ≤15 VA |
| Mounting | Panel mount, approximately 96 × 96 mm front format |
| Operating conditions | +10 to +40 °C; relative humidity up to 75% at +30 °C, non-condensing |
Relay, analog-output, RS-485 and archive functions depend on the selected modification. The manufacturer documentation identifies Russian State Register entry No. 41616-09, procedure MI 140-89 and a one-year verification interval. Confirm current validity and jurisdictional acceptance.
The technical infographic, video and slide deck from the source page are intentionally omitted. Confirm the sensor model, cable, exact output/archive configuration, relay rating, Modbus documentation and verification certificate before ordering.
