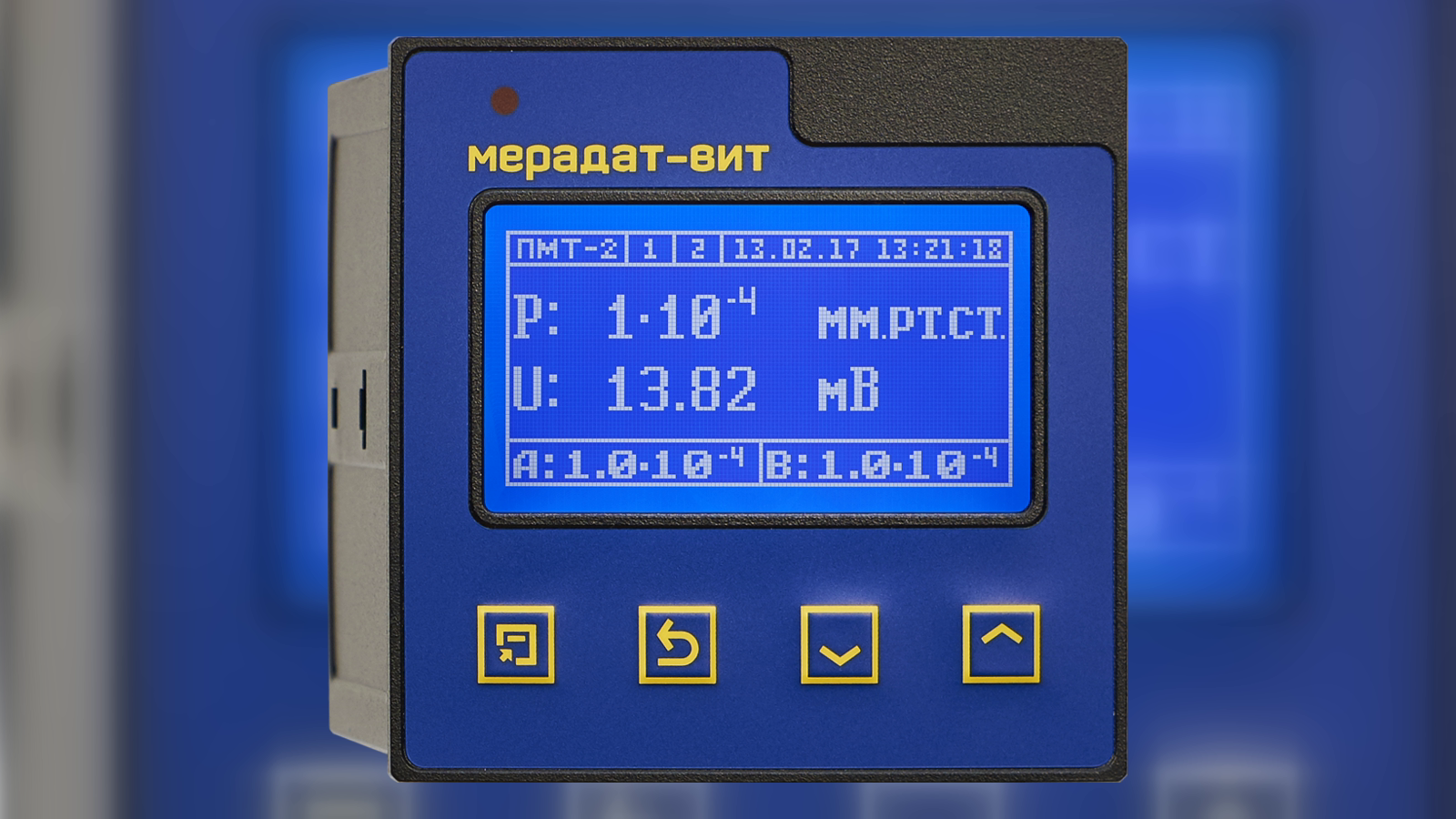

Meradat-VIT16T6 Thermal Vacuum Gauge
The Meradat-VIT16T6 is a single-channel thermal vacuum-gauge controller with a graphical display. It supports the SK-TS6 wide-range sensor together with PMT-2, PMT-4M and SK-TP4 sensors for dry-air and nitrogen pressure measurement.
| Supported sensors | PMT-2, PMT-4M, SK-TP4 and SK-TS6/K/25 |
|---|---|
| PMT-2 / PMT-4M / SK-TP4 operating range | 1.3 × 10−2 to 2.7 × 101 Pa |
| PMT-2 / PMT-4M / SK-TP4 measurement range | 1.3 × 10−1 to 2.7 × 101 Pa |
| SK-TS6 range | 1.3 × 10−1 to 1.0 × 105 Pa in the source configuration |
| Accuracy limits | ±30% for PMT-2, PMT-4M and SK-TP4 from 0.133 to 13.33 Pa; for SK-TS6, ±30% from 1.33 to 1.0 × 104 Pa and ±50% in the remaining stated regions |
| Display | 128 × 64 graphical LCD with numeric, trend and pressure screens |
| IP67 front-panel version | Approximately 103 × 103 × 95 mm; exact enclosure and installation requirements must be confirmed |
| Relay outputs | 2 changeover relays |
| Analog output | 0–20 mA; load ≤500 Ω |
| Communications | RS-485, Modbus ASCII/RTU |
| Archive | Archive memory; confirm exact capacity for the supplied modification |
| Power | 230 V, 50 Hz; ≤15 VA |
| Standard mounting | Panel mount, approximately 96 × 96 mm front format |
Relay, analog-output, RS-485 and archive functions depend on the selected modification. The source documentation identifies Russian State Register entry No. 41616-09, verification procedure MI 140-89 and a one-year verification interval; confirm current validity and destination-country acceptance.
The technical infographic, video and slide deck from the source page are intentionally omitted. Confirm sensor model, cable, standard or IP67-front version, output/archive configuration, Modbus documentation and verification certificate before ordering.
