Large-diameter side-actuated pneumatic gate valves for DN500–DN1250 ISO-F vacuum lines. The KYKY CCQ large-bore series is designed for low-impact isolation in space simulation, accelerator, fusion and other large vacuum systems.
Description

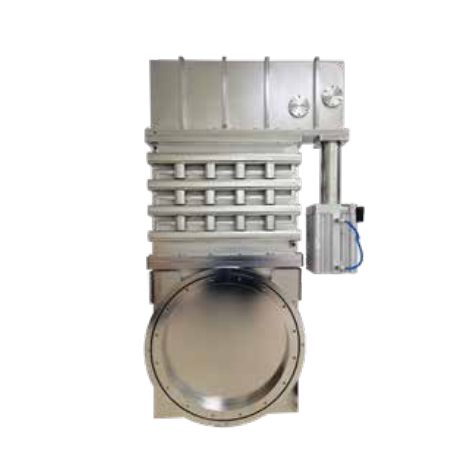

KYKY CCQ Large-Diameter Ultra-High-Vacuum Pneumatic Gate Valves
The large-bore CCQ series places the pneumatic cylinder at the side of the valve to reduce overall height. A 316L welded bellows is used as the moving shaft seal in KYKY's current product description.
| Models / nominal sizes | CCQ-500B, 630B, 800B, 1000B and 1250B; DN500–DN1250 |
|---|---|
| Standard flange | ISO-F |
| Application pressure range | 1 × 105 to 1 × 10−6 Pa |
| Specified leak rate | ≤1.3 × 10−10 Pa·m³/s |
| Drive / operating air | Pneumatic / 0.6–0.7 MPa |
| Position indication | Magnetic switches with status indication |
| Bakeout temperature | 150 °C open; 120 °C closed |
| Mounting orientation | Valve horizontal or vertically upward, subject to the approved drawing |
| Permitted media | Air and non-corrosive gases |
The earlier source record called this a CCD electric series even though its data described a pneumatic actuator. KYKY's current large-diameter catalog identifies the DN500–DN1250 side-actuated family as CCQ.
These heavy valves require engineered supports, lifting points, actuator clearance and interlocked sequencing. Confirm mass, center of gravity, closure differential, solenoid and sensor interfaces for the selected DN.
