Service trap for protecting vacuum equipment after wet testing or exposure to moist parts. The source configuration lists 5 µm filtration, nominal conductance or flow class of 240 m³/h and a KF25 connection.
Description

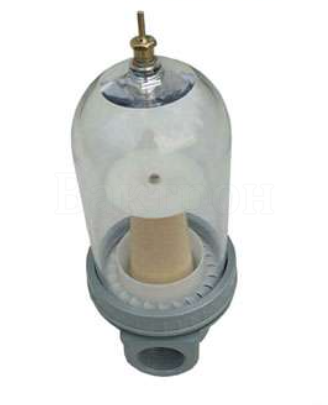

LeakLab F240 Moisture and Particle Trap
The F240 is installed upstream of vacuum equipment to capture entrained moisture and particles during initial evacuation. It is particularly useful when a component has previously undergone hydrostatic testing.
| Particle rating stated in the source record | 5 µm |
|---|---|
| Nominal source flow or conductance class | 240 m³/h |
| Connection stated in source record | KF25 |
“240 m³/h” is not a guaranteed system pumping speed. Effective speed depends on pressure, media loading, element geometry and line conductance. Confirm whether the element adsorbs vapor, separates droplets or only filters particles.
Specify housing pressure rating, media, capacity, pressure drop, regeneration or replacement method, seals and gas compatibility. Do not expose a loaded trap to heat or air until the captured process material has been assessed.
