High-conductance inlet filter for protecting pumps, gauges and leak detectors from dry particles. Element grade, flange, conductance, pressure drop, dust capacity and cleaning method are selected for the process.
Learn More
Description

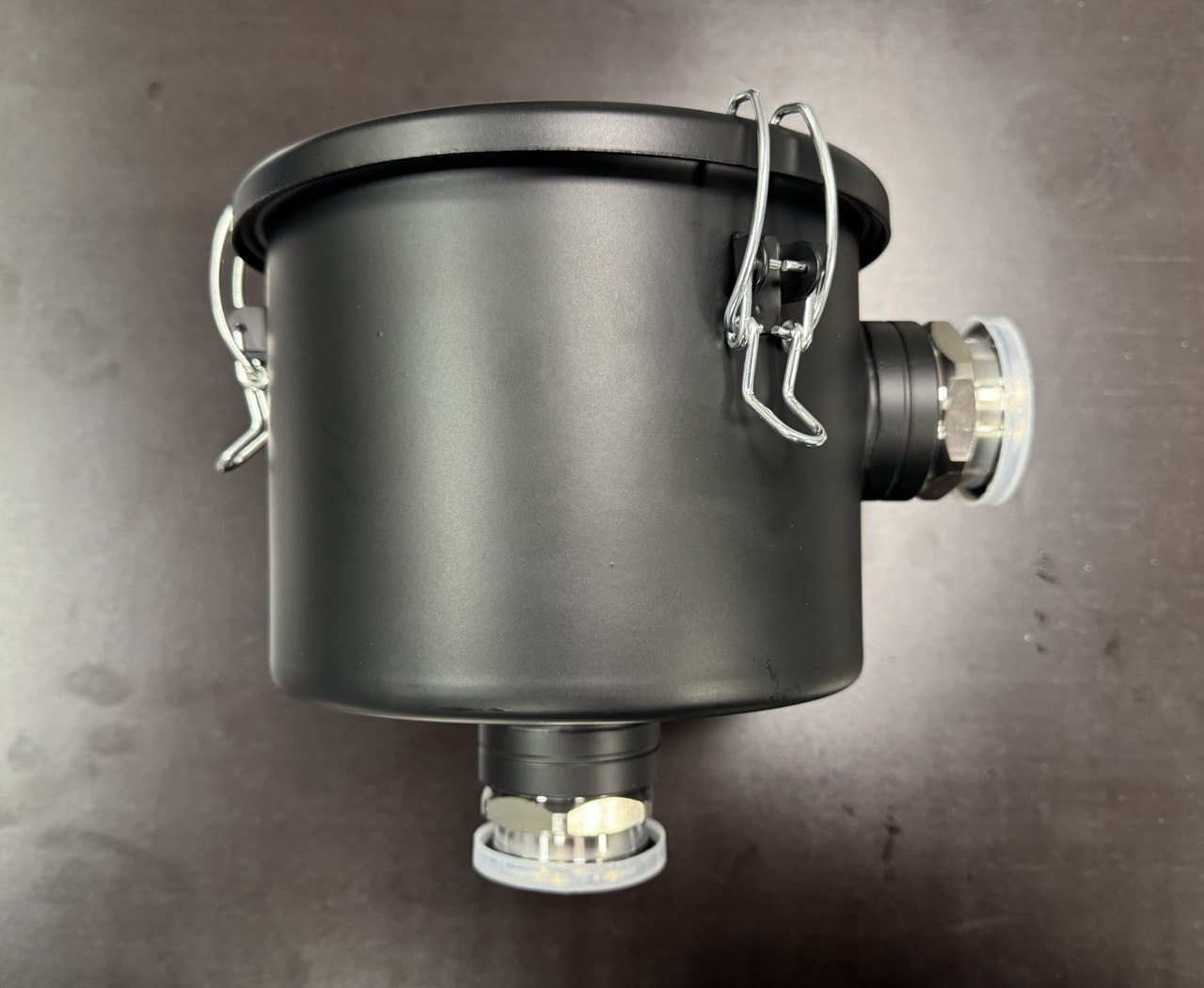

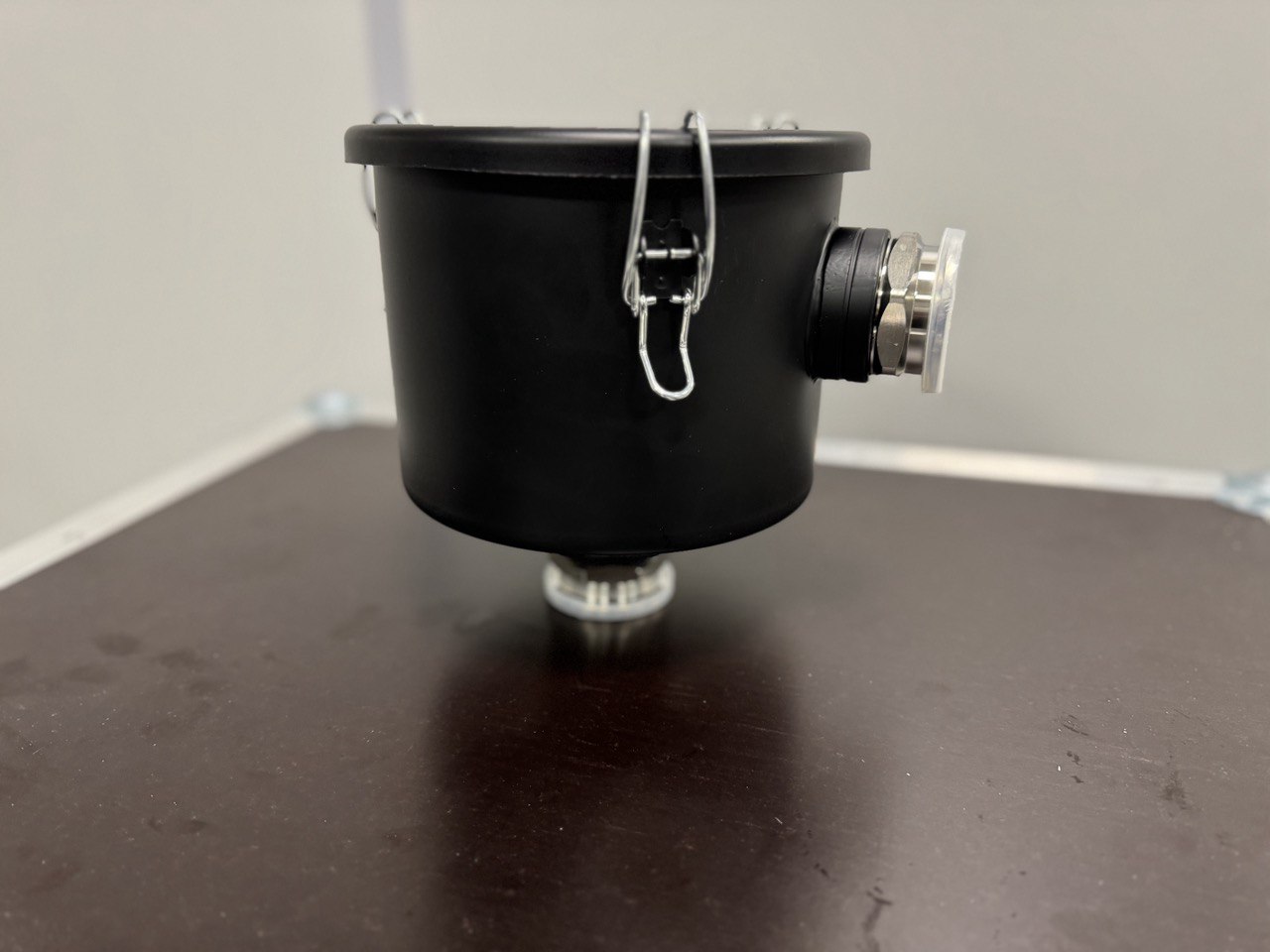

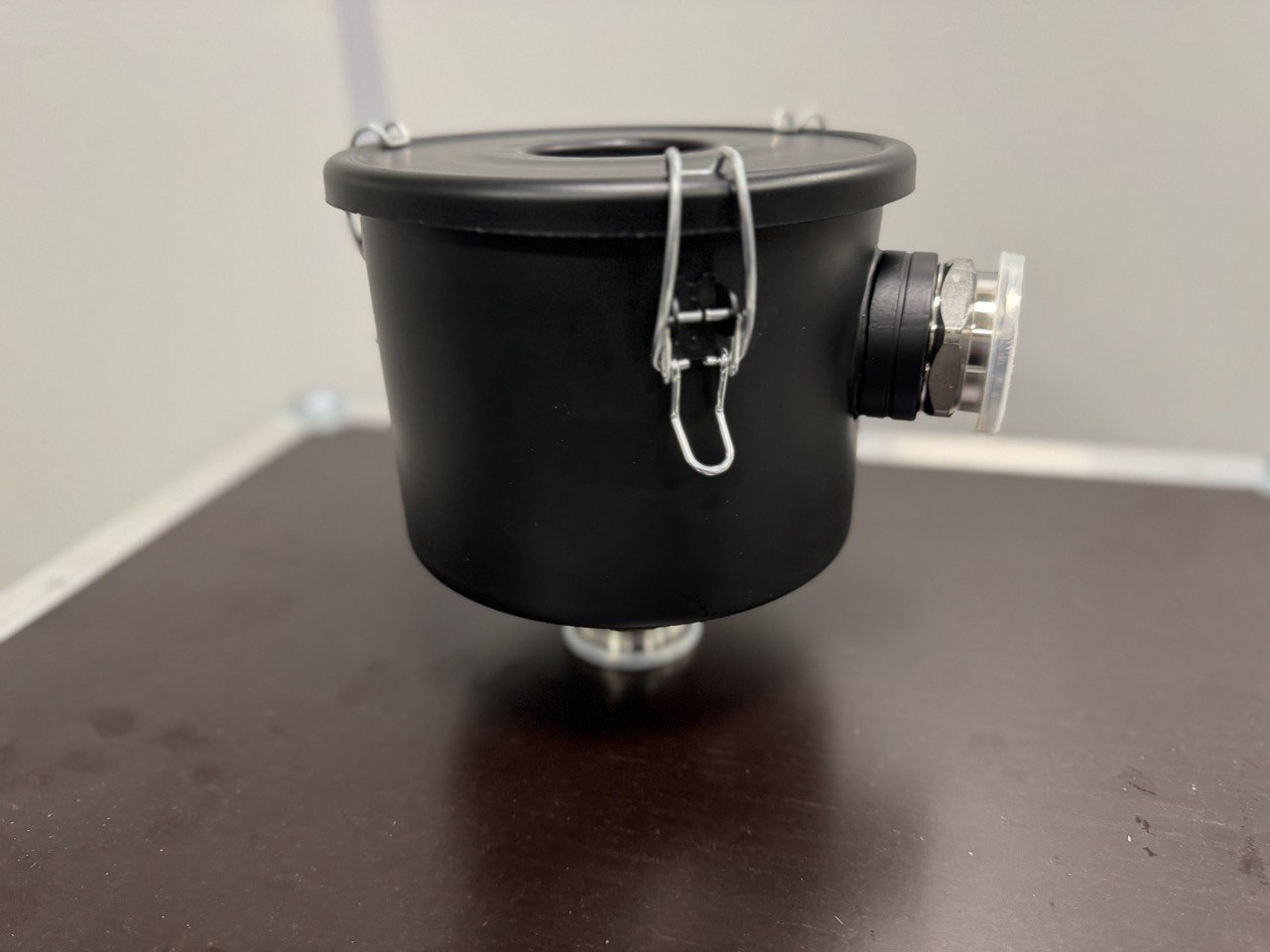

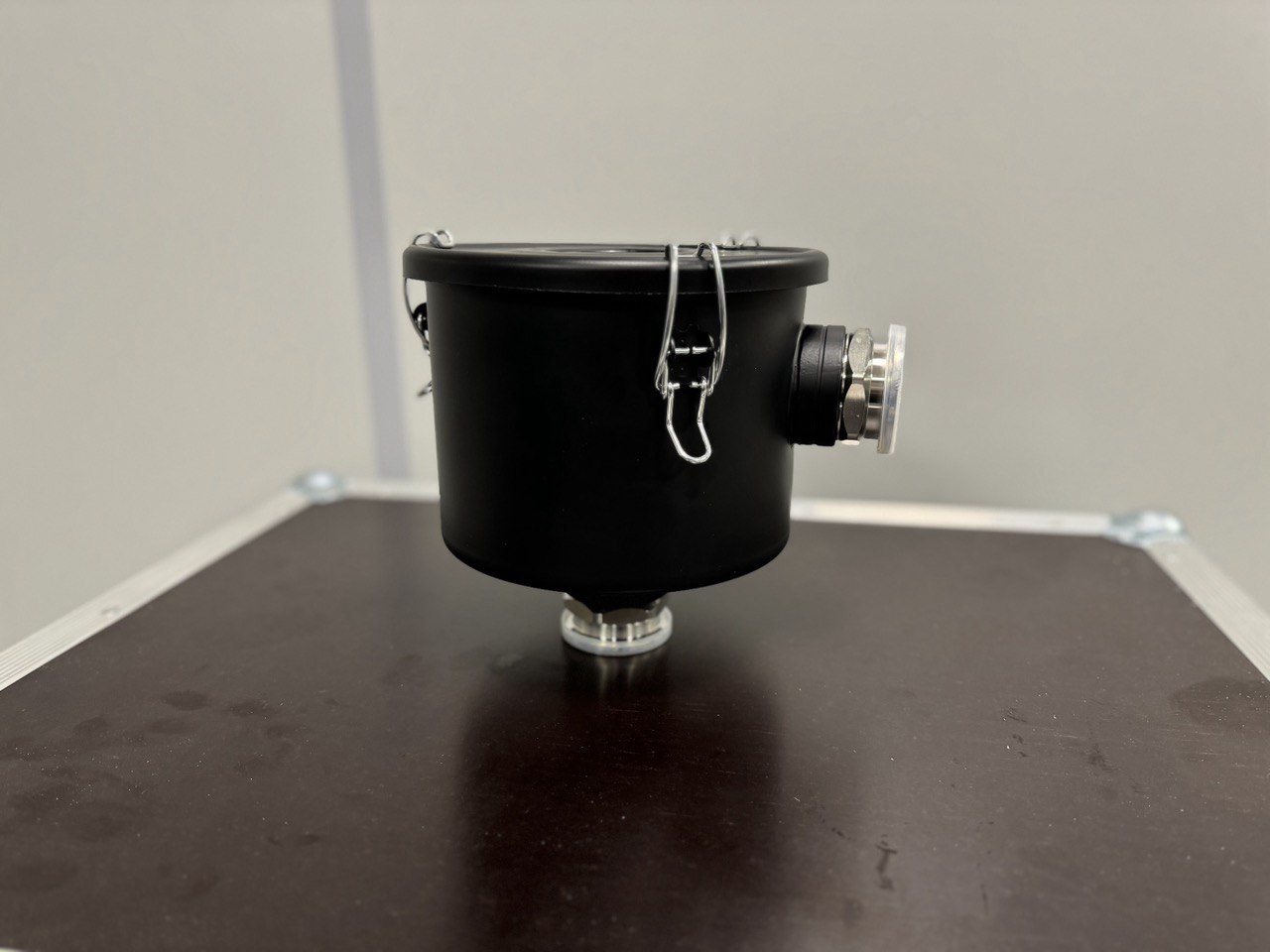

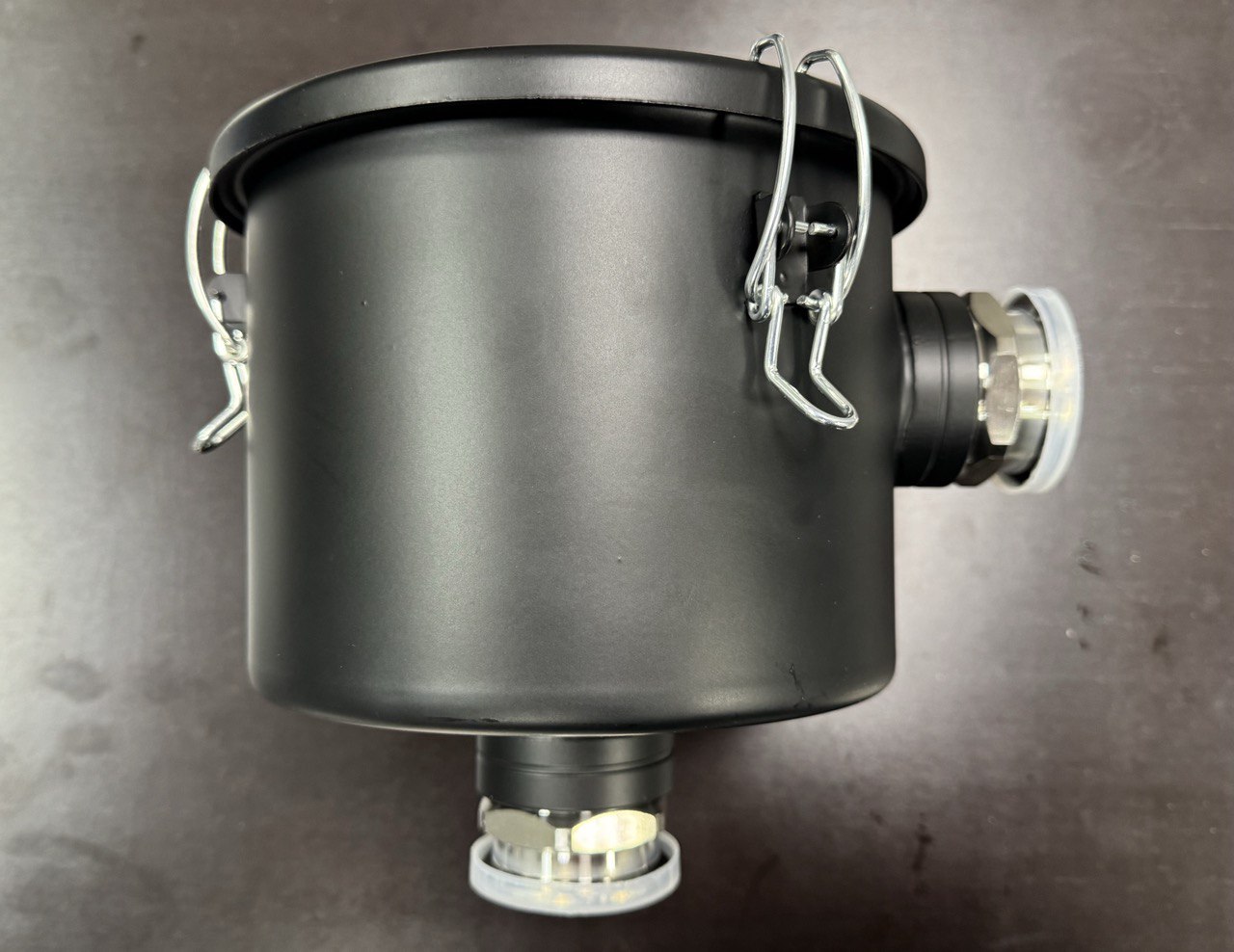

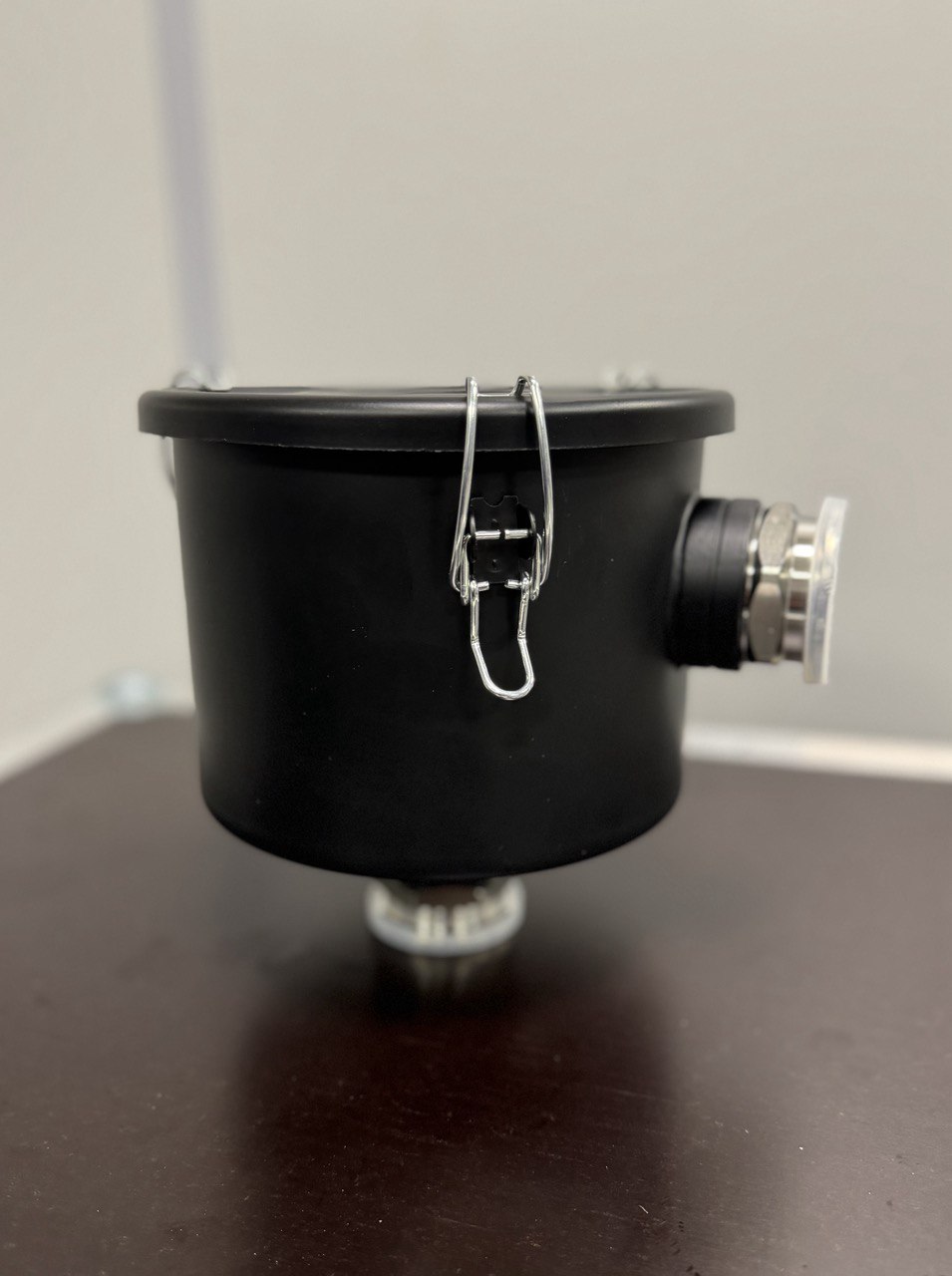

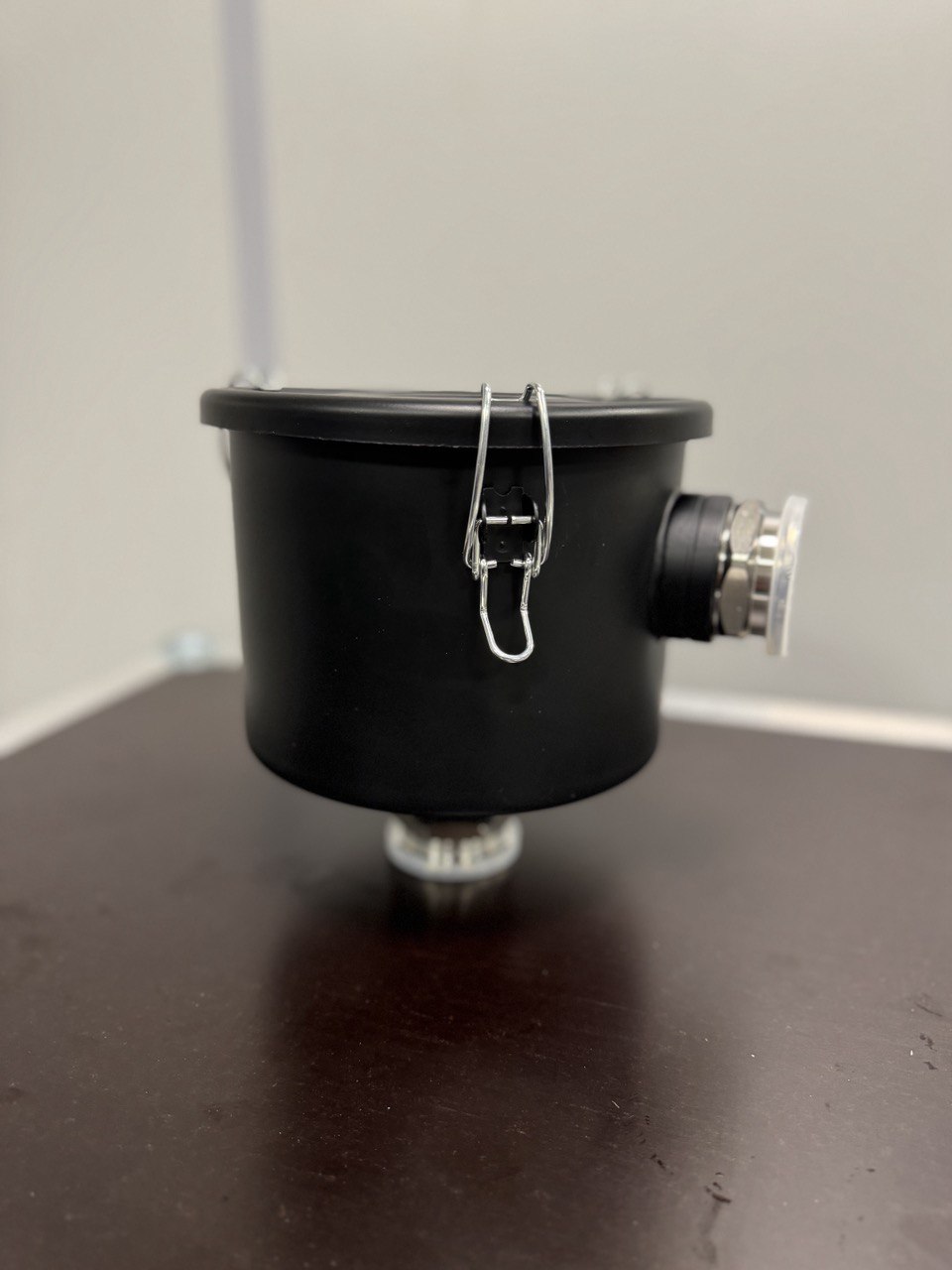

LeakLab F360 Vacuum Dust Filter
The F360 is a configurable particle filter for roughing lines and vacuum equipment exposed to powder, scale or machining debris. It is intended to reduce contamination of pumps, valves and measurement devices.
Selection data
- Particle-size distribution and required filtration grade
- Gas flow, pressure range and allowable conductance loss
- Flange standard and installation orientation
- Housing and seal compatibility with process gases
- Element capacity, differential-pressure monitoring and service interval
The F360 designation alone does not establish a universal 360 m³/h effective speed. Obtain a conductance or pressure-drop curve for the selected element and operating pressure.
Use appropriate containment and personal protection when servicing filters that may hold hazardous or reactive dust.
