The KTK-2UP capillary reference leak produces a controlled tracer-gas flow through a glass capillary. LeakLab offers helium reference leaks based on helium-permeable capillary elements.
Description
Key Features and Benefits
- Operating principle: a capillary reference leak with a flow of approximately 10−9 Pa·m3/s.
- Gas options: the reference leak can be filled with different gases on request.
- Scope of supply:
- Reference leak in a dedicated protective case.
- Filter element that helps prevent contamination from the test object.
- Document stating the accurately measured flow.
Measured Parameters
- Flow stated in the passport: 2.97 × 10−9 Pa·m3/s at 23 °C.
- Flow measured in the laboratory: 2.3 × 10−9 Pa·m3/s, including temperature correction.
Helium reference leaks are used to set up leak-testing equipment on large vacuum systems and chambers. Together with a leak detector and external vacuum pumps, they provide a known tracer-gas flow for correct instrument setup.
Ordering Information
Contact LeakLab to order the product or request additional information.
Purpose
A reference leak is a device that produces a stable tracer-gas flow of known magnitude, such as a helium flow. It is used to check the sensitivity and calibrate equipment for leak detection and leak-tightness testing.
The KTK-2UP capillary helium reference leak is designed to generate a stable helium flow for setting up helium leak detectors and determining the sensitivity of leak-detection systems. It can be used for both vacuum and sniffer leak testing.

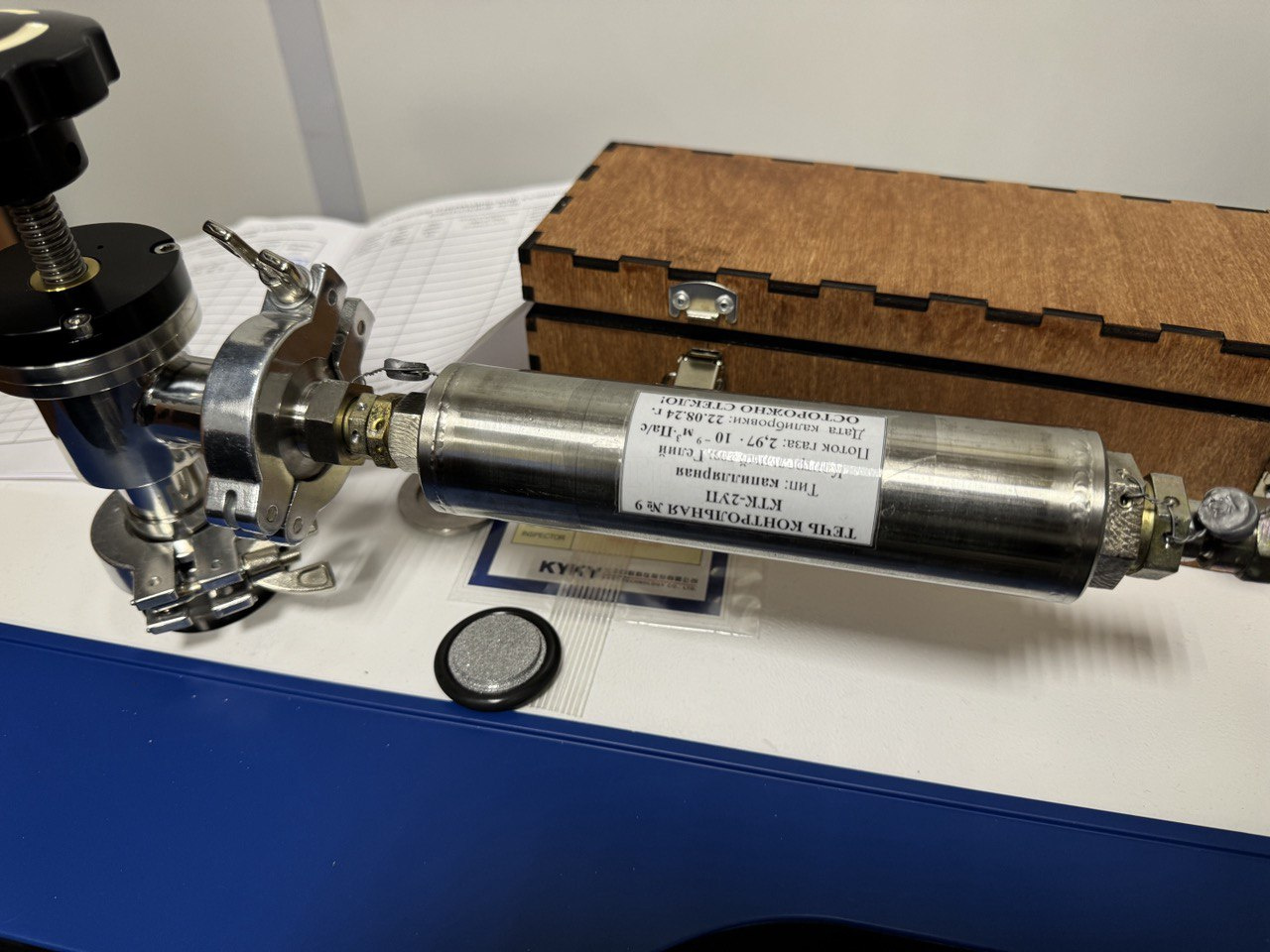

The assembly includes a body that serves as the helium reservoir, a capped charging valve for filling the device, and a KF25 flange for reliable connection to the system under test.
KTK-2UP Technical Specifications
- Tracer gas: 100% helium
- Helium-flow range: 2.67 × 10−9 to 6.5 × 10−8 Pa·m3/s
- Measurement error: ±30%
- Operating-pressure range: 0.5 to 10 kgf/cm2
- Helium-flow temperature correction: 1% per 1 °C
- Maximum dimensions: 42 × 205 mm
- Calibration interval: 12 months
- Weight: no more than 1 kg
KTK-2UP reference leaks can be manufactured to meet customer requirements for tracer-gas flow, allowing them to be used in different leak-testing systems.
