KF25 valve assembly for connecting a helium reference leak to a compatible leak detector for routine response checks and calibration. Reference value, certificate, valve conductance and connection hardware are specified per order.
Description

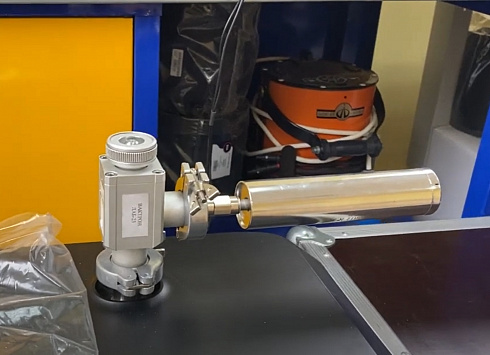

LeakLab K-KF25 Reference-Leak Connection Kit

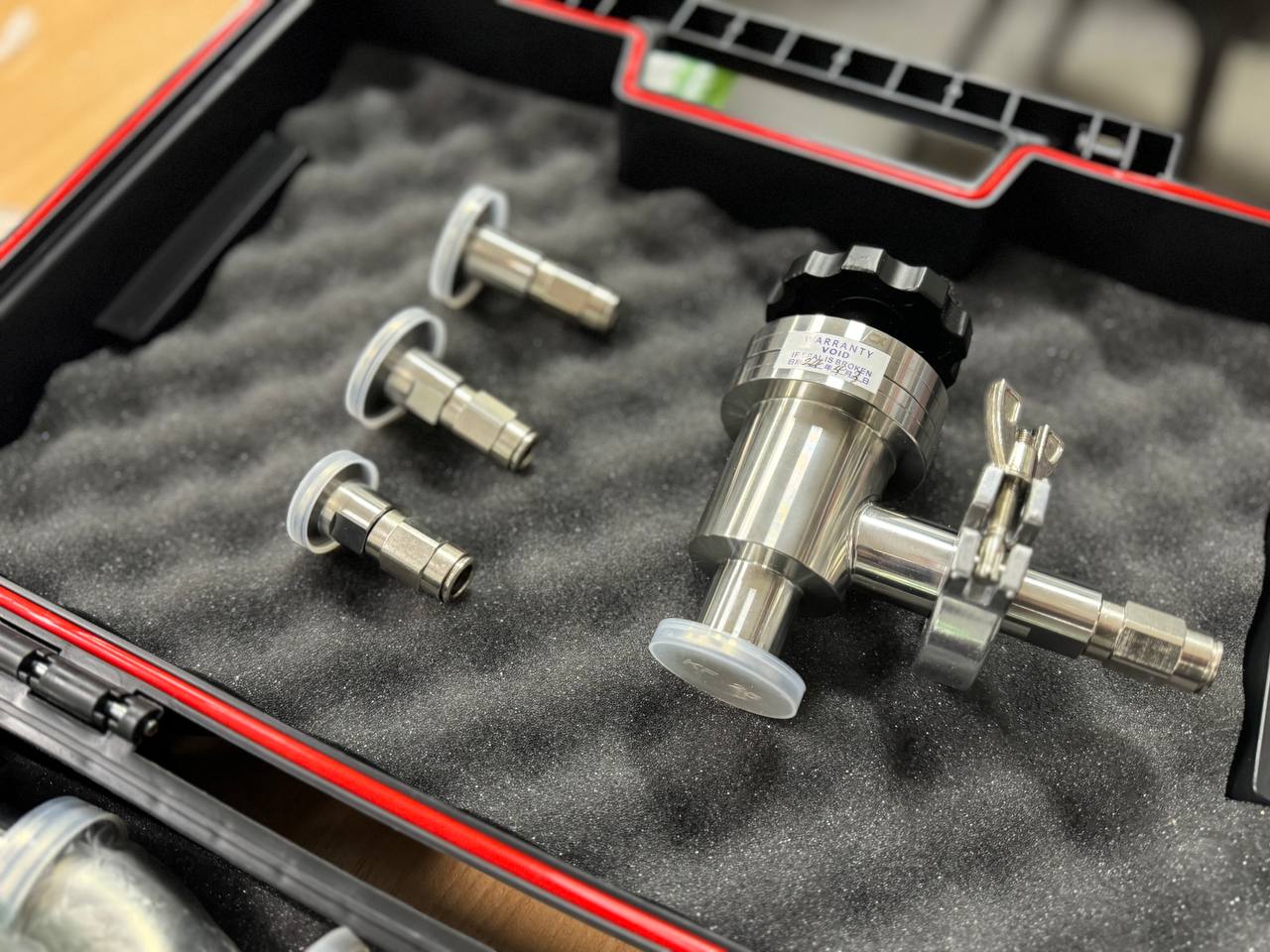

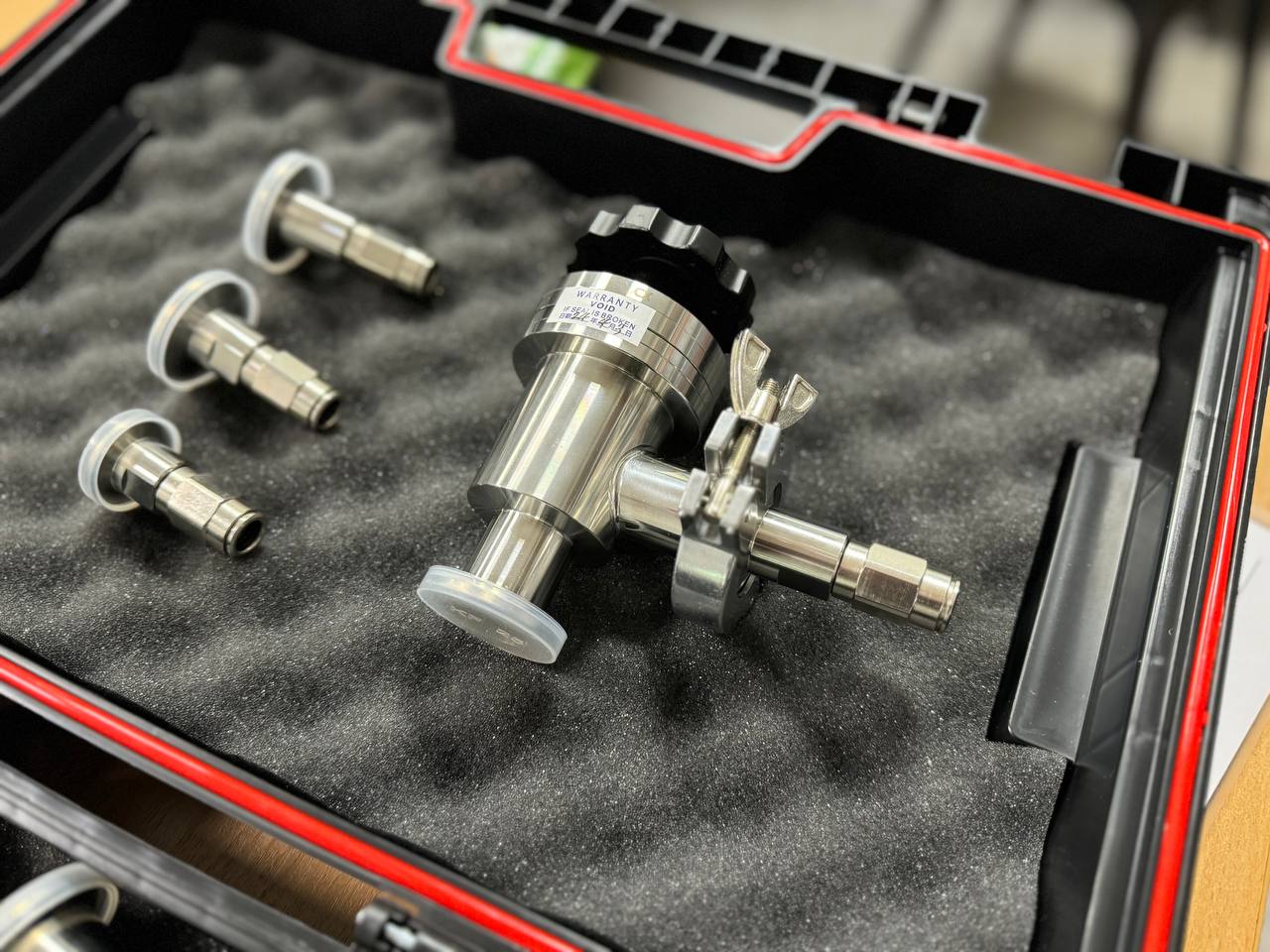

The kit provides a repeatable way to isolate and admit a helium reference leak at a KF25 test port. A typical assembly includes a manual valve, KF25 fittings, seals and the selected reference leak.
Specify with the order
- Nominal helium flow and usable pressure or temperature conditions
- Reference-leak type, serial number and certificate scope
- Valve type, internal volume and leak tightness
- KF25 hardware, orientation and protective case
A response check confirms instrument behavior at one test point; it is not automatically a complete calibration over the detector's entire range. Account for reference-leak temperature dependence, stabilization time, background and certificate uncertainty.
No stock status or legally recognized verification is implied. Traceability, laboratory, uncertainty and recalibration interval must be confirmed for the destination market.
Specifications
| Product Label | Recommended |
