Multi-channel KYKY KGC-101 / KGC-103 controller for compatible vacuum transmitters including KYP-101, KYM-240, KYF-180, KYF-2YZ and ZJ-2Y configurations. Up to six control loops, multiple display units, RJ45/FCC68 and DB15 interfaces, and 10 measurements per second per channel. Confirm controller model, channel cards, sensor compatibility and power input before ordering.
Description
KYKY KGC-101 / KGC-103 Vacuum Gauge Controller

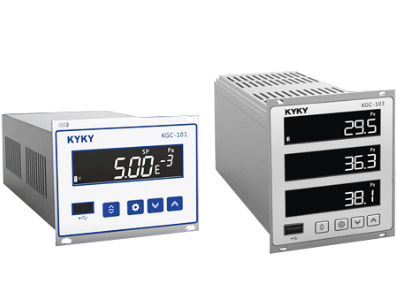

The KGC-101 and KGC-103 provide centralized display and control for compatible KYKY vacuum transmitters. Each channel can operate independently or be combined with other sensor types to monitor a wider pressure range. Up to six integrated setpoints or control loops can be used for vacuum-system interlocks and automation.
| Compatible transmitters stated by manufacturer | KYP-101, KYM-240, KYF-180, KYF-2YZ, ZJ-2Y and applicable compatible configurations |
|---|---|
| Display units | mbar, Torr, Pa, micron, hPa, kPa and V |
| Sensor interfaces | RJ45/FCC68, DB15 and model-specific sockets |
| Transmitter power output | 24 V DC ±5%, ripple Vpp ≤0.5 V |
| Controller power input | 130–240 V AC, 50/60 Hz |
| Full-scale conversion error | ≤0.01% full scale typical; ≤0.1% over full temperature and long-term operation |
| Zero drift | ≤0.005% full scale typical; ≤0.02% over full temperature and long-term operation |
| Measurement rate | 10 readings/s per channel |
| ADC resolution | 0.001% full scale |
| Control loops | Up to 6 |
| Weight | Approximately 1 kg |
| KGC-101 enclosure | 106 × 84 × 206 mm, manufacturer width × height × length |
| KGC-103 enclosure | 106 × 129 × 235 mm, manufacturer width × height × length |
The controller's electronic conversion specifications do not replace the accuracy specification of the connected vacuum transmitter. Overall system uncertainty is determined by the sensor, gas, range, cable, controller configuration and calibration.
Confirm the exact KGC model, installed channel cards, supported transmitter revision, sensor cable, setpoint outputs, communications options, panel cutout, mains plug and supplied documentation before ordering.
