Compact KYKY KYP-101 Pirani transmitter for 1 × 10⁵ to 1 × 10⁻² Pa. Effective measurement range: 3 × 10³ to 5 × 10⁻¹ Pa; the outer portions are reference ranges. DC 24 V supply, FCC68/RJ45 connection and KF16 flange. Confirm gas, output scaling, cable and controller compatibility before ordering.
Description

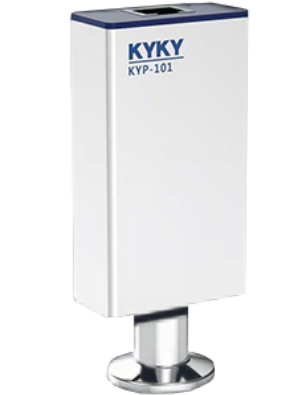

KYKY KYP-101 Pirani Vacuum Transmitter
The KYP-101 measures rough and low vacuum using the pressure-dependent thermal conductivity of a gas. Its compact stainless-steel sensing unit, temperature compensation and logarithmic output support integration in backing lines, vacuum stations and leak detectors.
| Overall measurement range | 1 × 105 to 1 × 10−2 Pa |
|---|---|
| Effective measurement range | 3 × 103 to 5 × 10−1 Pa |
| Reference ranges | 1 × 105 to 3 × 103 Pa and 5 × 10−1 to 1 × 10−2 Pa |
| Accuracy stated on the current product page | ±30% of reading |
| Supply | 24 V DC ±20%, 0.2 A |
| Permissible pressure | 3 atm |
| Adjustment | Push-button zero/span adjustment |
| Electrical connection | 8-pin FCC68/RJ45 |
| Vacuum connection | KF16 |
| Recommended mounting | Vertical |
| Approximate dimensions | 45 × 25 × 110 mm |
Pirani-gauge indication depends on gas thermal conductivity. The stated calibration and pressure conversion apply to the reference gas and conditions in the manufacturer documentation; correction may be required for other gases.
The sensing unit is described as replaceable. Confirm the exact transmitter revision, gas, output-voltage equation, cable pinout, controller, flange, bakeout limits and supplied accessories before ordering.
The KYP-101 can be used with a compatible KYKY controller, including an appropriate KGC-101 or KGC-103 configuration.
