Automatic butterfly valve for closed-loop vacuum-process pressure control. GID variants cover DN25–DN63 connections, accept 0–10 V gauge feedback and support analog control plus RS-485 communication from a 24 V DC supply.
Description
KYKY GID Automatic Pressure-Control Butterfly Valve
The GID regulates effective pumping speed by rotating a butterfly disc between the chamber and pump. The controller can operate in pressure or position mode using real-time gauge feedback for thin-film deposition, etching, display, photovoltaic and other controlled-vacuum processes.

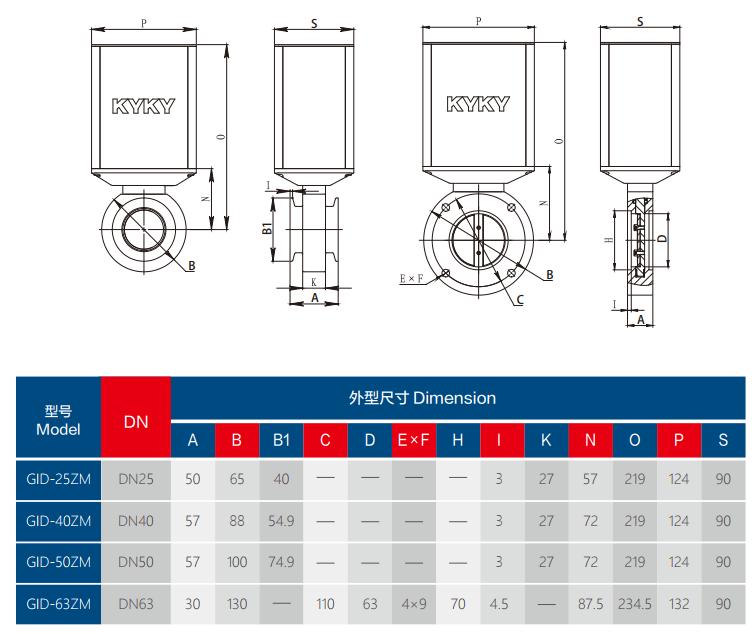

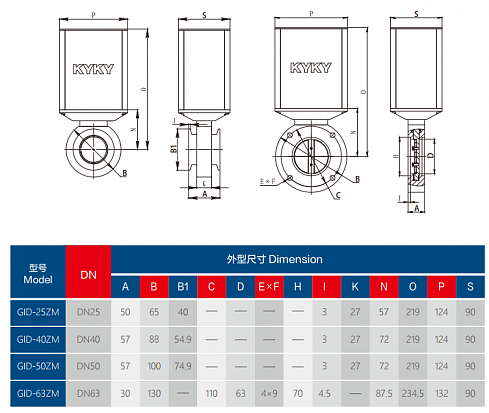

| Listed variants | GID-25ZM with KF25 or KF40, GID-40ZM with KF40, GID-50ZM with KF50, and GID-63ZM with ISO-F63 |
|---|---|
| Pressure range | 1.2 × 105 to 1 × 10−6 Pa in the source catalog record |
| Specified total leak rate | ≤1.3 × 10−10 Pa·m³/s |
| Maximum opening differential | ≤1.2 × 105 Pa |
| Pressure-control accuracy | <0.1% full scale under stated test conditions |
| Position accuracy / resolution | ±0.1% full scale / 16,384 steps stated in the source catalog |
| Gauge input | 0–10 V DC |
| Control interfaces | 0–10 V analog and RS-485 via DB9 |
| Supply | 24 V DC ±10% |
| Materials stated in source record | 316L body and disc; FKM or version-dependent FFKM seal |
Control performance depends on chamber volume, gas species and flow, pump speed, gauge dynamics, tuning and valve sizing. Confirm the current model datasheet, seal, connector pinout, protocol, response time and fail position.
The source page used the generic name APC; KYKY identifies the exhibited automatic pressure-control butterfly valve as the GID series.
