Oil-free 2L-200C diode sputter-ion pump with a stated nitrogen pumping speed of 220 L/s and ultimate pressure of ≤1 × 10⁻⁸ Pa. The source configuration includes a bakeout jacket and high-voltage power supply. Confirm the current datasheet and scope of supply before ordering.
Description

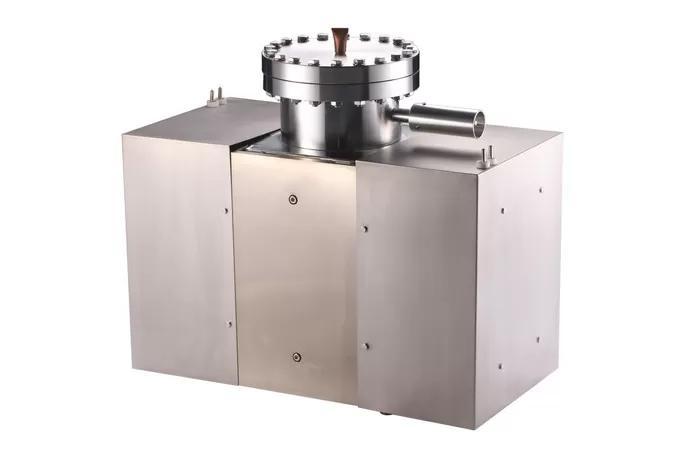

2L-200C Diode Sputter-Ion Pump
The 2L-200C is a medium-size oil-free ion pump for long-cycle vacuum processes, leak-testing stations and analytical systems. It has no rotating parts and therefore adds no mechanical pump vibration or hydrocarbon backstreaming to the vacuum chamber.
| Nitrogen pumping speed | 220 L/s |
|---|---|
| Argon pumping speed stated in source record | Approximately 24 L/s |
| Ultimate pressure | ≤1 × 10−8 Pa |
| Maximum start pressure | ≤5 × 10−4 Pa |
| Inlet flange | CF150 |
| Maximum bakeout temperature | <200 °C with magnets / <300 °C without magnets |
| Bakeout jacket | Included in the source configuration |
| High-voltage power supply | Included in the source configuration |
| Indicative dimensions | Approximately 500 × 265 × 430 mm |
Use a short, high-conductance CF connection, an appropriate preliminary vacuum stage and controlled bakeout. Monitor discharge current and follow the manufacturer's regeneration procedure for inert or heavy-gas service.
Confirm the current manufacturer datasheet, gas-specific performance, voltage and polarity, controller, cable, magnets, bakeout hardware and flange before ordering. LeakLab integration and commissioning services are available subject to an agreed scope.
