Water-cooled variable-pitch dry screw vacuum pump with a nominal pumping speed of 100 m³/h and a stated ultimate pressure of 1 Pa. The SSH100H provides nitrogen purge capability, RS-485 communication and remote I/O for clean industrial vacuum processes.
Description

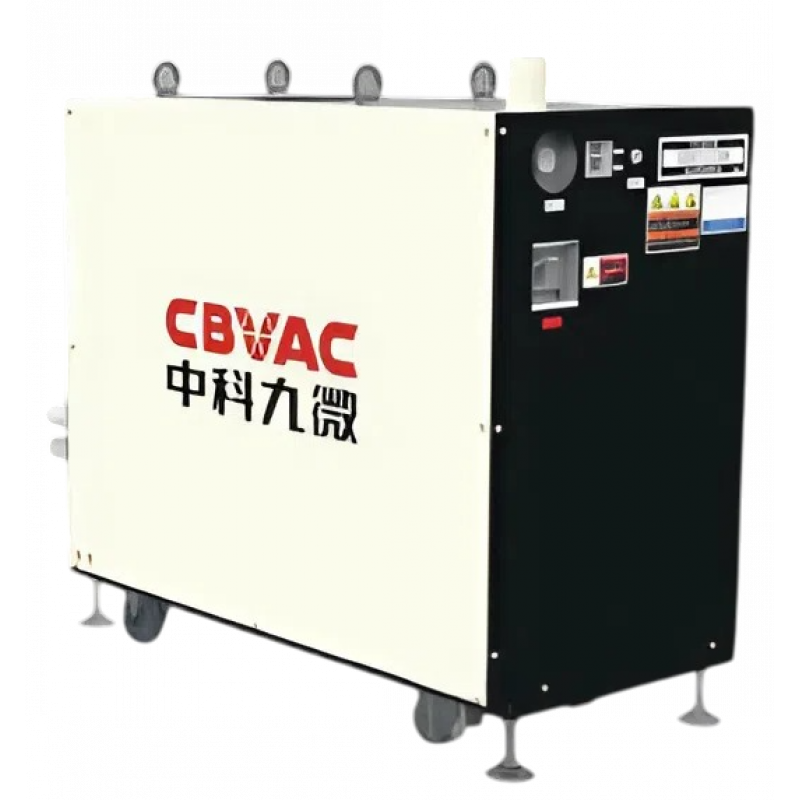

CBVAC SSH100H Dry Screw Vacuum Pump
The SSH100H is a variable-pitch dry screw pump for processes that require an oil-free pumping chamber. A water-cooled permanent-magnet synchronous drive, nitrogen purge ports and remote control support integration into industrial vacuum equipment.
| Nominal pumping speed | 100 m³/h (1,667 L/min) |
|---|---|
| Stated ultimate pressure | 1 Pa |
| Motor | Water-cooled permanent-magnet synchronous drive |
| Installed / stated operating power | 5.5 kW / approximately 2.3 kW |
| Electrical supply | Three-phase 380 V or 220 V, 50/60 Hz; confirm exact version |
| Inlet / exhaust | ISO63 / KF40 |
| Cooling water stated in source record | 4–8 L/min, 0–25 °C, 3–5 kgf/cm²; Rc 3/8-inch connection |
| Nitrogen purge stated in source record | 0.1–0.2 MPa; 12–100 L/min; 1/4-inch tube connection |
| Control | RS-485 and remote I/O |
| Noise | ≤75 dB(A) under the stated conditions |
| Dimensions / weight | Approximately 850 × 400 × 570 mm / 180 kg |
| Ambient conditions | +5 to +40 °C; relative humidity ≤80% |
Actual power and pumping speed depend on inlet pressure, gas load, purge flow, cooling and drive settings. Process gases must be checked for corrosion, condensation, polymerization, ignition and toxicity; dry operation does not mean universal chemical compatibility.
Confirm voltage, phase, inlet variant, exhaust treatment, water quality, purge scheme, interface protocol, allowable gas load and service plan before ordering. Interlock cooling and exhaust ventilation with pump operation.
