Water-cooled dry vacuum pump system with a nominal pumping speed of 600 m³/h and a stated ultimate pressure of 0.5 Pa. The SSH610H uses variable-pitch pumping stages, nitrogen dilution/seal gas, RS-485 Modbus RTU and remote I/O.
Description

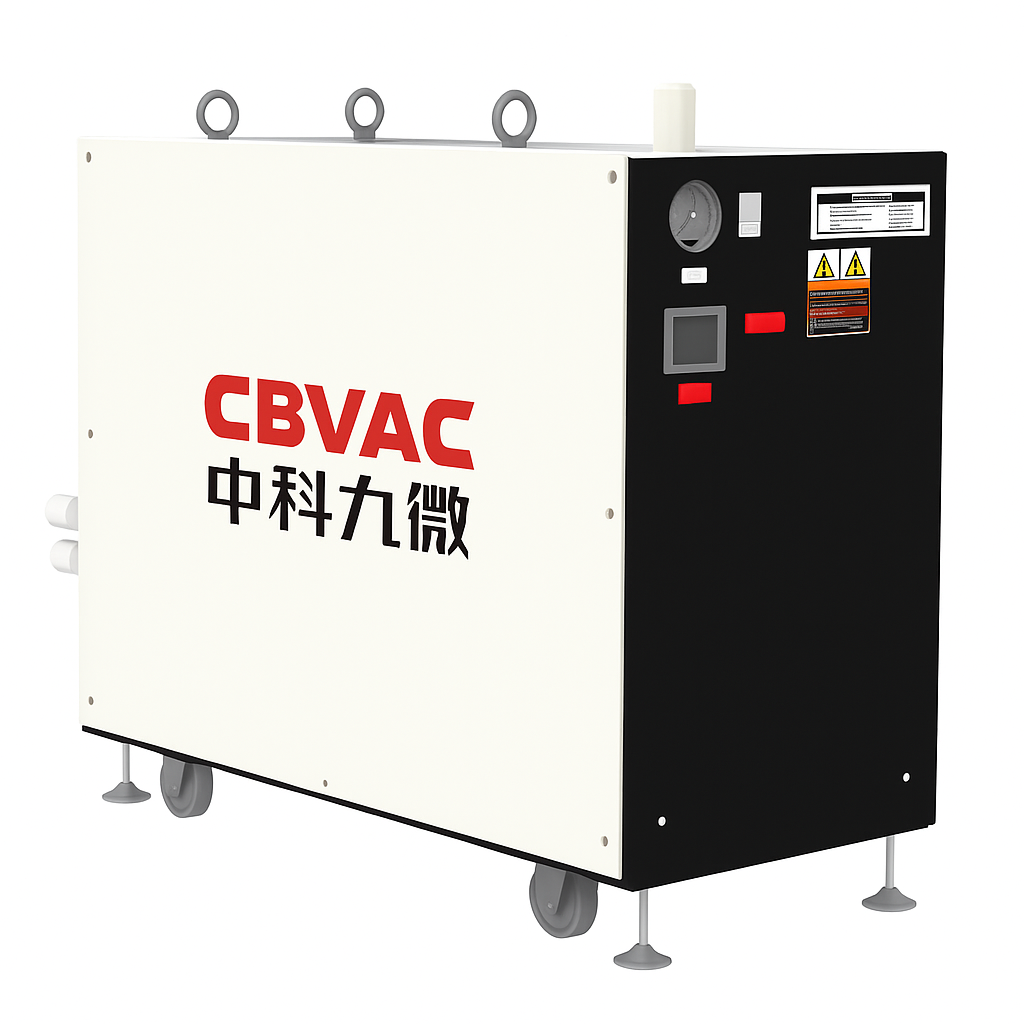

CBVAC SSH610H Dry Vacuum Pump System
The SSH610H is a high-throughput water-cooled dry pumping system for industrial process vacuum. The source configuration uses two controlled drives and provides nitrogen dilution and seal-gas connections.
| Nominal pumping speed | 600 m³/h (10,000 L/min) |
|---|---|
| Stated ultimate pressure | 0.5 Pa |
| Electrical supply | Three-phase 380/220 V, 50/60 Hz |
| Installed drive power | 3.9 + 5.5 kW in the source configuration |
| Stated operating power | Approximately 0.4 + 2.3 kW at the specified condition |
| Inlet / exhaust | VG80 / KF40 |
| Cooling water stated in source record | 4–8 L/min, 0–25 °C, 3–5 kgf/cm²; Rc 3/8-inch connection |
| Nitrogen system stated in source record | 0.1–0.2 MPa; dilution flow 12–100 L/min; seal-gas flow 0–12 L/min |
| Control | RS-485 Modbus RTU and remote I/O |
| Noise | ≤75 dB(A) |
| Dimensions / weight | Approximately 850 × 400 × 800 mm / 310 kg |
| Source ordering reference | 4.5.A5005; confirm current part number |
Installed motor power is not the same as normal electrical consumption. Size electrical protection for starting, fault and worst-case load using the current wiring document.
Confirm process-gas compatibility, purge recipe, cooling-water quality, inlet hardware, exhaust abatement, Modbus map and interlocks. Corrosive, condensable, pyrophoric, flammable or toxic streams require a dedicated process and hazard review.
