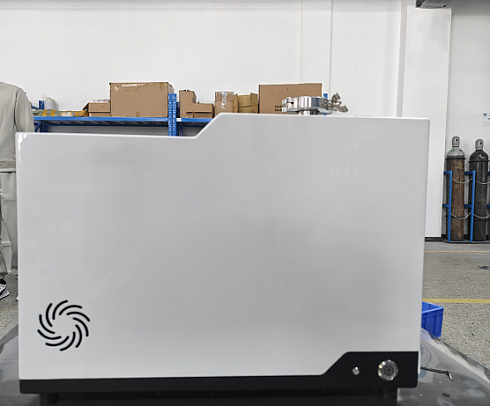

LeakLab Lite Integrable Helium Mass-Spectrometer Leak Detector

Compact helium mass-spectrometer module for integration into automated leak-test systems and service equipment. Guaranteed sensitivity, pumping package, interfaces and cycle performance are defined for the ordered configuration.

Learn More

Description

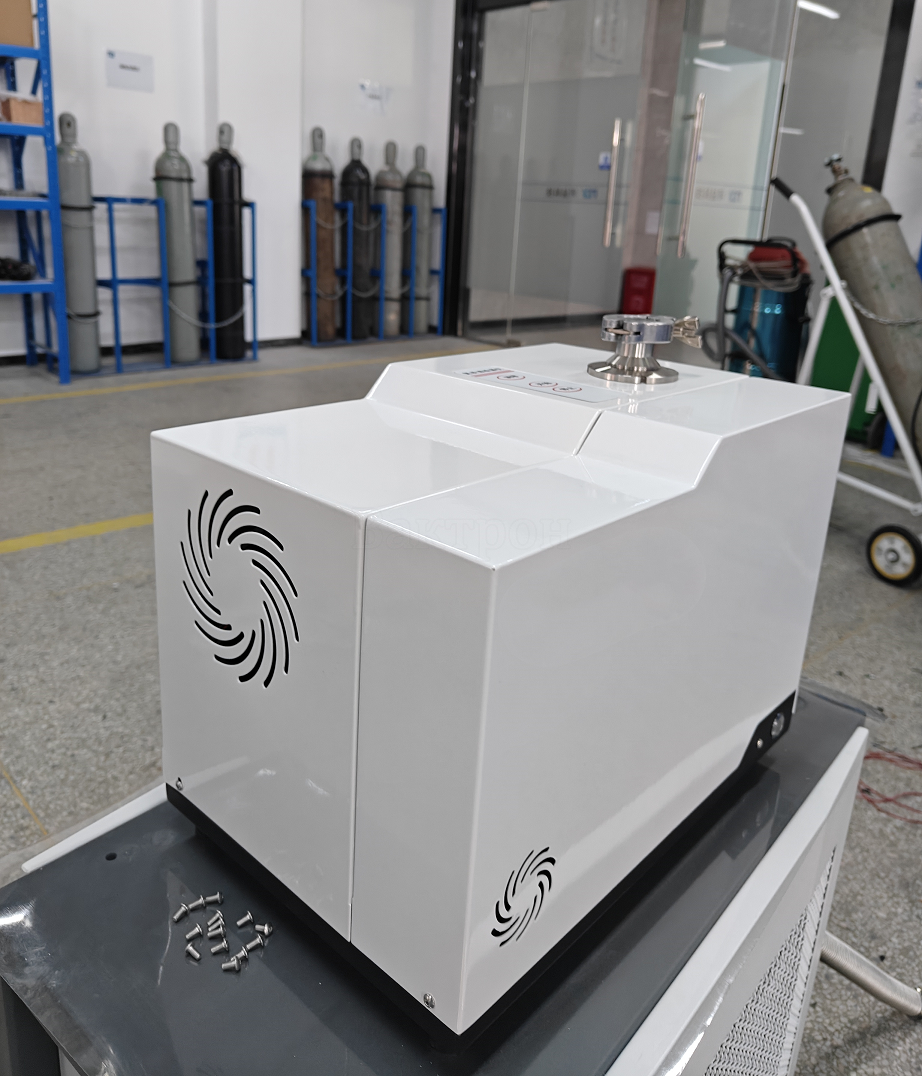

LeakLab Lite Integrable Helium Leak Detector

LeakLab Lite is a compact mass-spectrometer platform for vacuum-method measurement and automated helium leak-test equipment. It can be integrated into stations for small components, cryogenic-service tooling and other application-specific systems.

Minimum detectable signal stated for the source configuration	3 × 10⁻¹³ Pa·m³/s
Maximum test-start pressure stated in the source configuration	2,000 Pa
Response / startup values stated in the source configuration	As fast as 0.3 s / up to 100 s for a selected module; final values are configuration-dependent
Envelope stated in the source record	420 × 359 × 275 mm
Control	Manual or automated; remote display and data functions available by project

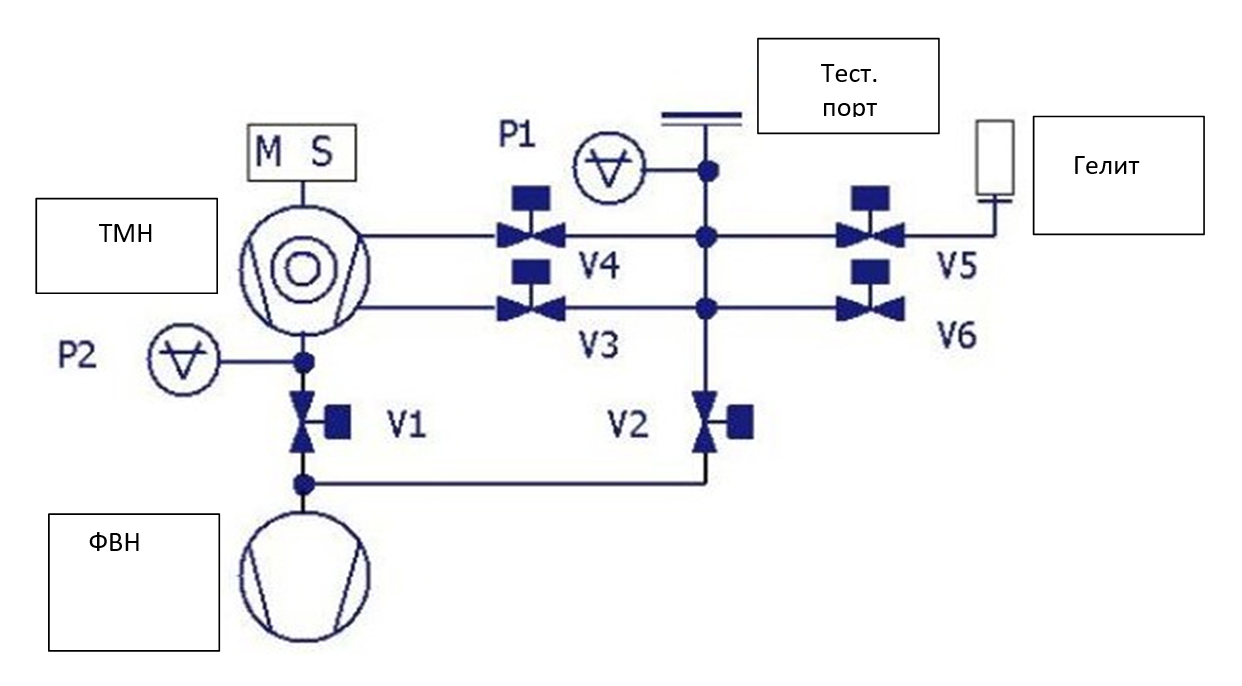

The former page mixed specifications from more than one analyzer and backing arrangement. The approved system specification must identify the analyzer, turbomolecular pump, backing pump, inlet conductance, vacuum and sniffer ranges, power, interfaces and supplied accessories.

The module is not a substitute for a chamber roughing station. Large test volumes normally require an external backing or auxiliary pump sized for the required cycle time.
