Benchtop or cart-mounted helium mass-spectrometer leak detector for vacuum and sniffer testing. The manufacturer specifies a 5 × 10⁻¹³ Pa·m³/s minimum detectable leak, measurement up to 1 × 10⁻¹ Pa·m³/s and startup in under three minutes.
Description

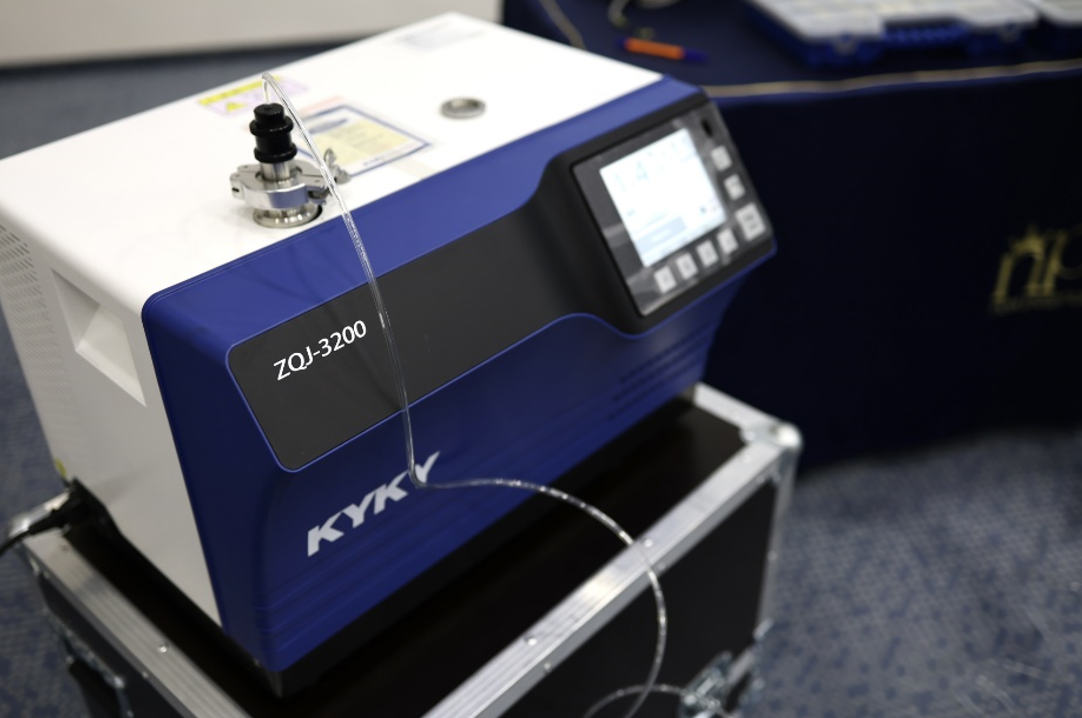

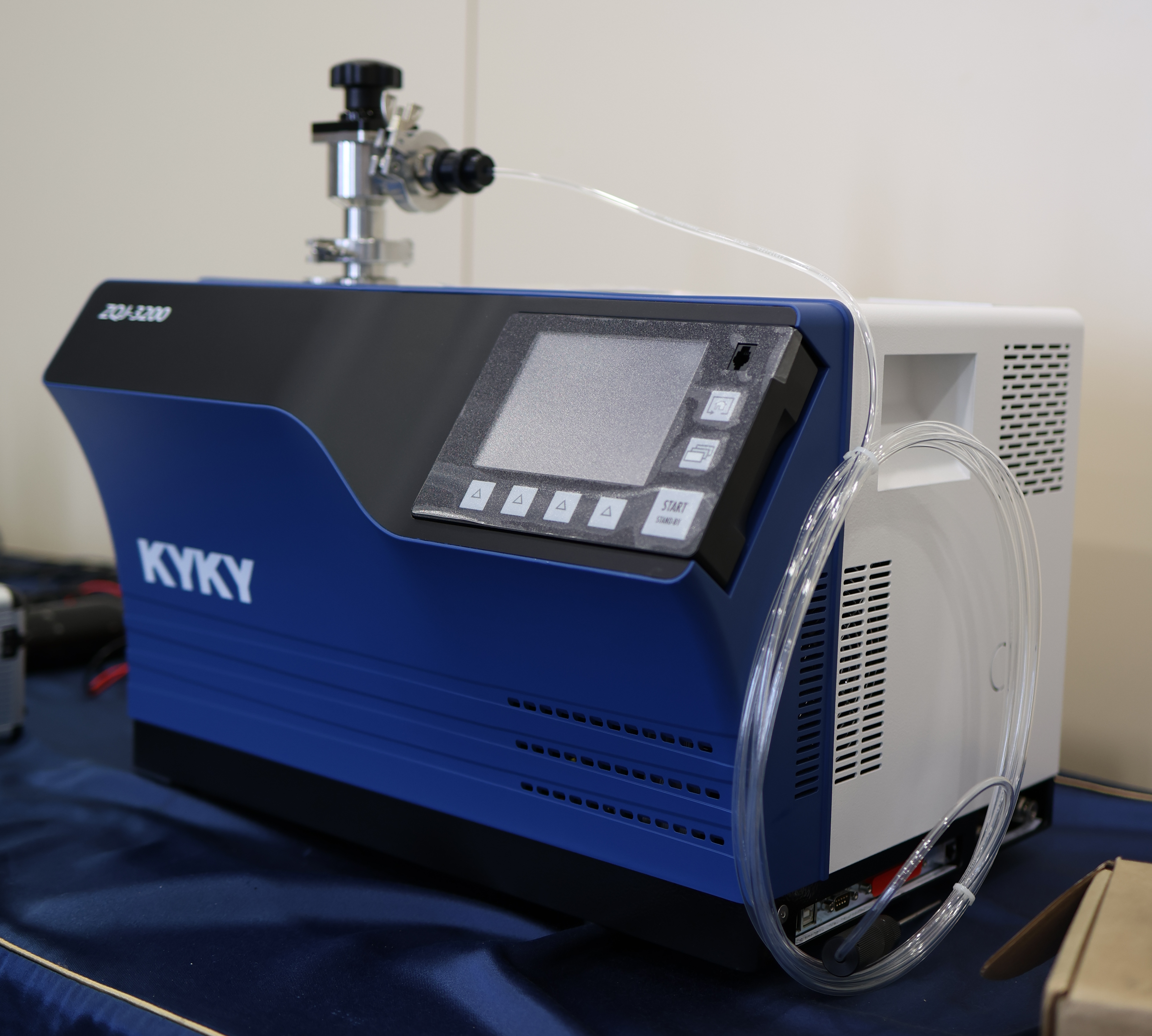

KYKY ZQJ-3200 Helium Leak Detector
The ZQJ-3200 is a helium mass-spectrometer leak detector for quantitative vacuum testing and leak localization. This offer can include a contract-specific calibration or verification package; the exact accreditation scope, jurisdiction, documents and acceptance criteria must be agreed before ordering.
| Minimum detectable leak, vacuum mode | 5 × 10−13 Pa·m³/s |
|---|---|
| Measurement range | 5 × 10−13 to 1 × 10−1 Pa·m³/s |
| Maximum test-start pressure | 2,500 Pa |
| Response time | ≤1 s |
| Startup time | <3 min |
| Helium pumping speed | 2.5 L/s |
| Analyzer | Two independent yttria-coated iridium filaments |
| Data and automation | SD storage, digital I/O, Profibus and network communication listed by the manufacturer |
| Dimensions | 543 × 421 × 359 mm benchtop; 733 × 528 × 935 mm cart |
| Weight | 55 kg benchtop; 109 kg cart |
KYKY also describes a gross-leak mode that can operate at foreline pressure up to 10,000 Pa. Confirm the selected backing pump, inlet flange, sniffer package, mains version, interfaces and supplied documents in the order specification.
A calibration or verification statement is not automatic evidence of legal metrological status in every country. The applicable laboratory, method, reference leak, uncertainty and reporting format must be specified for the destination market.
