Helium mass-spectrometer leak detector available with oil-sealed or dry backing configurations. ULVAC specifies sensitivity below 5 × 10⁻¹³ Pa·m³/s, a 7-inch wireless tablet interface and vacuum or sniffer testing.
Description

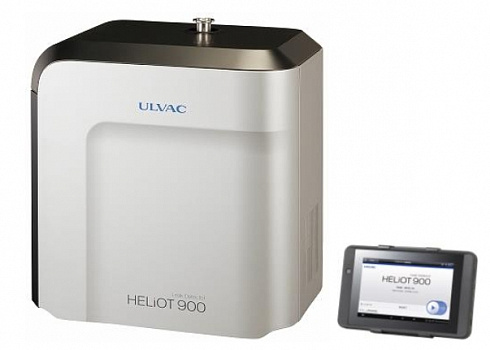

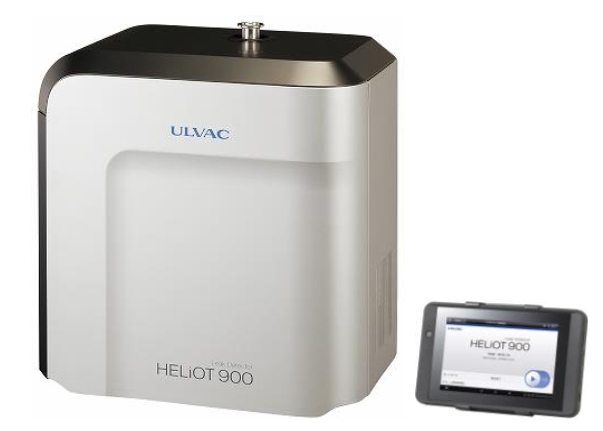

ULVAC HELIOT 900 Helium Leak Detector

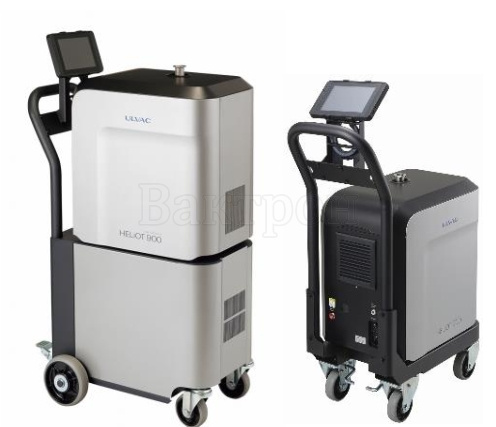

The HELIOT 900 series detects 4He and 2H2 and supports quantitative vacuum testing and sniffer localization. Models are available with oil-sealed rotary-vane or dry scroll backing pumps and with integrated or cart-mounted layouts.
| Minimum detectable leak | <5 × 10−13 Pa·m³/s |
|---|---|
| Tracer gases | 4He and 2H2 |
| Helium inlet pumping speed | 5 L/s in Ultra mode; >1 L/s in Fine mode |
| Test port | NW25 |
| Startup | <2 min in the product specification; calibration settings can extend readiness time |

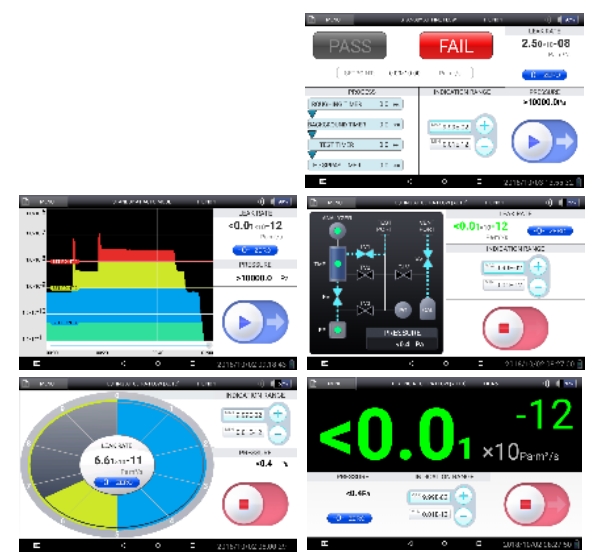

| Operator interface | 7-inch wireless tablet |
| Interfaces | RS-232C, RS-485, analog output and digital I/O |
| Languages listed by ULVAC | English, Japanese, Korean, Chinese, German and Spanish |
| Operating environment | 10–40 °C; 35–85% RH, non-condensing |
| Acoustic noise | ≤70 dB(A) |
| Power | 100–120 or 200–240 V AC, 50/60 Hz, model-dependent |

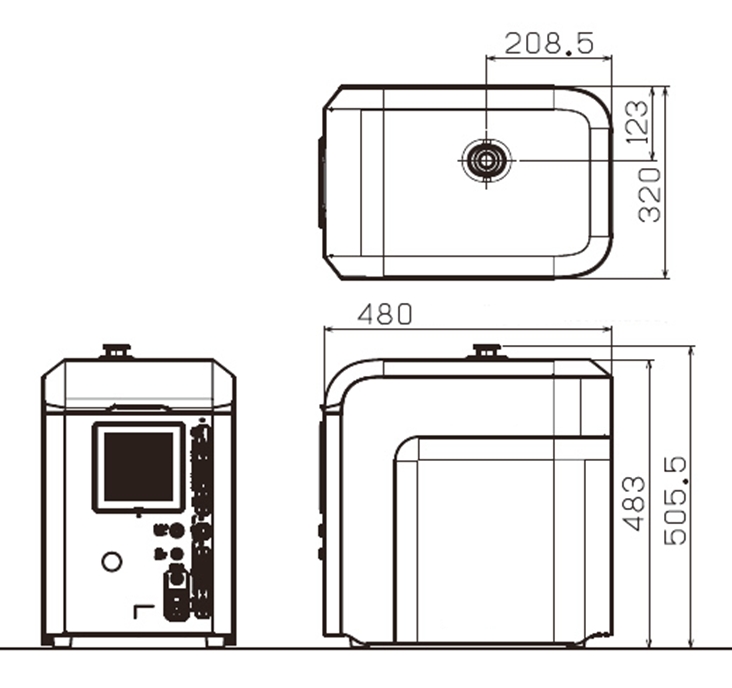

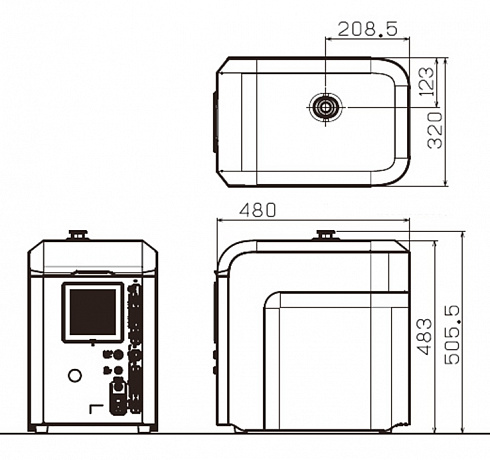

Dimensions, mass, backing speed and pump type depend on the exact 901/904 and W/D version. Select the model from the current ULVAC datasheet and specify sniffer probe, inlet accessories, cart, cables and reference leak separately.

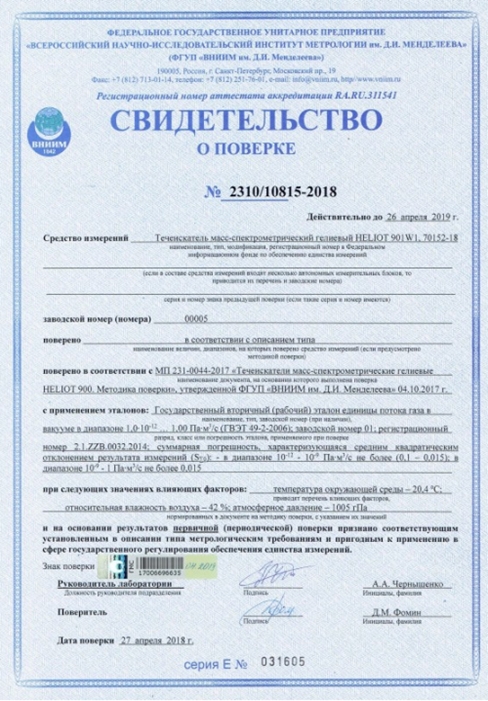

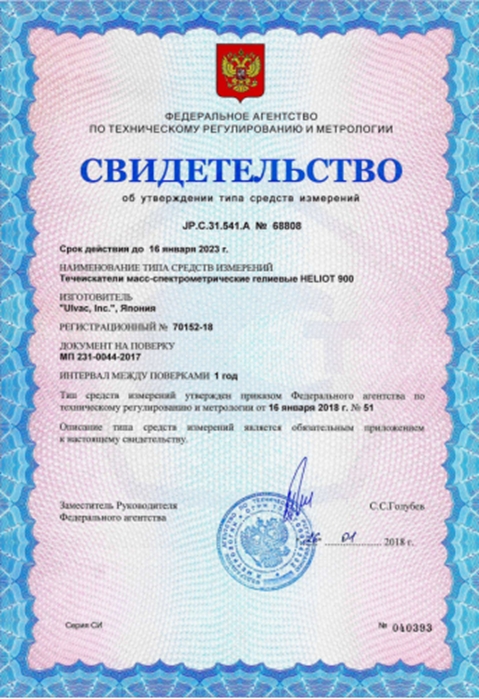

A contract can include calibration or verification services. The applicable laboratory, scope, uncertainty and legal status must be stated explicitly for the country of use; this page does not claim automatic registration in any national instrument register.
