Fast helium leak detector in benchtop or cart form. The ZQJ-3200 covers 5 × 10⁻¹³ to 1 × 10⁻¹ Pa·m³/s, starts in under three minutes and provides automation interfaces for production or laboratory systems.
Learn More
Description

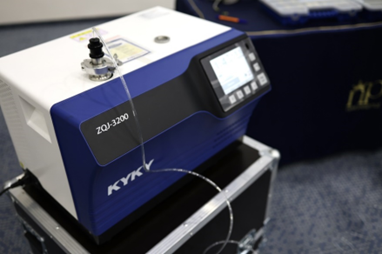

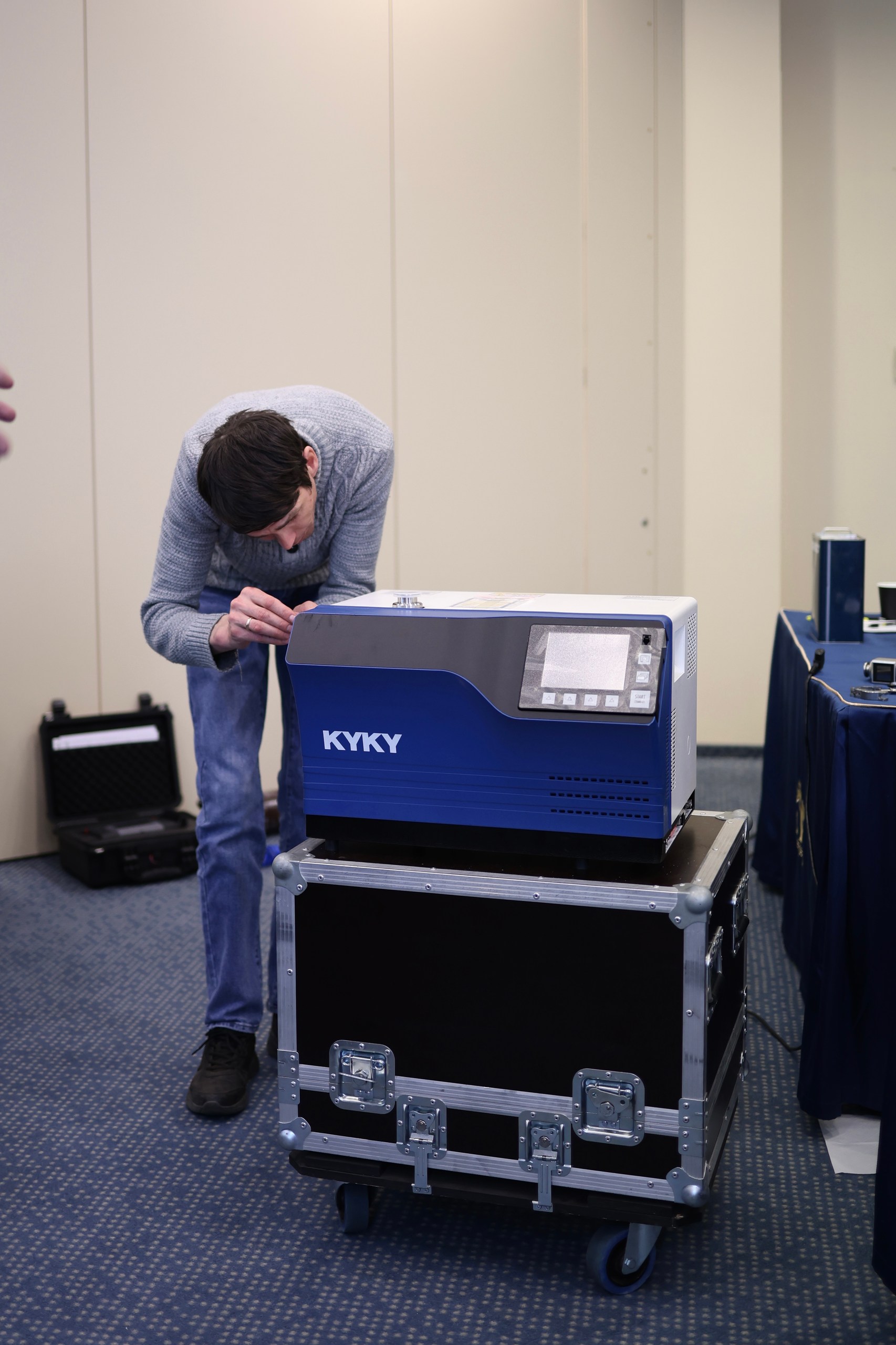

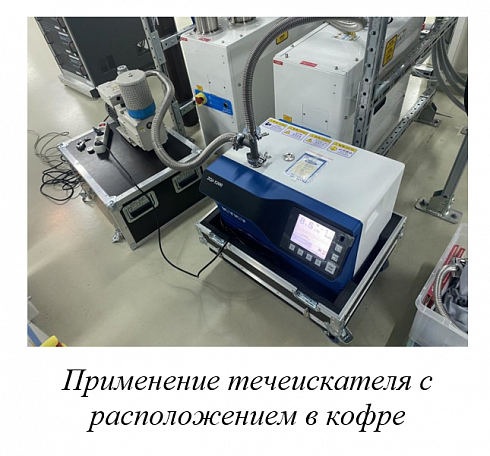

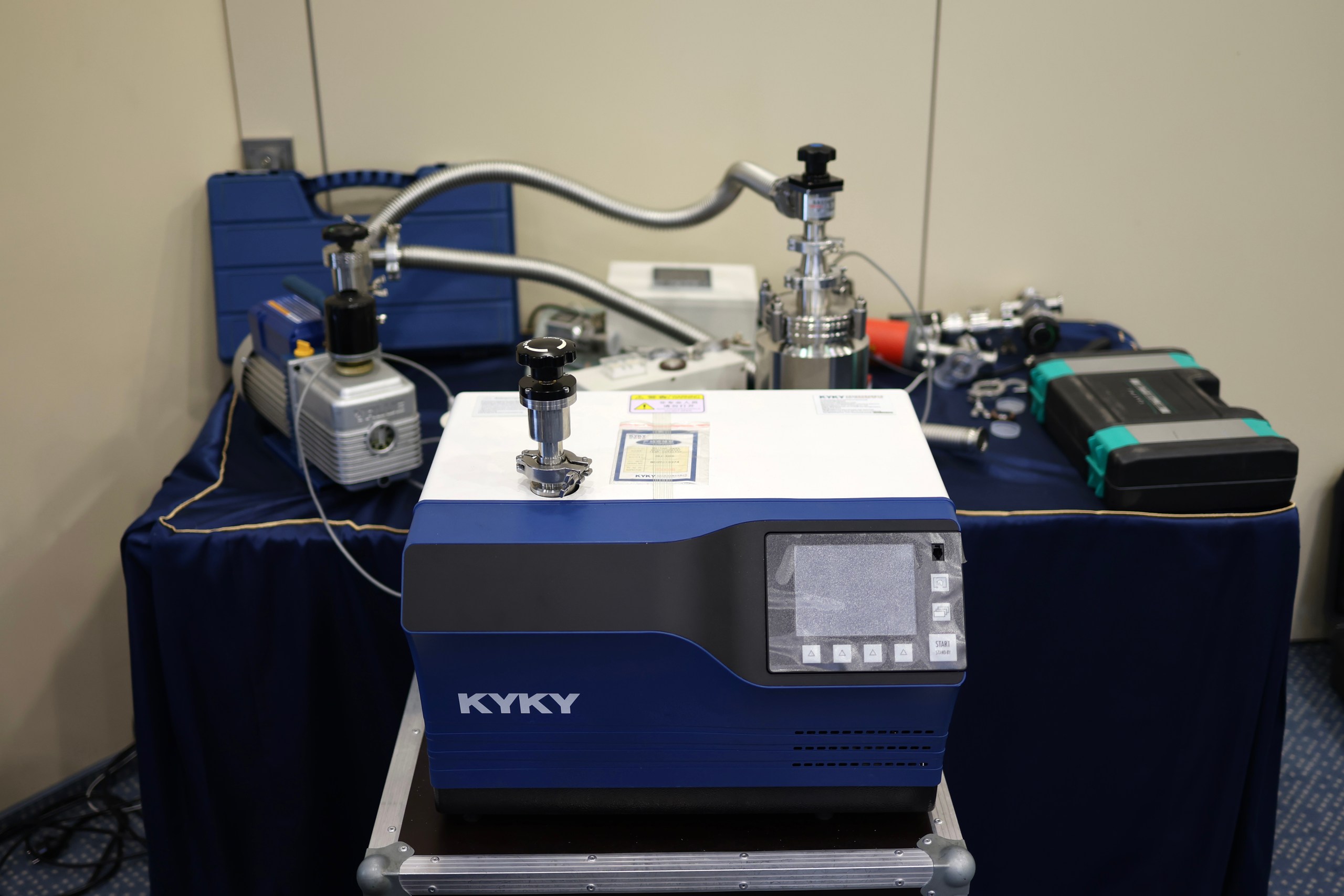

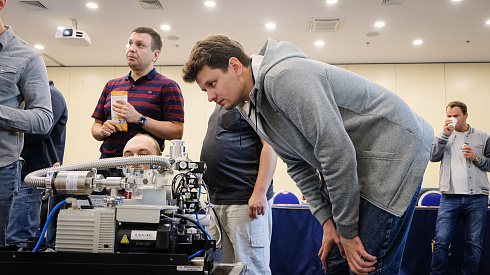

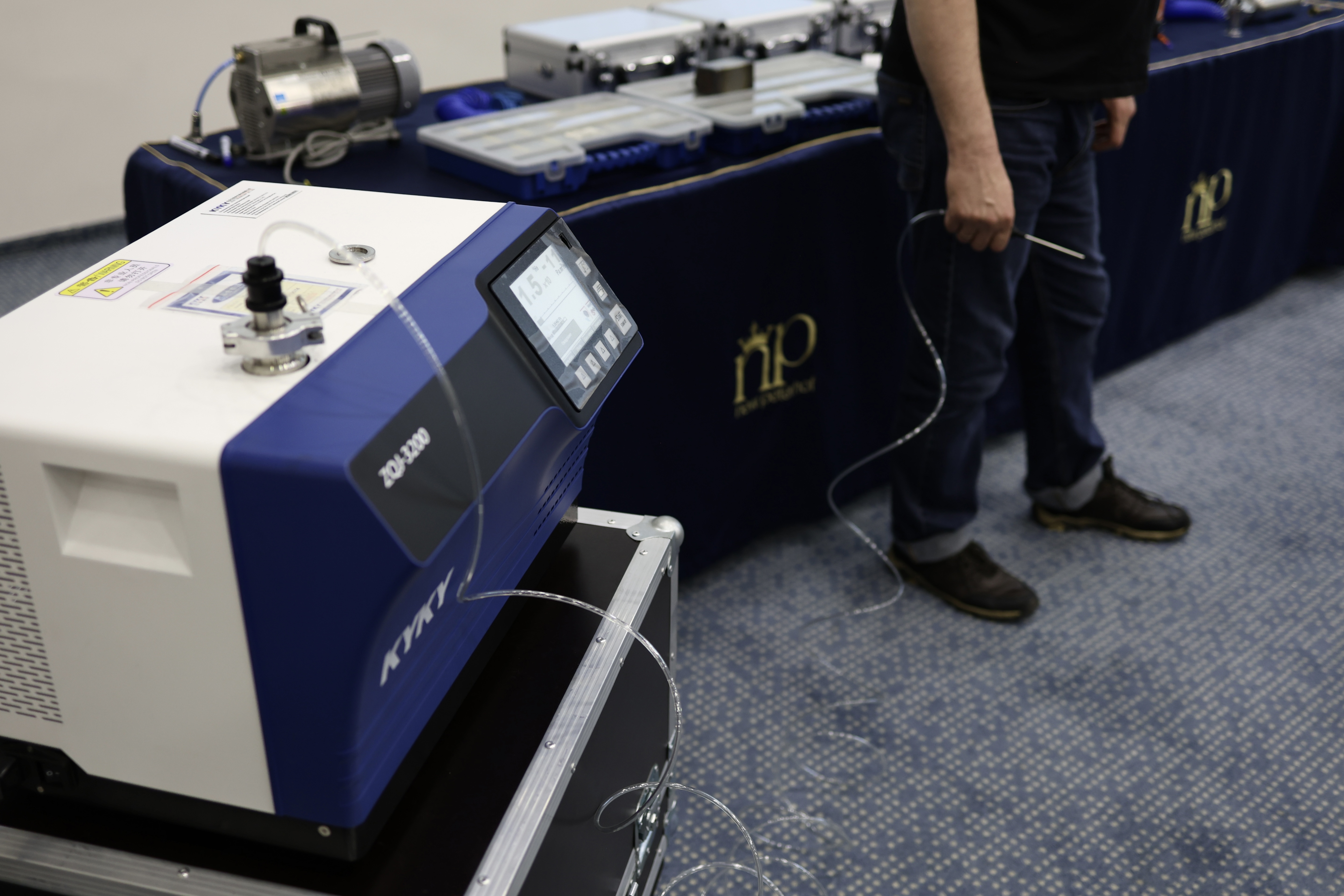

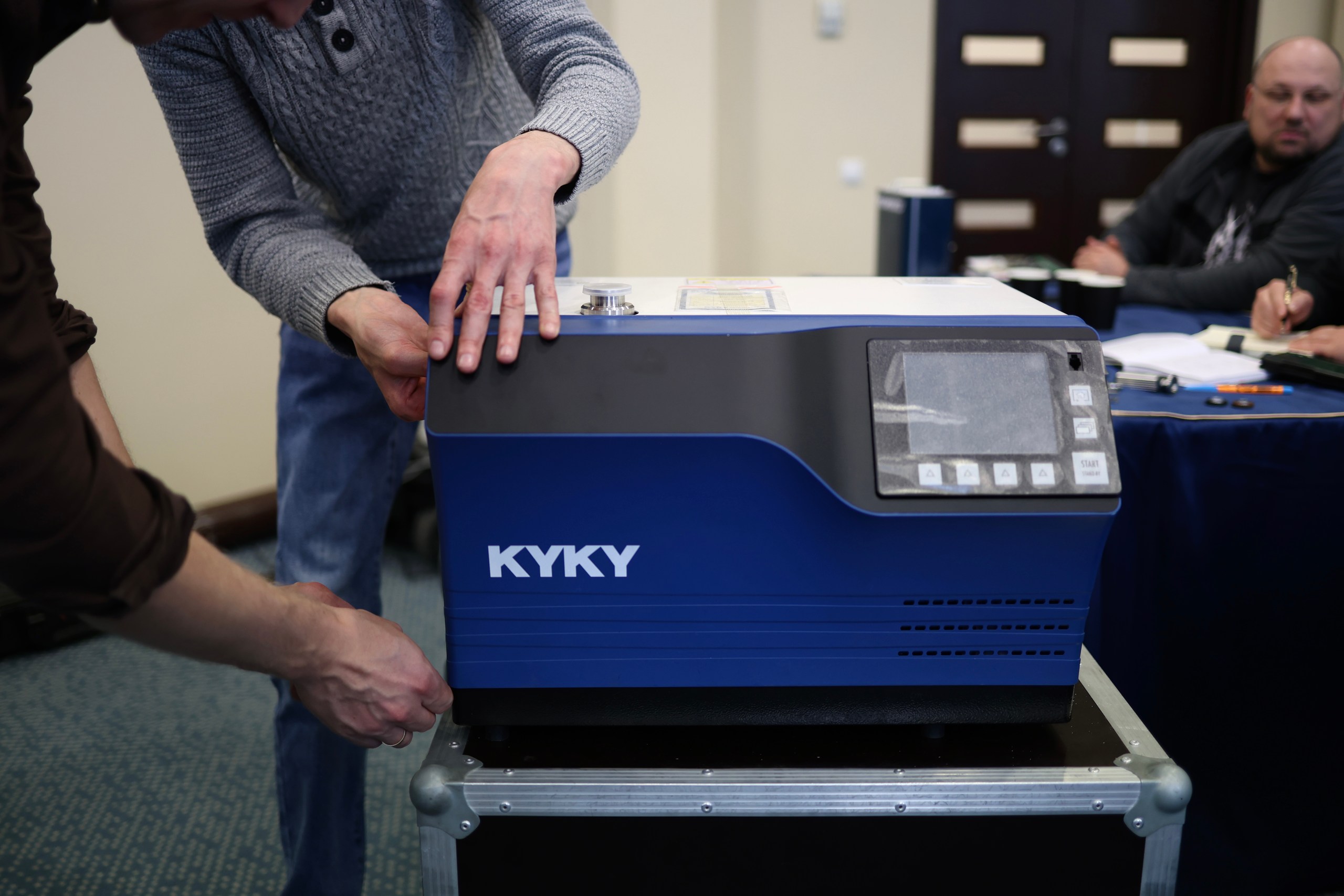

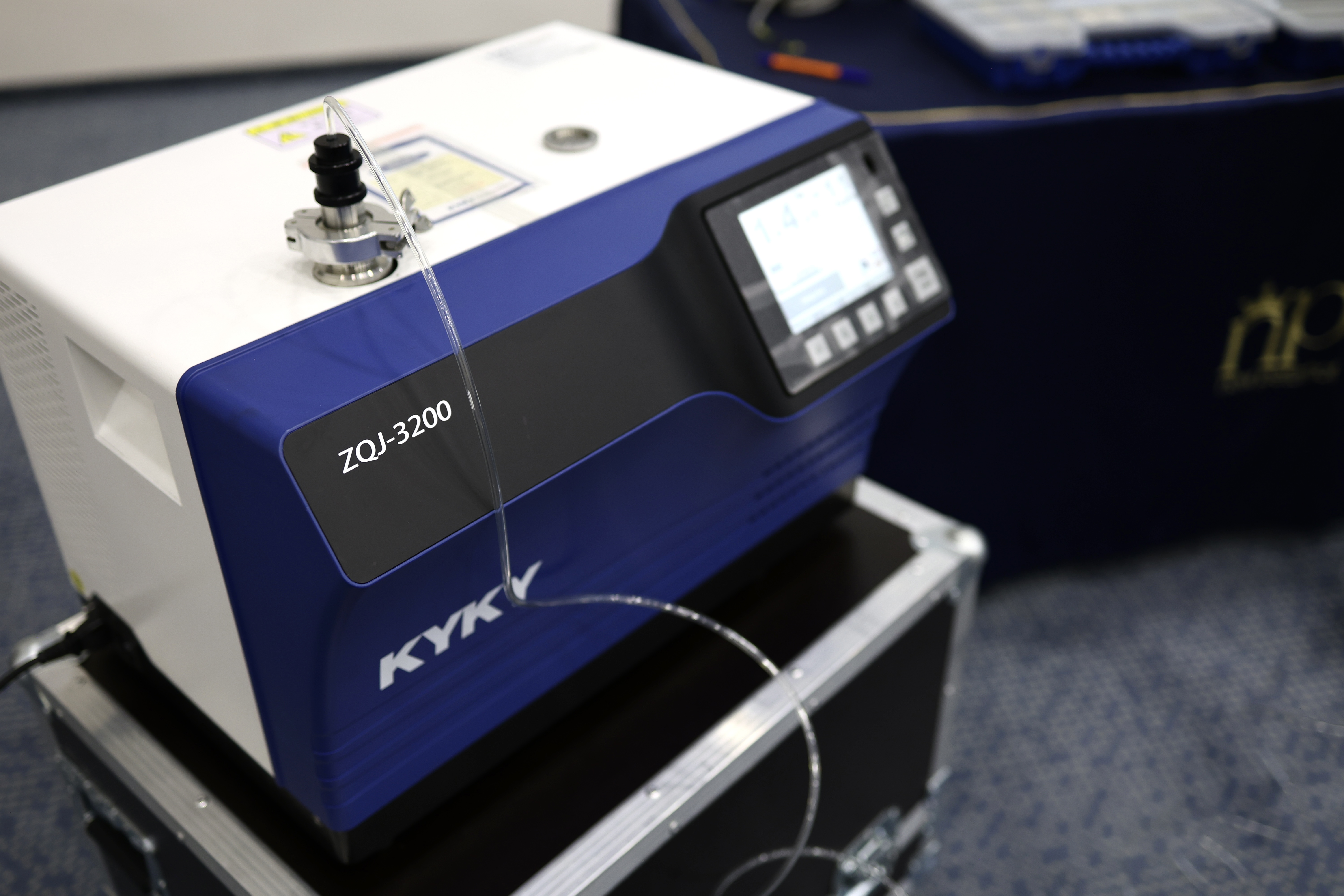

KYKY ZQJ-3200 Helium Mass-Spectrometer Leak Detector

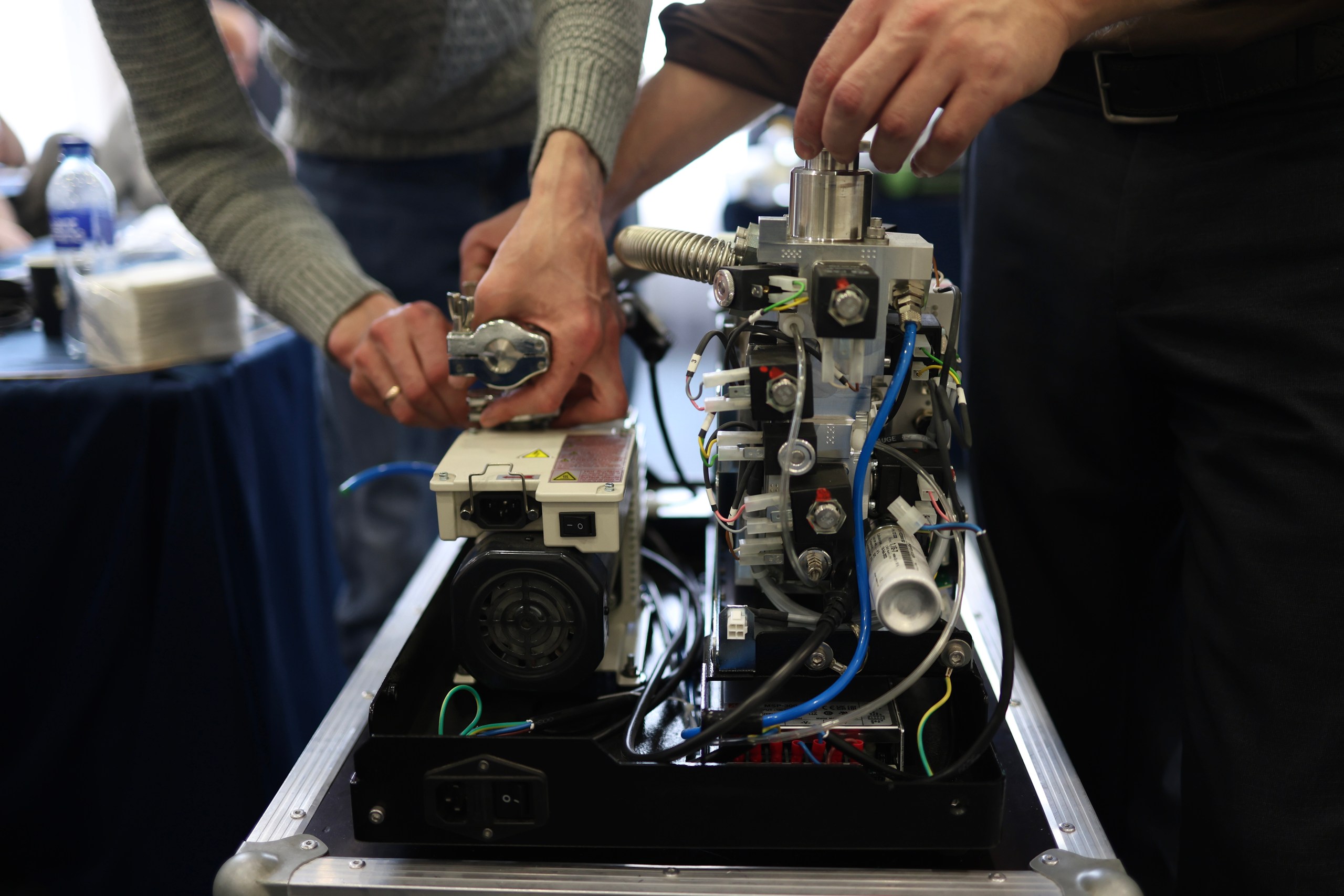

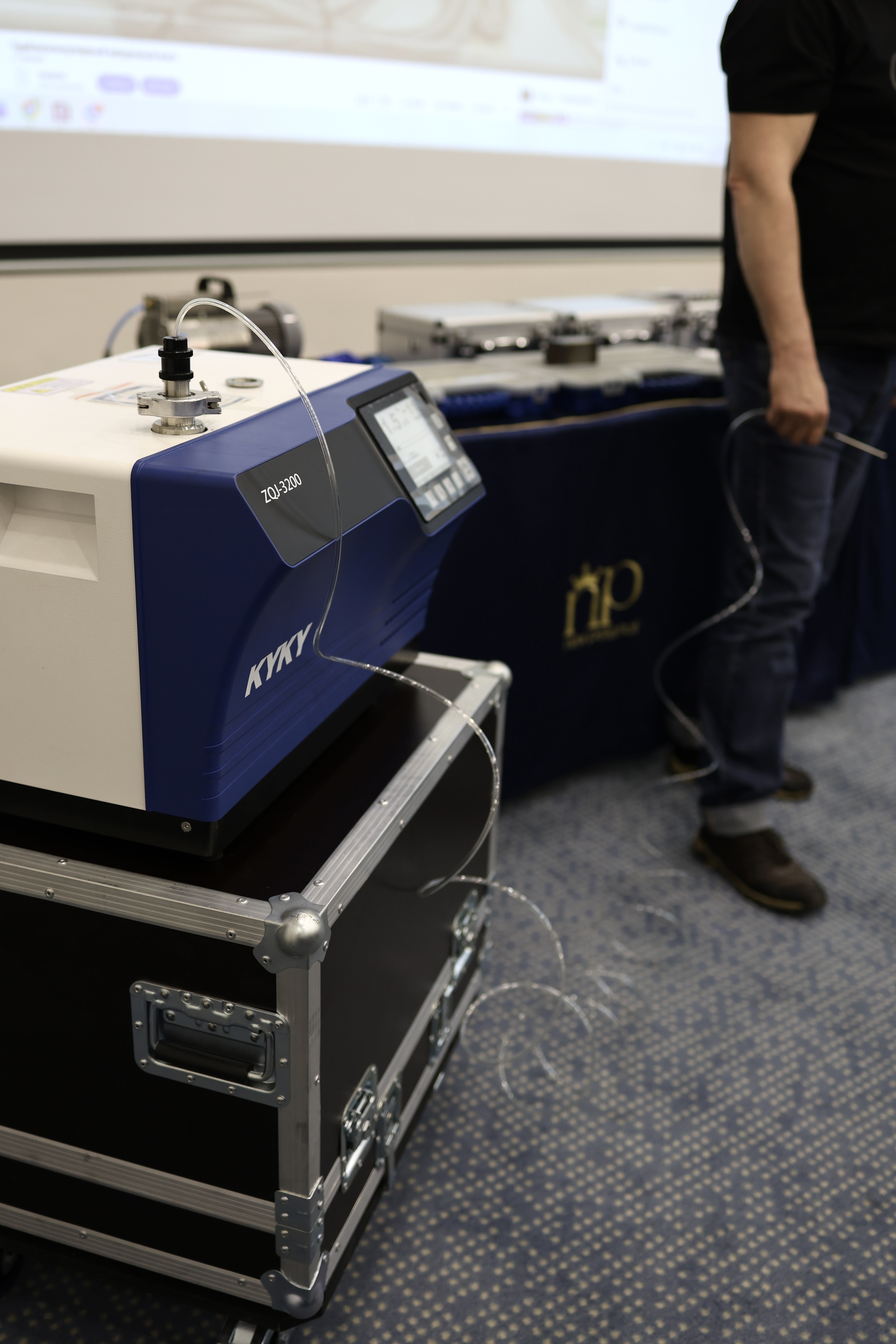

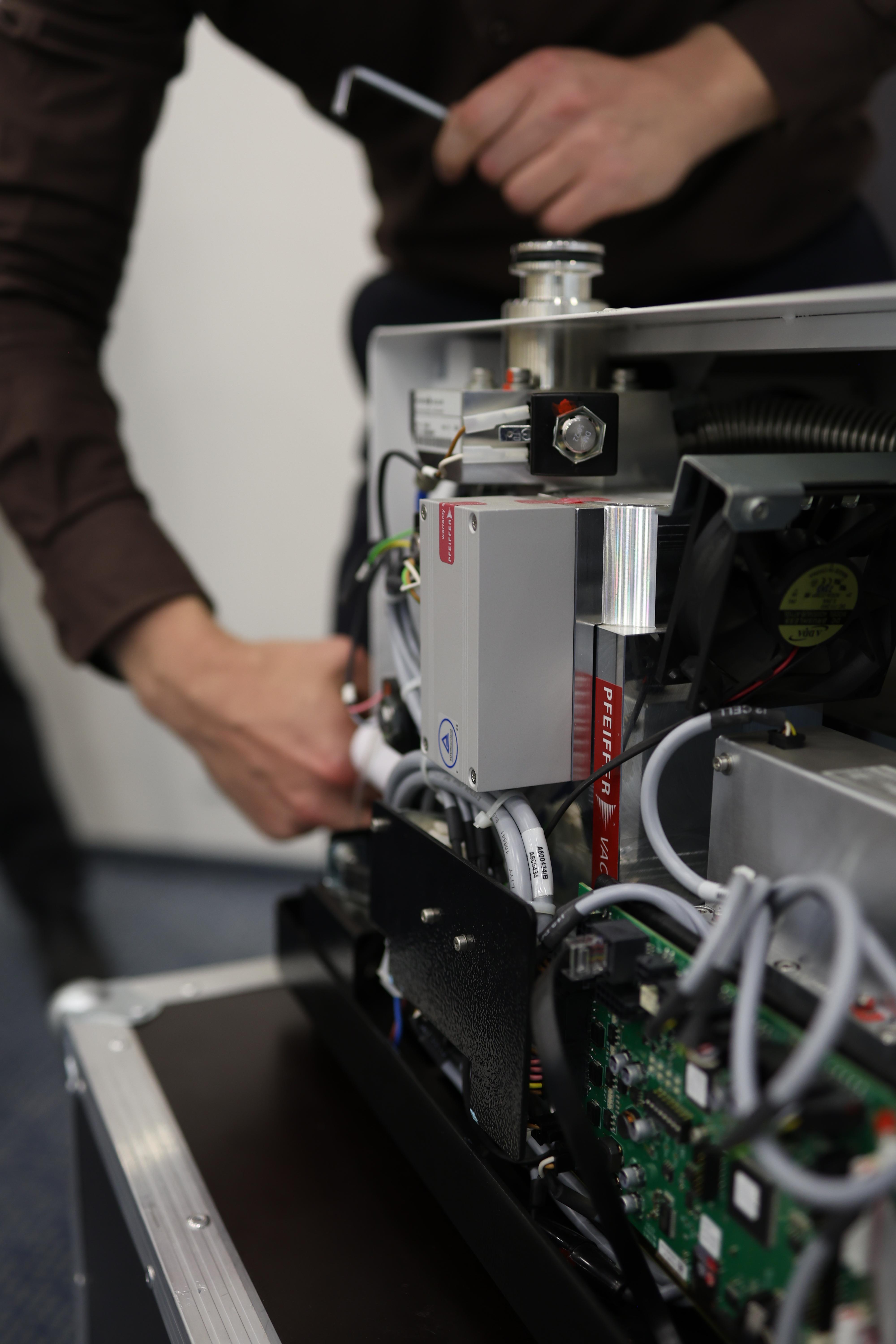

The ZQJ-3200 is designed for vacuum-method measurement and, with the appropriate accessory, sniffer localization on pressurized objects. It combines a turbomolecular analyzer system, automatic pressure-dependent mode control and a color touch interface.
| Minimum detectable leak | 5 × 10−13 Pa·m³/s |
|---|---|
| Measurement range | 5 × 10−13 to 1 × 10−1 Pa·m³/s |
| Maximum test-start pressure | 2,500 Pa |
| Response / startup | ≤1 s / <3 min |
| Helium pumping speed | 2.5 L/s |
| Gross-leak capability | Operation at foreline pressure up to 10,000 Pa is described by KYKY |
| Ion source | Two independent yttria-coated iridium filaments |
| Communication | Digital I/O, Profibus and network communication listed by the manufacturer |

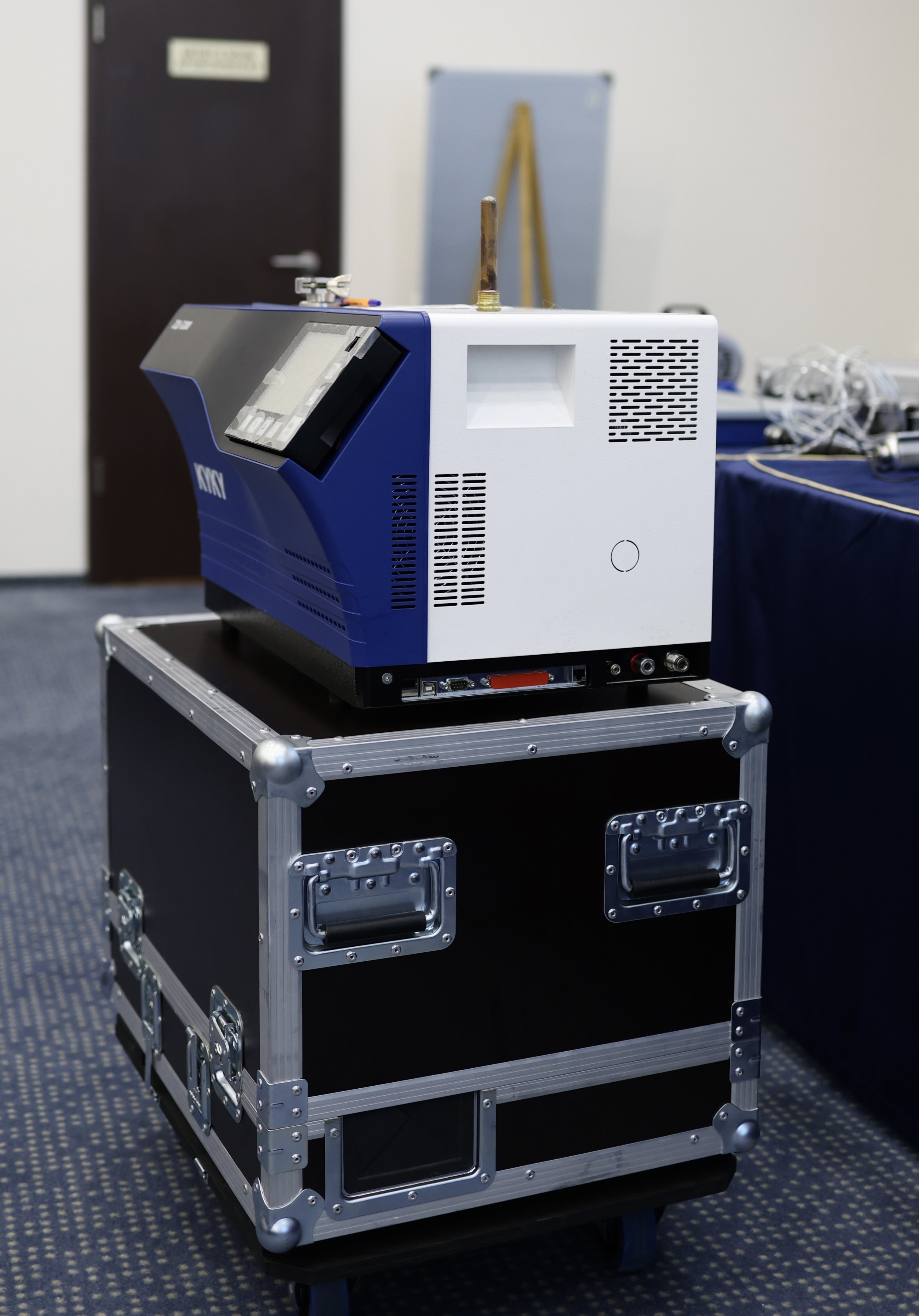

| Dimensions / weight | 543 × 421 × 359 mm / 55 kg benchtop; 733 × 528 × 935 mm / 109 kg cart |
Final performance depends on the backing configuration, inlet conductance, sniffer line and test volume. Confirm the exact version, flange, pump, mains supply, interfaces, calibration equipment and accessories before ordering.
