Mobile system for locating helium escaping from pressurized heat exchangers, piping, radiators and welded assemblies. Detector principle, helium concentration, reference source, pressure-control hardware and hazardous-area rating are project-specific.
Description
Helitrack Mobile Helium Sniffer System

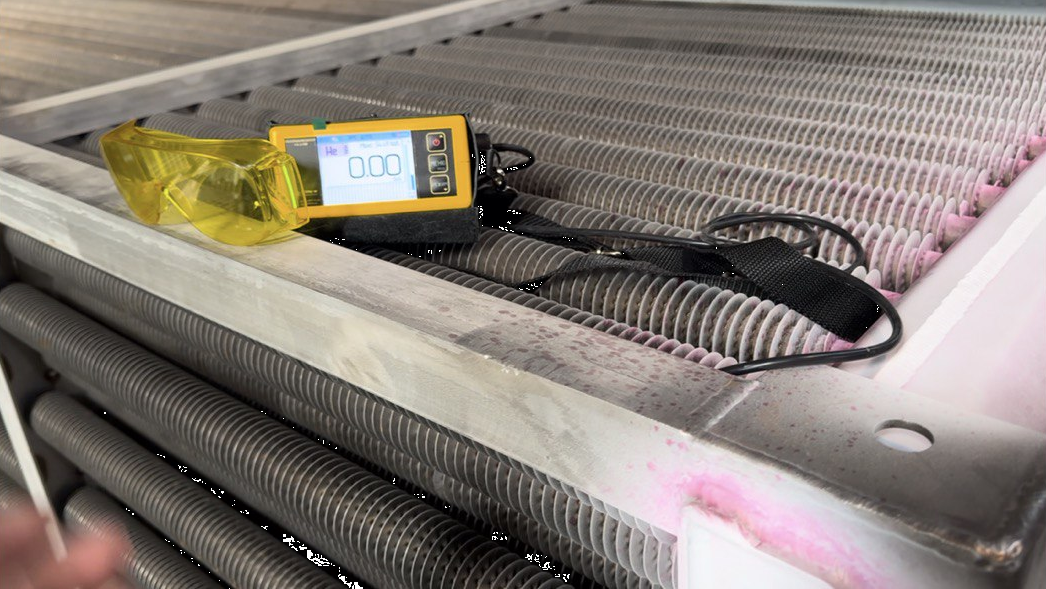

Helitrack is a portable package for localizing leaks from objects filled with helium or a helium mixture. The operator scans joints, welds and penetrations while the system records detector response and test pressure.
Typical package
- Helium-sensitive sniffer analyzer and probe

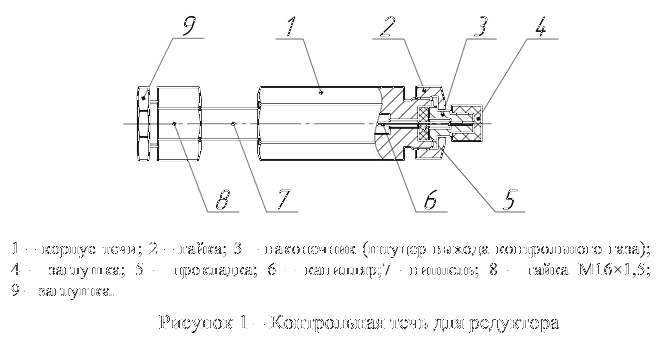

- Response-check or reference source suitable for the detector principle

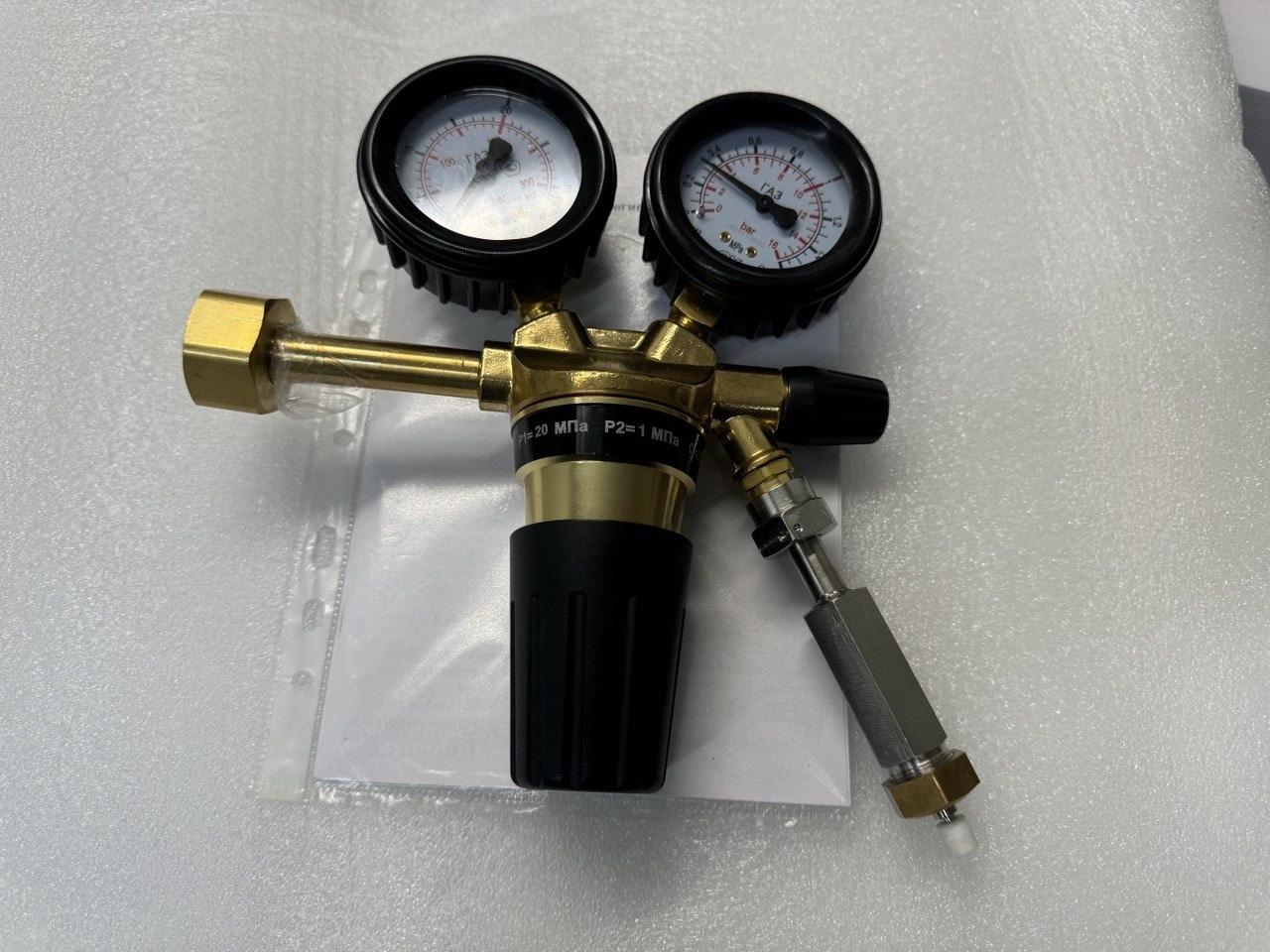

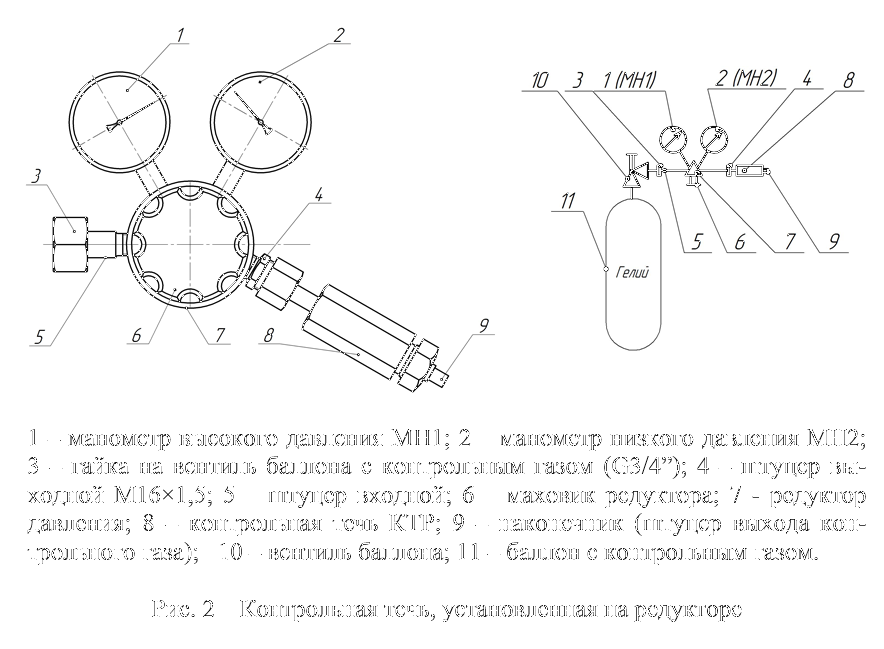

- Pressure regulator, gauge and filling connection selected for the object
- Protective case, charger and operating documentation
The former page claimed complete selectivity, a universal 1 × 10−4 Pa·m³/s detection level, low-temperature capability and an explosion-proof option without identifying a detector model. These properties must be verified from the exact analyzer and certificate. A concentration detector cannot be assumed to report calibrated leak rate.
Define tracer concentration, pressure, stabilization time, scan distance and speed, alarm threshold and response-check procedure in the test instruction. Hazardous-area use is prohibited unless the delivered equipment and complete sampling arrangement carry the required certification.
Specifications
