Compact ADP910 digital differential pressure sensor for −500 to +500 Pa with an I²C interface. The source record states ±3% of reading accuracy, <2 ms response time and operation with non-condensing air, nitrogen or oxygen. Confirm the exact transfer function, port configuration, calibration and application approvals before integration.
Description
ADP910 Digital Differential Pressure Sensor with I²C

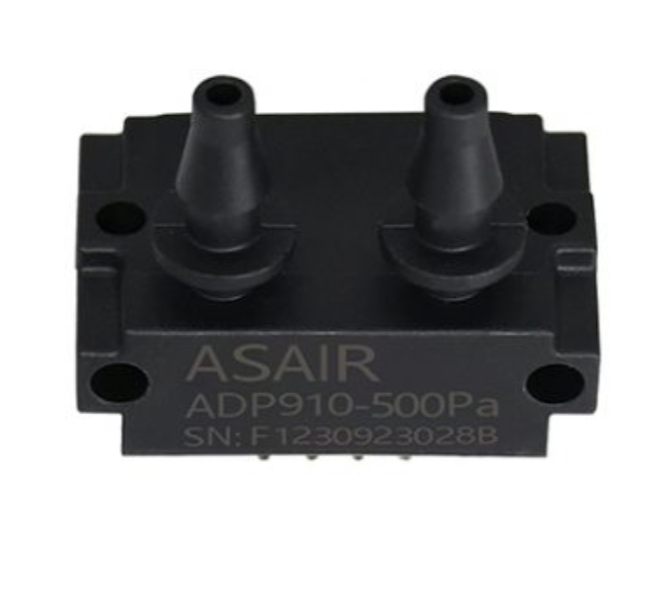

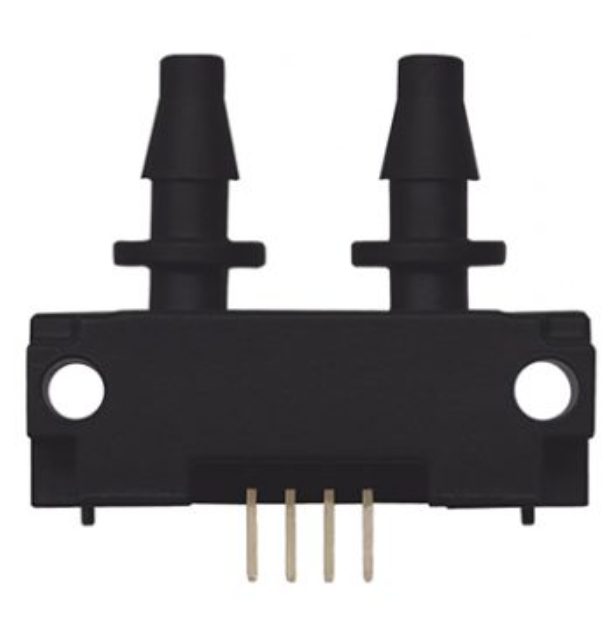

The ADP910 measures small differential pressures using a thermal-flow sensing principle and provides a digital I²C output. Two barbed pneumatic ports and a compact package support integration into embedded equipment.
| Measurement range | −500 to +500 Pa |
|---|---|
| Supply | 3.2 to 5.5 V DC |
| Current consumption | ≤12 mA |
| Accuracy stated in source record | ±3% of current reading |
| Repeatability | ±0.5% of current reading |
| Zero error | 0.3 Pa |
| Response time | <2 ms |
| Annual zero drift | <0.05 Pa |

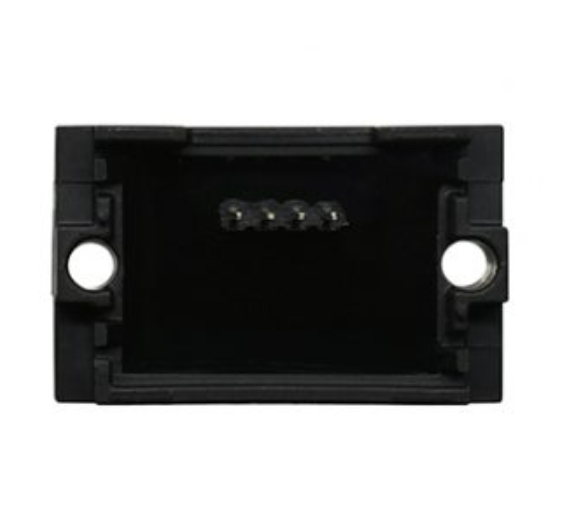

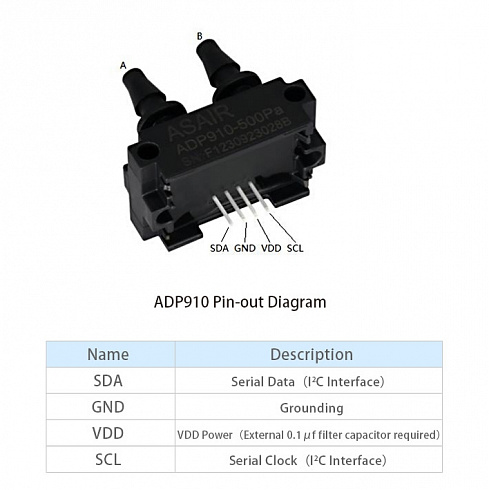

| Interface | I²C: SDA, SCL, VDD and GND |
| Compensated operating-temperature range | 0 to +50 °C |
| Temperature-measurement range | −40 to +85 °C |
| Compatible media stated in source record | Non-condensing air, nitrogen and oxygen |

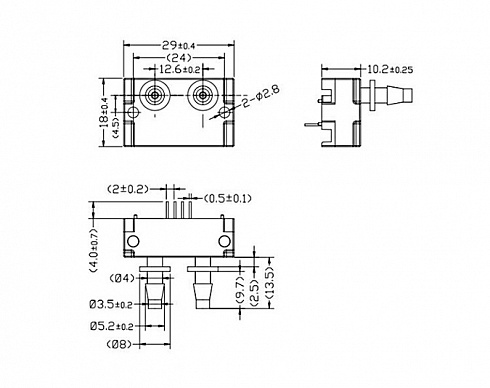

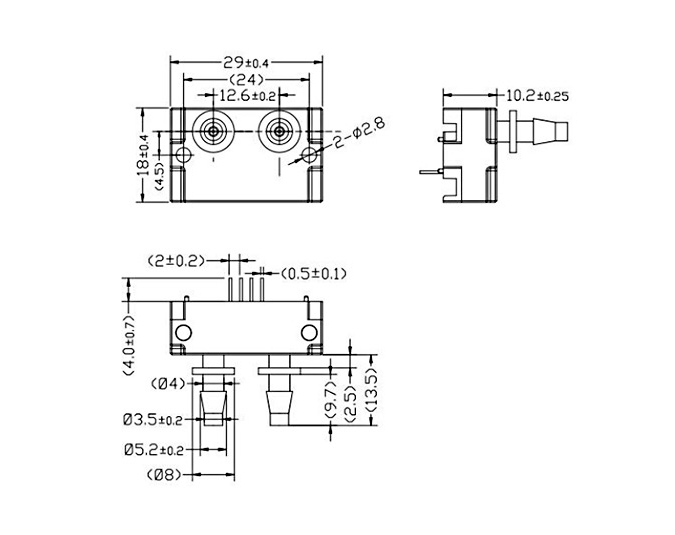

| Dimensions | 29 × 18.4 × 10.2 mm |
Typical applications include HVAC airflow control, filter monitoring, gas appliances, laboratory equipment and embedded differential-pressure measurement. Medical, oxygen, combustion and safety-related applications require confirmation of the exact sensor variant and all applicable approvals.
Use the required 0.1 µF external supply decoupling and follow the manufacturer's port orientation, pressure limits and I²C timing requirements. Confirm the digital transfer function, I²C address, sampling mode, overpressure rating, media compatibility, calibration and connector or PCB footprint before design-in.
