Custom vacuum drying chamber for controlled removal of moisture and volatile compounds from electronics, precision assemblies and other compatible products. Chamber, heat input, pumping and controls are sized for the process load.
Description

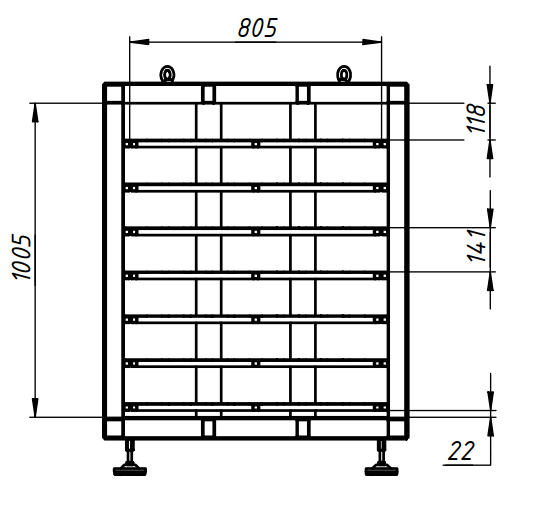

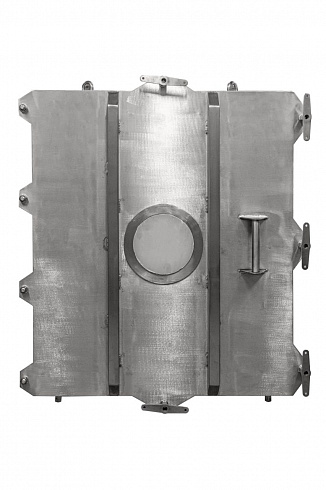

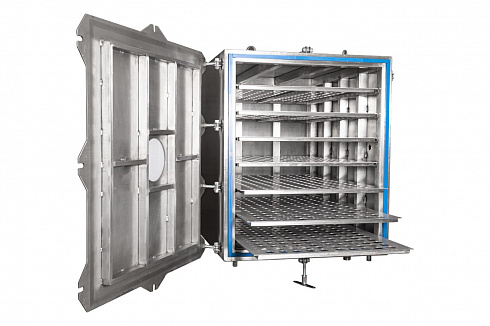

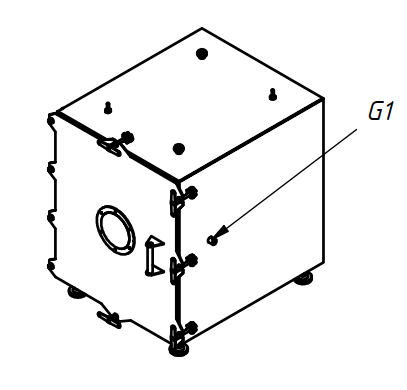

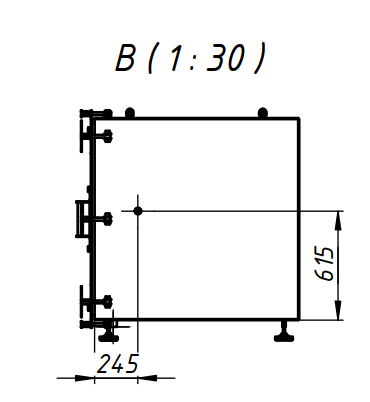

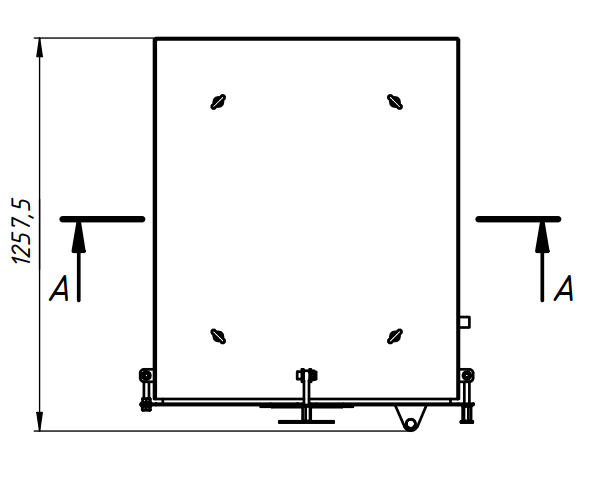

LeakLab-900 Vacuum Drying Chamber
The LeakLab-900 platform supports low-temperature drying, vacuum bakeout and degassing where atmospheric heating could cause oxidation or excessive product temperature.
Project data required
- Product dimensions, batch mass and moisture load
- Maximum product and chamber temperature
- Target pressure, drying time and endpoint method
- Vapor composition and need for condenser, trap or filtration
- Shelf heating, circulation, thermocouples and data logging
- Cleaning, material compatibility and contamination limits
The “900” designation does not establish usable volume or rated load without an approved drawing. Drying performance must be demonstrated with the actual product or a representative validation load.
Flammable solvents, oxygen-rich products, medical devices and battery materials require application-specific hazard and regulatory review before vacuum heating.
