Compact instrument-class turbomolecular pump with 140 L/s nitrogen pumping speed, DN100 CF or ISO-K inlet and DN25 ISO-KF foreline connection. The FF-100/150 supports air or water cooling, any-orientation mounting and 24 V DC or 220 V AC control equipment.
Description
KYKY FF-100/150 Turbomolecular Pump
The FF-100/150 is a compact grease-lubricated ceramic-bearing pump for analytical instruments, leak detectors, vacuum chambers and research systems. The model designation denotes its product class; the manufacturer's current nitrogen pumping-speed value is 140 L/s.

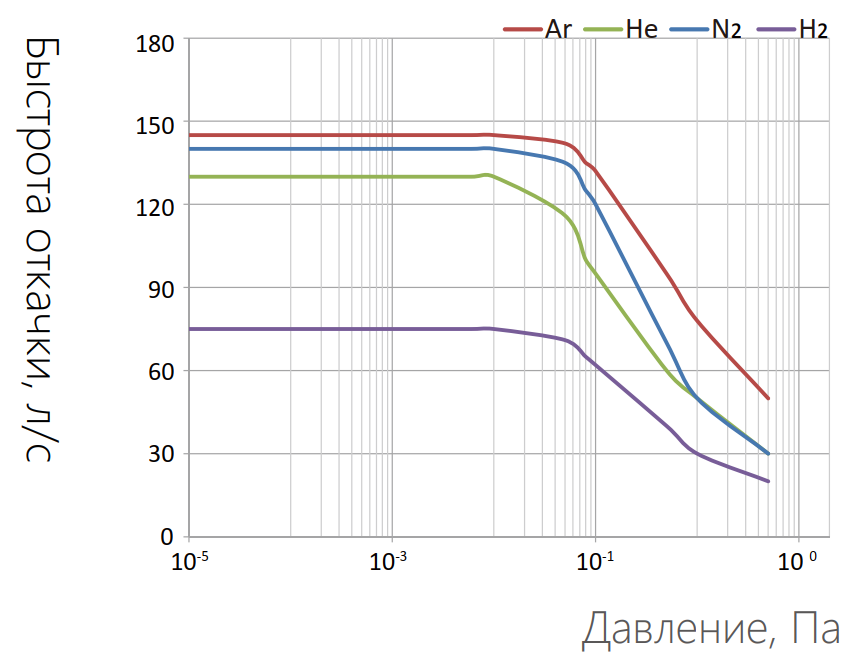

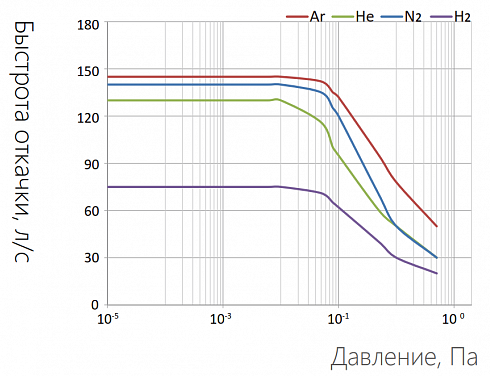

| Pumping speed: N₂ / He / H₂ / Ar | 140 / 130 / 75 / 145 L/s |
|---|---|
| Compression ratio: N₂ / He / H₂ / Ar | 1 × 107 / 6 × 103 / 1 × 103 / 1 × 107 |
| Ultimate pressure | 2 × 10−7 Pa with CF inlet; 2 × 10−6 Pa with ISO-K inlet |

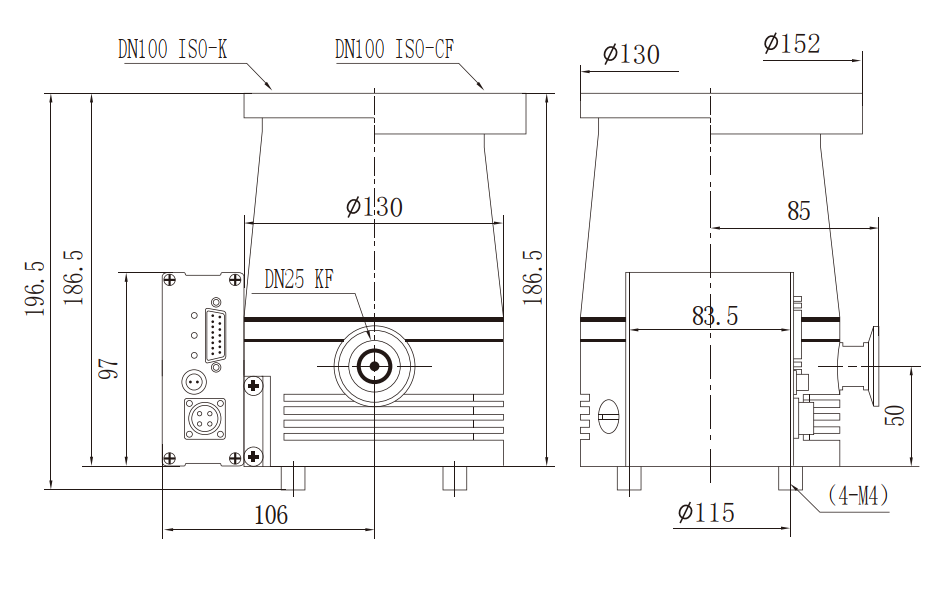

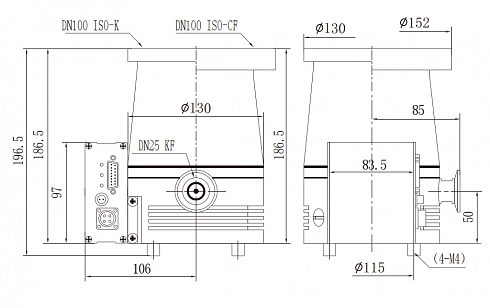

| Main inlet / foreline | DN100 CF or DN100 ISO-K / DN25 ISO-KF |
| Maximum continuous / short-term foreline pressure | 220 / 500 Pa for nitrogen |
| Nominal rotor speed / start time | 51,000 rpm / ≤3 min |
| Cooling | Air or water; water flow 1 L/min at ≤25 °C |
| Supply and compatible control units | 24 V DC or 220 V AC; TD-150, TCP-100 or TC-100 listed by KYKY |
| Maximum power | 90 W |
| Recommended backing-pump speed | 2 L/s |
| Mounting / weight | Any orientation / 6.0 kg ISO-K, 8.6 kg CF |
Confirm inlet configuration, controller, cables, cooling hardware, backing pump and communications interface when ordering. Effective chamber speed is limited by inlet conductance.
Protect the rotor from particles, impact and abrupt gas inrush, and interlock backing, cooling and rotor-speed functions.
