Water-cooled grease-lubricated ceramic-bearing turbomolecular pump with 1,300 L/s nitrogen pumping speed. The FF-200/1300 has a DN200 CF or ISO-K inlet, DN40 ISO-KF foreline connection and any-orientation mounting.
Description

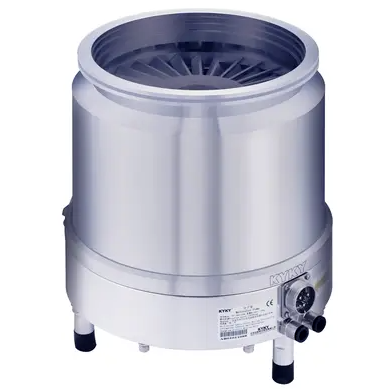

KYKY FF-200/1300 Turbomolecular Pump
The FF-200/1300 is a high-throughput compound turbomolecular pump for coating, plasma, vacuum furnace, research and industrial high-vacuum systems. The model uses grease-lubricated ceramic bearings and requires continuous water cooling.
| Pumping speed: N₂ / He / H₂ / Ar | 1,300 / 1,000 / 480 / 1,250 L/s |
|---|---|
| Compression ratio: N₂ / He / H₂ / Ar | 1 × 109 / 1 × 104 / 6 × 103 / 1 × 109 |
| Ultimate pressure | 6 × 10−7 Pa with CF inlet; 6 × 10−6 Pa with ISO-K inlet |
| Main inlet / foreline | DN200 CF or DN200 ISO-K / DN40 ISO-KF |
| Maximum continuous / short-term foreline pressure | 240 / 600 Pa for nitrogen |
| Nominal rotor speed / start time | 24,000 rpm / ≤9 min |
| Cooling | Water, ≥1 L/min at ≤25 °C |
| Supply and compatible control units | 24 V DC or 220 V AC; TCDP-II, FD-IIB, TD-II or TCP-II listed by KYKY |
| Maximum power | 500 W |
| Recommended backing-pump speed | 15 L/s |
| Mounting / weight | Any orientation / 29 kg ISO-K, 31 kg CF |
The legacy source title claimed 6 × 10−8 Pa. KYKY's current product data gives 6 × 10−7 Pa for the CF version and 6 × 10−6 Pa for ISO-K; these supported values are used here.
Confirm suffix, flange, controller, cables, cooling and backing pump. Use engineered lifting and interlocked backing, cooling, speed and vent functions.
