Compact air-cooled twin-screw dry vacuum pump with a nominal pumping speed of 21.6 m³/h and a stated ultimate pressure below 1 Pa. The SSH20 has a KF25 inlet, integrated controller, single-phase 220 V supply and a mass of approximately 15 kg.
Description

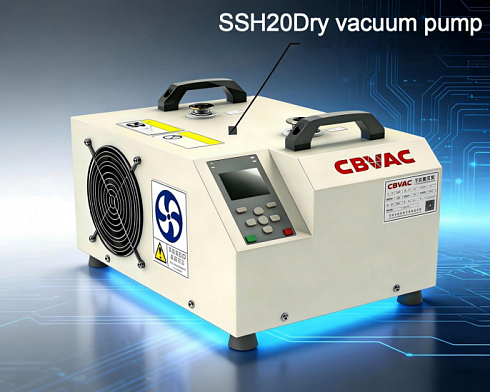

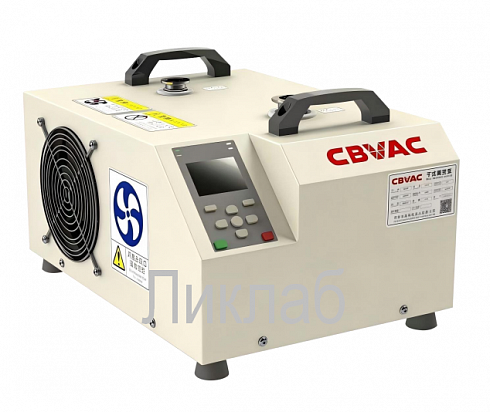

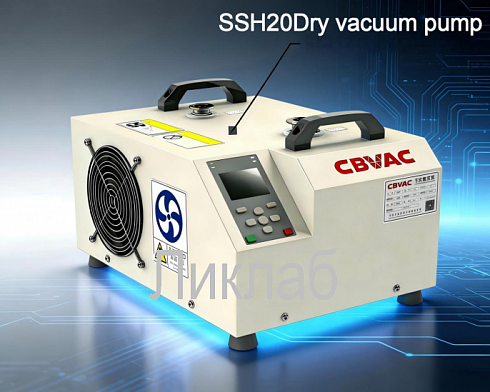

CBVAC SSH20 Compact Dry Screw Vacuum Pump

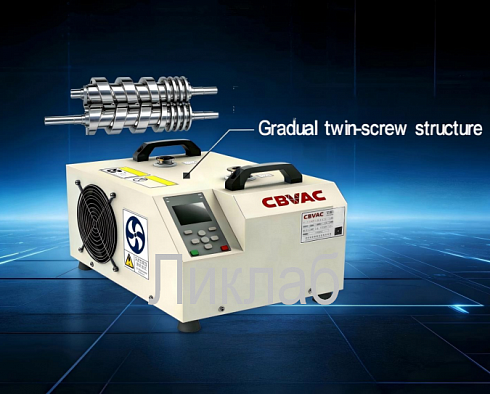

The SSH20 is a compact twin-screw dry pump for laboratory instruments, analytical systems and clean forevacuum service. Its pumping chamber operates without oil sealing, while bearings, gears and other non-process components must still be maintained according to the manual.
| Nominal pumping speed | 21.6 m³/h |
|---|---|

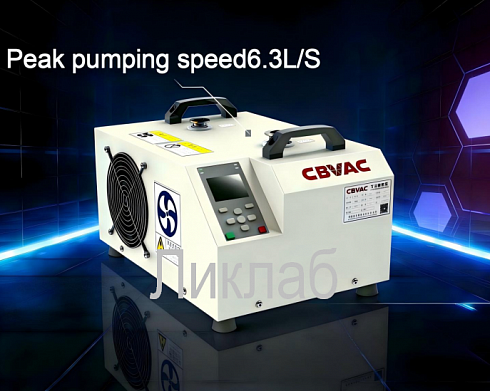

| Peak pumping speed stated in source record | 6.3 L/s |

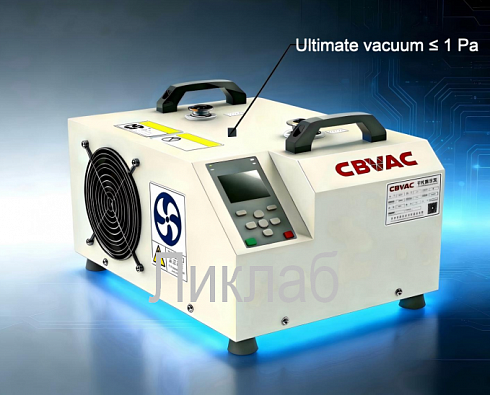

| Stated ultimate pressure | <1 Pa |
| Inlet / exhaust | KF25 / KF16 |
| Controller | Integrated |
| Electrical supply | Single-phase 220 V |
| Nominal rotor speed | 6,800 rpm |
| Nominal power | 750 W |
| Cooling | Air |

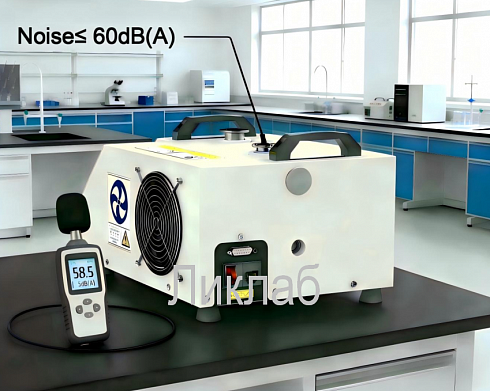

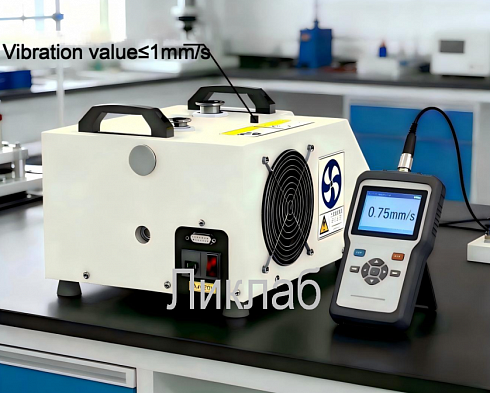

| Noise / vibration stated in source record | <60 dB(A) / ≤1 mm/s |
| Ambient temperature | −10 to +40 °C in the source record |

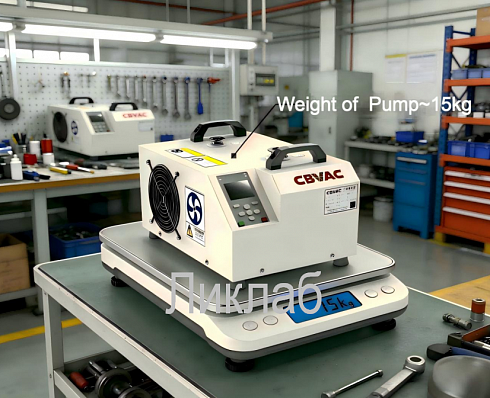

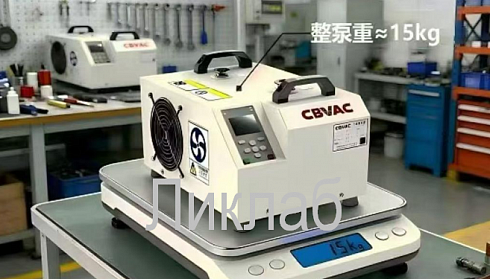

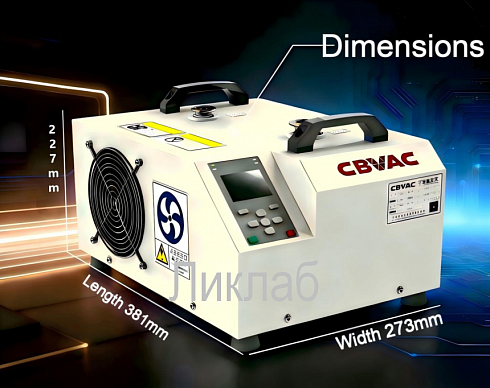

| Dimensions / weight | Approximately 381 × 273 × 227 mm / 15 kg |
The source title used the typo “SHH20”; current CBVAC materials identify the model as SSH20. Compatibility with water vapor, solvents, corrosive, flammable or particle-laden gases must be confirmed for the actual duty.
Specify inlet pressure, duty cycle, gas composition, vapor load, exhaust routing, power, orientation, controller interface and service interval before ordering. Dry pumping does not eliminate the need for safe ventilation or process-specific protection.
